Product Details:
|
| HDMI Input Interface: | 1x HDMI（HDMI 1.4） | HDMI Output Port: | 9x HDMI |
|---|---|---|---|
| Resolution: | 4k*2k 60Hz (YUV 4:2:0) | Rotation: | Support |
| Cascade: | Support | Warranty Time: | 2 Years |
| Highlight: | 3x3 HDMI Video Wall Processor,3x3 Video Wall Processor,3x3 Video Wall Controller |
||
4k*2k 60Hz 3x3 HDMI Video Wall Processor With HDMI 1 Input 9 Output
3X3 4K HDMI video wall processor with 1 input and 9 output
1. Overview
There is a "mode" setting button on the front of the splicer to set the splicing mode of the screen. Press the "mode" button,
you can cycle through 2X2,1X2,1X1 and other splicing display modes. Pre installed remote control interface,
you can purchase remote control to set splicing mode.
2. Specification
| HDMI Input | ||
| Interface | HDMI(HDMI 1.4) | |
| Resolution | Up to 3840X2160@30Hz | |
| Color | 24bit,16.77M | |
| Output | ||
| HDMI Interface | HDMI(HDMI 1.4) | |
| Splicing output resolution | Up to 3840x2160 / 30Hz (4K interpolation effect) | |
| Color | 24bit,16.77M | |
| Audio output | 3.5mm stereo socket | |
| Other | ||
| control mode | Mode selection button, COM port command control splicing mode, remote control splicing control (optional) | |
| Power Supply | DC12V 2A power adapter | |
| Specifications | ||
| 4-Channel model | Size | 310mm x 104mm x 28mm |
| Weight | 1.37kg (Including accessories) | |
| 6-Channel model | Size | 360mm x 102.7mm x 47mm |
| Weight | 1.95kg(Including accessories) | |
| 8-Channel model | Size | 360mm x 102.7mm x 47mm |
| Weight | 1.96kg(Including accessories) | |
| 10-Channel model | Size | 360mm x 102.7mm x 47mm |
| Weight | 2.10kg(Including accessories) | |
| 12-Channel model | Size | 360mm x 102.7mm x 47mm |
| Weight | 2.11kg(Including accessories) | |

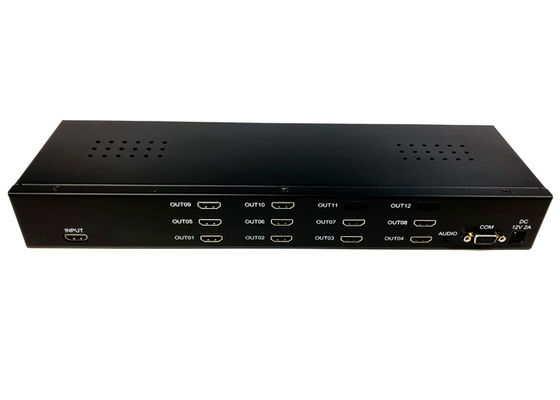

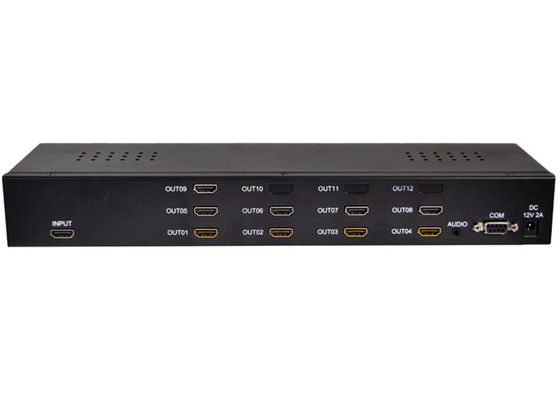

3. Products' picture:
