Product Details:
|
| HDMI Input Interface: | 1x HDMI（HDMI 1.4） | HDMI Output Port: | 9x HDMI |
|---|---|---|---|
| Size: | 360mm X 102.7mm X 47mm | Weight: | 880g |
| Power Supply: | DC12V 2A Power Adapter | Color: | Black |
| Highlight: | DC12V HDMI Video Wall Processor,2A Video Wall Processor,DC12V HDMI Video Processor |
||
4K 1 IN 9 OUT HDMI Video Wall Processor DC12V 2A Power Adapter
4K 1 IN 9 OUT video wall processor
1. Overview
There is a "mode" setting button on the front of the splicer to set the splicing mode of the screen. Press the "mode" button,
you can cycle through 2X2,1X2,1X1 and other splicing display modes. Pre installed remote control interface,
you can purchase remote control to set splicing mode.
2. Multiple wall modes
2X2 mode screen connection reference diagram
2X4 mode screen connection reference diagram
3X3 mode screen connection reference diagram
3. Specification
| HDMI Input | ||
| Interface | HDMI(HDMI 1.4) | |
| Resolution | Up to 3840X2160@30Hz | |
| Color | 24bit,16.77M | |
| Output | ||
| HDMI Interface | HDMI(HDMI 1.4) | |
| Splicing output resolution | Up to 3840x2160 / 30Hz (4K interpolation effect) | |
| Color | 24bit,16.77M | |
| Audio output | 3.5mm stereo socket | |
| Other | ||
| control mode | Mode selection button, COM port command control splicing mode, remote control splicing control (optional) | |
| Power Supply | DC12V 2A power adapter | |
| Specifications | ||
| 4-Channel model | Size | 310mm x 104mm x 28mm |
| Weight | 1.37kg (Including accessories) | |
| 6-Channel model | Size | 360mm x 102.7mm x 47mm |
| Weight | 1.95kg(Including accessories) | |
| 8-Channel model | Size | 360mm x 102.7mm x 47mm |
| Weight | 1.96kg(Including accessories) | |
| 10-Channel model | Size | 360mm x 102.7mm x 47mm |
| Weight | 2.10kg(Including accessories) | |
| 12-Channel model | Size | 360mm x 102.7mm x 47mm |
| Weight | 2.11kg(Including accessories) | |

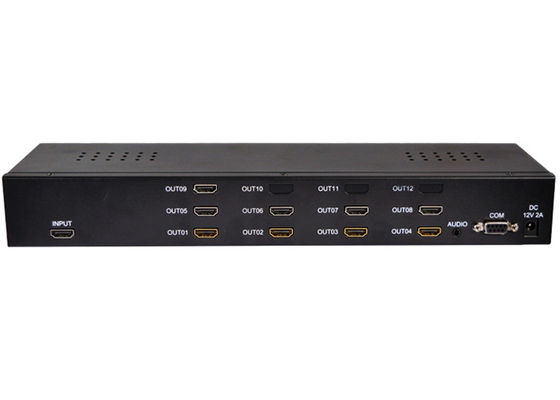

4. Products' picture:
