Product Details:
|
| Product Name: | 1 In 6 Out Video Wall Processor With 2x3 , 3x2 , RS232 | Audio: | 3.5 Audio Interface,support Left And Right Channels And Stereo,AV Signal Switch Synchronously |
|---|---|---|---|
| Power: | 20W | Dimensions(1U): | 1U 19 Inch Standard Crate,442mm(L)*45mm(H)*242mm(W) |
| Weight(1U): | 2.5KG | Color: | Black |
| Highlight: | RS232 Video Wall Processor,3x2 Video Wall Processor,RS232 Video Wall Controller 2x3 |
||
1 In 6 Out 2x3 3x2 RS232 Video Wall Processor 3.5 Audio Interface
1 In 6 Out Video Wall Processor With 2x3 , 3x2 , RS232
1, Product introduction:
Product can be control by infrared remote control,case button control or RS-232 , which user can master it more easily and intuitively while operate it. It as well more humanization and simple for user can one-click quick control and global function control by IR or case button.
2, Function Introduction:
1, USB transmit function
Product can support USB transmit and joint function.After finishing LCD joint basic function,user can set merely video or image joint pattern play.It's simple and useful,no need extra allocation a computer or other broadcast equipment,only we need to do is insert a U disk at USB interface in our product multi-sceen process.
2, Key Function

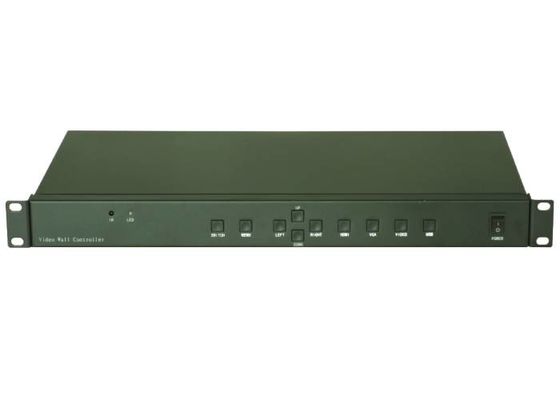

Case key press
3, Remote control function
Remote control is exclusive customization for TK-BOX,multi-screen processor's each function is completely in conformity with remote keying and market can't buy it.Remote cotroller adopt super-sensitive design,so it's distance attainability 7 to 10 meters,and it can fulfill all functions of multi-screen processor,such as settings,switch,adjust.As the following picture shows:
3, System Topology
