Product Details:
|
| HDMI Input Interface: | HDMI（HDMI 1.4） | HDMI Input Resolution: | Up To 3840X2160@30Hz |
|---|---|---|---|
| HDMI Input Color: | 24bit,16.77M | HDMI OUTPUT Interface: | HDMI（HDMI 1.4） |
| Splicing Output Resolution: | Up To 3840x2160 / 30Hz (4K Interpolation Effect) | Color: | 24bit,16.77M |
| Highlight: | 2X2 HDMI 1.4 Processor,4k 2x2 Video Wall Controller,HDMI 1.4 Video Processor Video Wall |
||

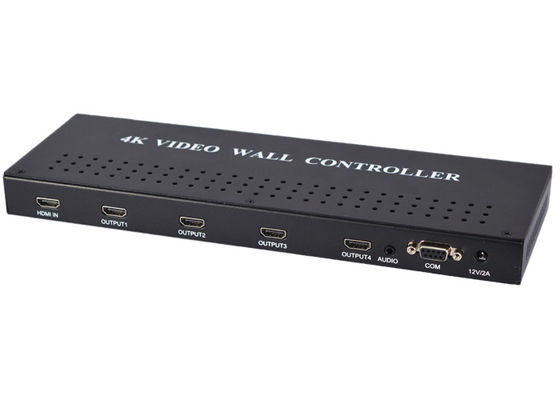

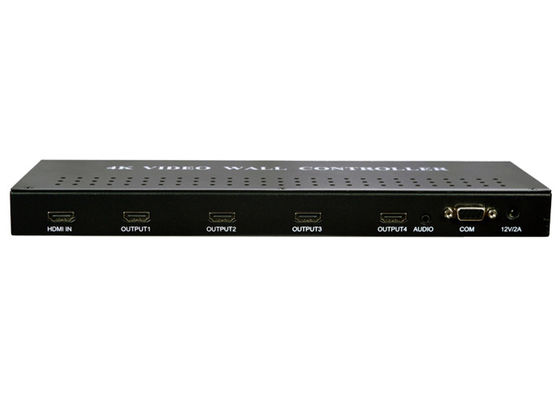

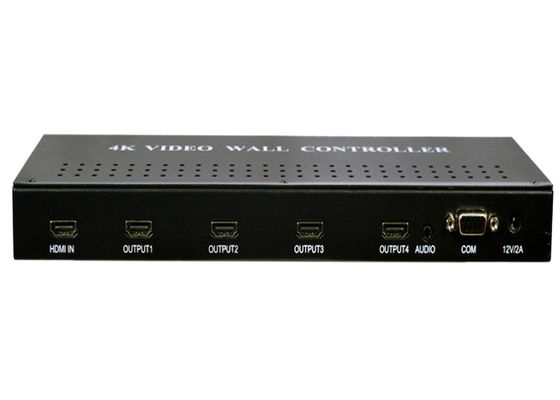

1 IN 4 OUT 4K HDMI 1.4 Processor 2X2 1X2 2X1 1X3 3X1 1X4 4X1 Modes
4K 1 IN 4 OUT video wall processor
1. Overview
TV splicer supports 4K_ 30Hz (3840X2160) signal, The following output splicing modes can be set:
4-Channel model:2X2, 1X2, 2X1, 1X3, 3X1, 1X4, 4X1.
8-Channel model: 2X3, 3X2, 2X4, 4X2, 1X5, 5X1, 1X6, 6X1.
12-Channel model: 3X3, 2X5, 5X2, 3X4, 4X3, 3X4, 2X6, 6X2.
16-Channel model: 2X7, 7X2, 8X2, 2X8, 4X4.
2. Dimension(Unit: mm)
4- Channel model size
6- Channel/8- Channel/10- Channel/12- Channel model size
3. Specification
| HDMI Input | ||
| Interface | HDMI(HDMI 1.4) | |
| Resolution | Up to 3840X2160@30Hz | |
| Color | 24bit,16.77M | |
| Output | ||
| HDMI Interface | HDMI(HDMI 1.4) | |
| Splicing output resolution | Up to 3840x2160 / 30Hz (4K interpolation effect) | |
| Color | 24bit,16.77M | |
| Audio output | 3.5mm stereo socket | |
| Other | ||
| control mode | Mode selection button, COM port command control splicing mode, remote control splicing control (optional) | |
| Power Supply | DC12V 2A power adapter | |
| Specifications | ||
| 4-Channel model | Size | 310mm x 104mm x 28mm |
| Weight | 1.37kg (Including accessories) | |
| 6-Channel model | Size | 360mm x 102.7mm x 47mm |
| Weight | 1.95kg(Including accessories) | |
| 8-Channel model | Size | 360mm x 102.7mm x 47mm |
| Weight | 1.96kg(Including accessories) | |
| 10-Channel model | Size | 360mm x 102.7mm x 47mm |
| Weight | 2.10kg(Including accessories) | |
| 12-Channel model | Size | 360mm x 102.7mm x 47mm |
| Weight | 2.11kg(Including accessories) | |
4. System Topology
