Product Details:
|
| Model:: | WL -EMX 2000-S (E 4922) | Resolution:: | 3840x 2160@30Hz |
|---|---|---|---|
| Material Quality: | Alloy Material (supporting Radium Carving) | Length, Width And Height: | 212.0mm × 145.0mm ×44 Mm .0 |
| Net Weight: | 1010g | Power Interface: | DC 12V 2A Enter It |
| Highlight: | Multi-pictures KVM Boxes,KVM Input and Output Boxes,4K Video over IP KVM Boxes |
||
4K video over IP Multi-pictures KVM input boxes and output boxes
Specification:
|
4K video over IP Multi-pictures KVM input boxes and output boxes |
|
| name | 4K multi-picture KVM codec integrated machine |
| model | WL -EMX 2000-S (E 4922) |
|
major function |
1. The HDMI interface supports up to 3840x 2160@30Hz input and output. 2. The maximum support on the network side is 3840x 2160@30Hz coding. 3. The maximum network side support is 3840x 2160@30Hz decoding. 4. The working mode is divided into encoding mode, decoding mode, KVM mode and forwarding mode. 5, the encoding mode supports one-to-many. 6, decoding mode supports single screen multi- screen and picture splicing display, decoding resolution and HDMI resolution are 1080P, the maximum decoding 16 times 720 * 576@30Hz. 7. Decoding mode : support LCD and LED splicing, and the maximum splicing ranks is 12 * 16 splicing wall. 8, KVM mode, support mouse and keyboard control input source, such as computer, set-top box. 9, forward mode, support IPC and other RTSP flow preview and one-to-many. Unite screen output. 10, various modes can be RS 232 serial port, IO, infrared external equipment control. |
|
4K video over IP Multi-pictures KVM input boxes and output boxes |
|
| material quality | Alloy material (supporting radium carving) |
| Leng, width and height | 212.0mm × 145.0mm ×44 mm .0 |
| Net weight | 1010g |
|
pilot lamp |
1 x PWR lamp : the power supply indicator lamp 1 x ETH lamp : the network indicator lamp 1 x HDMI lamp : HDMI interface indicator lamp 1 x ACT lamp : CPU and temperature indicator lamp |
|
4K video over IP Multi-pictures KVM input boxes and output boxes |
|
| Video input interface | 1-way Type-A HDMI input, 19P head |
|
Video output / loopback interface |
1-way Type-A HDMI output, 19P head |

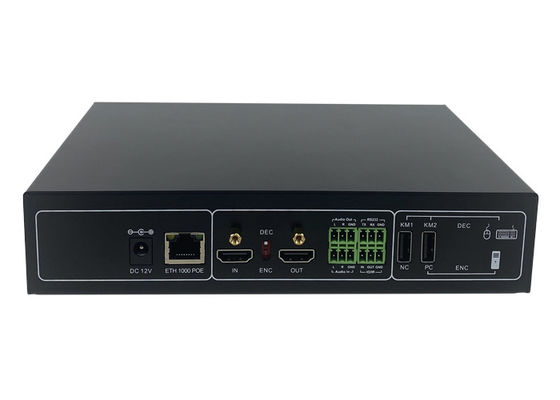

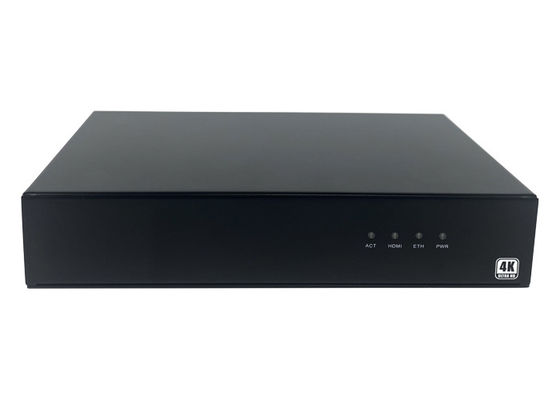

Products' picture:
