Product Details:
|
| Panel Type: | Industrial LCD Panel A+ Grade | Aspect Ratio: | 16:10 |
|---|---|---|---|
| Resolution: | 1280*800 | Contrast: | 1000:1 |
| Response Time: | 5ms | Display Colors: | 16.7M |
| Product Name: | 10.1 Inch Vehicle-Mounted Terminal Panel PC Android 7.1 OS | ||
| Highlight: | Vehicle Mounted Terminal 1280x800,Android 7.1 Vehicle Mounted Terminal,Car Mounted PC 1280x800 |
||

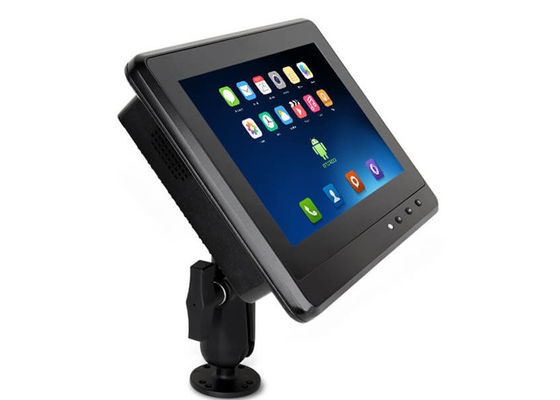

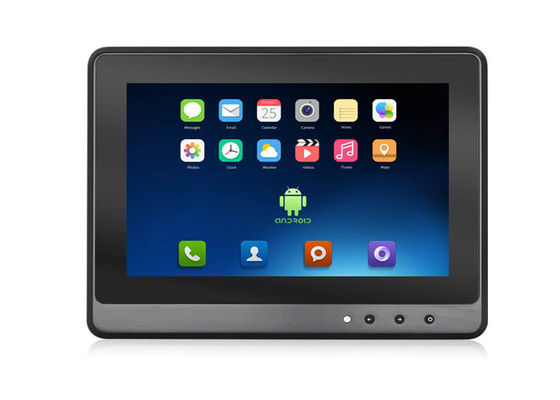

10.1 inch Vehicle Mounted Terminal Panel PC Android 7.1 OS
Product introduction :
With the 10.1 inch Vehicle-Mounted Terminal Panel PC Android 7.1 OS, you can give operators in material handling vehicles,
cranes, and mining trucks easy access to the desktop applications and get the fastest wireless connections to complete tasks
more accurately and efficiently. It is easy to install on forklifts, clamp trucks, yard mules, cranes for the warehouses and distribution
centers to seaports, airports, railway yards, and other indoor and outdoor environments.
1. Display size: 10.1", 1280x800 resolution.
2. System: Android 7.1.
3. Abundant interfaces, compatible with 99% of the industry software.
4. Multi-touch capacitive touch screen.
5. 12~36VDC power input.
6. Optional CAN interface for vehicle connection.

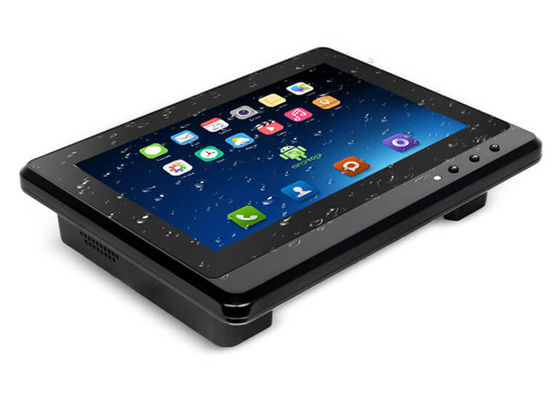

7. IP65 Dust/ Waterproof design.
8. Working temperature:-10-60°C.
9. Industrial-grade motherboard, anti-static.
10. Brightness control buttons.
11. Support 24/7 long-time operation.
12. Specifically built for vehicle-mounted environments.
13. OEM/ODM custom design by request.
14. Fanless design.
15. 10.1 inch Vehicle-Mounted Terminal Panel PC Android 7.1 OS
Specification :
| 10.1 inch Vehicle-Mounted Terminal Panel PC Android 7.1 OS | ||||||||
| Size | 10.1 inch | |||||||
| Model | JWS101-A-CZ | |||||||
| Panel Type | Industrial LCD panel A+ grade | |||||||
| Aspect Ratio | 16:10 | |||||||
| Resolution | 1280*800 | |||||||
| Contrast | 1000:1 | |||||||
| Luminance | 300nit | |||||||
| Response time | 5ms | |||||||
| Display colors | 16.7M | |||||||
| View angle | 85/85/85/85 (L/R/U/D) | |||||||
| PC Configuration | ||||||||
| CPU | RK32800, Quad-core, 1.8GHz (RK3399, Six-core, 2.0GHz optional) | |||||||
| Graphics Card | Integrated Intel HD Graphics | |||||||
| Inner memory | 2G DDR3 RAM ( 4G/8G RAM optional) | |||||||
| Storage | 16G eMMC (32G/64G optional) | |||||||
| Operating System | Android 7.1 | |||||||
| Support multi-language | English/Portuguese/French…etc | |||||||
| Touch Screen | Capacitive/Resistive | |||||||
| I/O Ports | ||||||||
| DC Port | 1*waterproof aviation connector (GX12-3 core) | |||||||
| USB 2.0 | 1*waterproof aviation connector (GX12-4 core) | |||||||
| COM | 2*waterproof aviation connector (GX12-4 core) | |||||||
| Power Input | AC 110-240V, 50/60Hz | |||||||
| Environment | ||||||||
| Operation Temperature | -10°C~60°C | |||||||
| Storage Temperature | -30°C-60°C | |||||||
| Operation Humidity | 10%-80% | |||||||
| Storage Humidity | 10%-90% | |||||||
| Material | Aluminum alloy enclosure | |||||||
| IP Rating | IP65 standard seamless front | |||||||
| Color | Black, silver | |||||||
| Installation Way | VESA, Embedded, Wall Mount, Desktop optional | |||||||
| Certification | CE,FCC,ROHS,ISO | |||||||
| Packaging | EPE+Carton | |||||||
| Product name | 10.1 inch Vehicle-Mounted Terminal Panel PC Android 7.1 OS | |||||||
Our case of the 10.1 inch Vehicle-Mounted Terminal Panel PC Android 7.1 OS:
