Product Details:
|
| Display Size:: | 8 Inch | Panel Type: | Industrial LCD Panel A+ Grade |
|---|---|---|---|
| Aspect Ratio: | 4:3 | Resolution: | 1024*768 |
| Contrast: | 800:1 | Luminance: | 300nit-1500nit |
| Response Time: | 5ms | Active Area (mm): | 227*131 |
| Display Colors: | 16.7M(8-bit) | View Angle: | 80/80/80/80 |
| Product Name: | 8 Inch Industrial Touchscreen Panel PC CE RoHS Approved | ||
| Highlight: | 8 Inch Industrial Touchscreen Panel PC,RoHS Industrial Touchscreen Panel PC,CE IP65 Touch Screen PC |
||

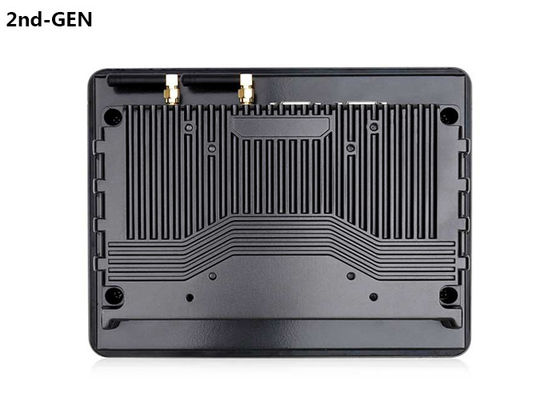

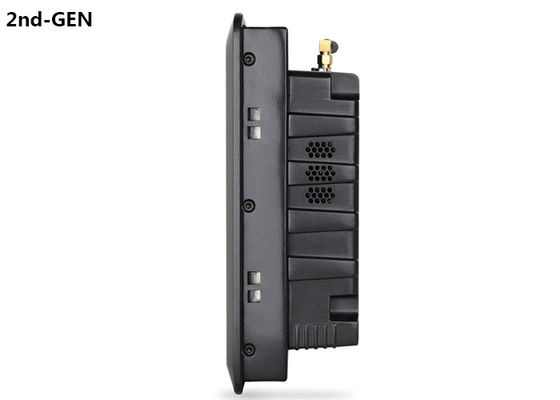

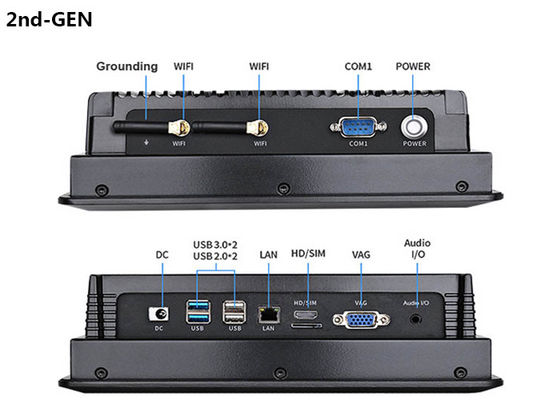

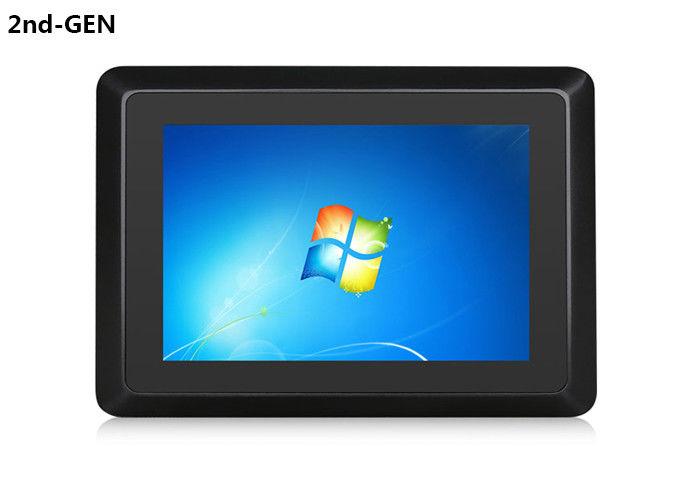

8 Inch Industrial Touchscreen Panel PC CE RoHS Approved
1. Introduction
The 2ne Gen Industrial series of our companyadhere to the consistentindustrial standards, including three categories of
products:industrial monitor, industrialmini PC, industrialandroid all-in-onepanel PC,7"-21.5"optional.Thewhole Panel
adopts an ultra-thin frame that is more sultable for embedded installation, an all-aluminum alloy structure,and fanless fully
enclosed design to meet the needs of differentequipment in different environments. Compact size, low powerconsumption,
and more attention to reliability, multi-environment practicability, real-time and scalability in terms of materials, industrial
products designed specifical for multiple environments and is widely used in industrial control, military, communications,
High-end automationfieldssuchas electricity, bigdata,and theInternet.
2. Installation method for 8 Inch Industrial Touchscreen Panel PC CE RoHS Approved :
3: Overall features:
3.1. Damp-proofand anti-corrosion :
The motherboard paint conformal coating:with the function of moisture-proof, anti-leakage,dust-proof,
anti-corrosion,Anti-aging,corona resistance and soon;
3.2. IP65 Waterproof and shockproof :
Theinternal parts of Panel PC are fixed bycombined screws,which effectively reduce vibration and the
bodyisequipped with waterproofrubber strip ;
3.3. Lightning protection of the Industrial Touchscreen Panel :
The motherboard is equipped with conductivecapacitors,which can effectively guide lightning to conductive capacitor,
protect the main board of the Panel PC;
3.4. Anti-static :
Standard:Portcontact4KV air8KV,
Custom:port contact 6KV air 16KV
3.5. Excellent resistance to high temperature:
Use industrial gradewide temperature motherboard,support 10°to60°℃ wide temperature operation;
Customultra-widetemperature:20℃~70℃;
3.6 EM/EMClevel anti-interference standard of the Industrial Touchscreen Panel :
Themotherboard adopts active ESD protection circuitdesign,with anti-interference and anti-magnetic design;
3.7 Withstand voltage:
Withover-current,over-voltage and reverse connection protection measures,solid-statefilteringin the board,
Capacitorwithstand voltage 36V105 degrees .
3.8 Anti-surge :
High protection anti-surge,if voltage rises 280Vinstantly, Panel PCand Adapter will operatestably;
4. Our applications of Industrial Touchscreen Panel PC :
