Product Details:
|
| Processor CPU: | 32 Bit Samsung ARM Microprocessor | Processor Processing Speed: | 210MIPS |
|---|---|---|---|
| Extended Memory: | Expandable To 32M | Network Interface: | 1 RJ11 6PIN Interface,to Expand The SPORT And WPORT |
| Expansion Slot: | 2 Multi-function Expansion Slots,supports All The Expansion Card | Weight: | About 2.8kg |
| Highlight: | Metal Chassis Programmable Control System,8M SDRAM Programmable Control System,2M Flash Programmable Controller System |
||
Programmable Controller System
Introduction :

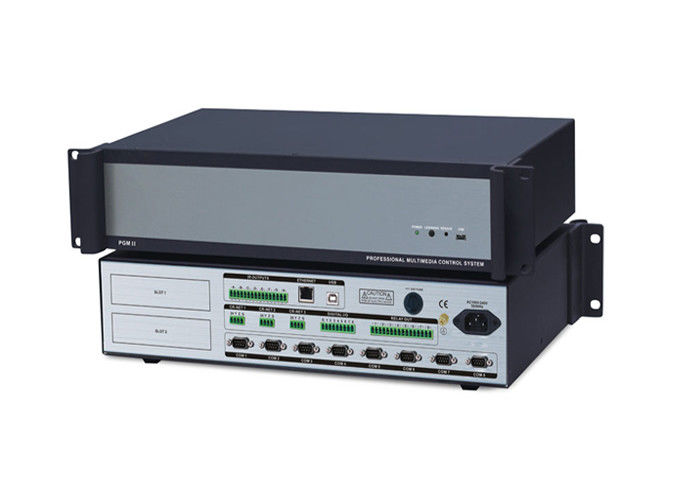

WL-CRMII is the new generation of main control system. Using the advanced integrated technology, it provides
high speed precise control environment, a variety of programmable control interface and open user
programming environment, so as to complete complex control interface programming.
Features
1. 32 bit embedded processor allocation frequency reaches 210MHz,built-in 8M memory and 2M memory FLASH,
can run complex logic instruction cache.
2. Provide open programmable control platform, humanized Chinese operation interface and interactive control structure.
3. Powerful built-in programmable interface makes programmable central control computer can control almost all of the
external equipment (including the third party equipment).
4. The user can establish its own infrared code database, also can download the latest infrared code from the CREATOR
library website, can realize infrared logic control of pair of codes by one key.
5. Support 1, 3 road CR-NET control bus, can be extended up to 32 network equipment (such as: touch screen, dimmer,
power controller, volume control, etc.).
6. Built-in IR learning function.
7. The metal chassis design, in line with international standards, can be installed in any chassis, cabinets of 19 ".
8. Through the expansion of Ethernet control interface to realize computer remote control.
Specification:
| The parameter name WL-CRMII | ||
| Processor | CPU | 32 bit Samsung ARM microprocessor |
| Processing speed | 210MIPS | |
| Memory | Standard memory | 8M SDRAM,2M Flash |
| Extended memory | Expandable to 32M | |
| Control port | COM port | 8 male type DB9 mouth,two-way transmission of RS-232,RS-485 and RS-422 signal |
| Infrared IR port | 8 terminal module,16PIN output pin | |
| I/O input port | 8 terminal blocks,9PIN output pin,with protection circuit,support 0-5V digital input signal | |
| Weak current relay port | 8 terminals,16PIN output pin,the normally open type independent relay,rated 1A/30V AC/DC | |
| Network interface | 1 RJ11 6PIN interface,to expand the SPORT and WPORT | |
| WL-NET | 3 terminal module,4PIN pin, support for WL-NET control bus, provides an output power of | |
| Expansion slot | 2 multi-function expansion slots,supports all the expansion card | |
| Computer management port | 1 MINIUSB1.1 (compatible with USB2.0) interface and 1 DB9 master port(rear panel) | |
| 1 MINIUSB (compatible with 20) interface(front panel) | ||
| Specifi-cations | The static power consumption | 4W |
| Power supply | AC100V-240V adaptive power supply | |
| Weight | About 2.8kg | |
Diagram:
Drawing
