Product Details:
|
| SDI Transmission Rates: | 2.970 Gbps, 1.485 Gbps | SMPTE Standard: | 425M Level A & B, 424M, 292M, 259M-C |
|---|---|---|---|
| SDI Cable Distance: | 3G/HD/up To 100/200 Meters With BELDEN 1694A Cable | HDMI Cable Distance: | 10 M, 8/12-bit |
| Power Consumption: | 5W | Dimensions: | 110mm (W)×288mm (D)×32 Mm (H) |
| Weight: | 750 G | Chassis Material: | Metal |
| Highlight: | 2.970Gbps HDMI Converter,5W HDMI Converter,1.485Gbps SDI Converter |
||
2.970Gbps HDMI Converter
ALL to SDI Scaler Converter
1. Introduction
The SDI to ALL Scaler Converter allows SD, HD and 3G-SDI signals to be shown on HDMI/DVI/VGA/Composite port display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on these display. Furthermore, thanks to L/R audio outputs users can output analog audio formats while the loop-through 3G-SDI design benefits users by letting them simultaneous show content on both SDI and HDMI/DVI/VGA/Composite port displays.
2. Features
Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection;
Supports HDMI/DVI/VGA/Composite and SDI (bypass) output simultaneously;
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s,
1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s;
Supports SDI input/output distance up to 100 meters (3G-SDI), 200
meters (HD-SDI), or 300 meters (SD-SDI);

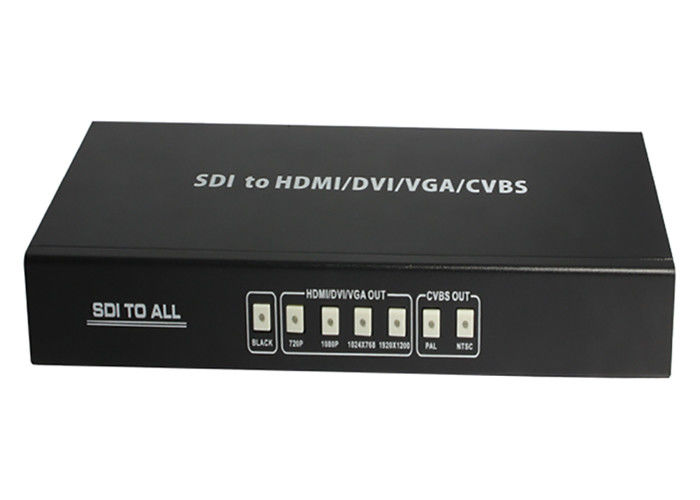

Scale any SDI signal to HDMI/DVI/VGA/Composite:
1. HDMI/DVI/VGA timings: 1280x720,1920x1080,1024x768,1920x1200;
2. Composite format: PAL,NTSC;
Supports SDI input modes:
1. SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
2. HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s)
3. 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and
2.970/1.001 Gbit/s)
Ø Supports Black screen signal output;
Ø Equalized and re-clocked loop output;
Ø Alternative audio output to analog 2CH;
Package Contents
SDI to ALL Scaler Converter 1pcs
12V/2.5A DC power adaptor 1pcs
Operation Manual 1pcs
3. Specification
SMPTE Standard ................................................425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates..................................... 2.970Gbps, 2.970/1.001Gbps,1.485Gbps,
1.485/1.001Gbps, and 270Mbps

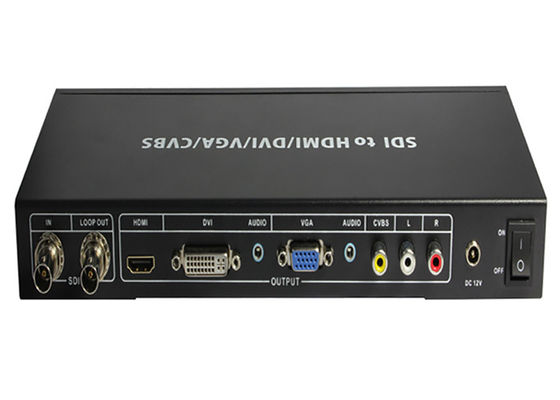

Input Port ...........................................................1×BNC (SD/HD/3G-SDI)
Output Port ...........................................................1×BNC (SD/HD/3G-SDI bypass),
1×HDMI (Type A connector),
1×DVI with Audio
1x VGA with Audio
1×Composite with R/L
ESD Protection.................................................. Human-body Model:
±8kV (air-gap discharge)
±4kV (contact discharge)
SDI Cable Distance............................................. 3G up to 100m (BELDEN 1694A Cable)
HD up to 200m (BELDEN 1694A Cable)
SD up to 300m (BELDEN 1694A Cable)
Dimensions.......................................................... 110mm (W)×288mm (D)×32mm (H)
Weight ........................................................................750g
Chassis Material......................................................... metal
Operating Temperature.............................................. 0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature.................................................. −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity........................................................ 20~90% RH (Non-condensing)
Power Consumption .........................................................5W
