Product Details:
|
| Product Name:: | Industrial Touchscreen Computer Fanless Panel PC Windows 10 | Size: | 10.1 Inch To 21.5 Inch |
|---|---|---|---|
| Panel Type: | Industrial LCD Panel A, A+grade | Response Time: | 5ms |
| Active Area (mm): | 250*188.4 | CPU: | Intel Celeron J1900 Fanless, Intel I3/i5/i7 Can Be Customized |
| Highlight: | Fanless Industrial Touchscreen Computer,RoHS Industrial Touchscreen Computer,Windows 10 Fanless Touch Screen PC |
||

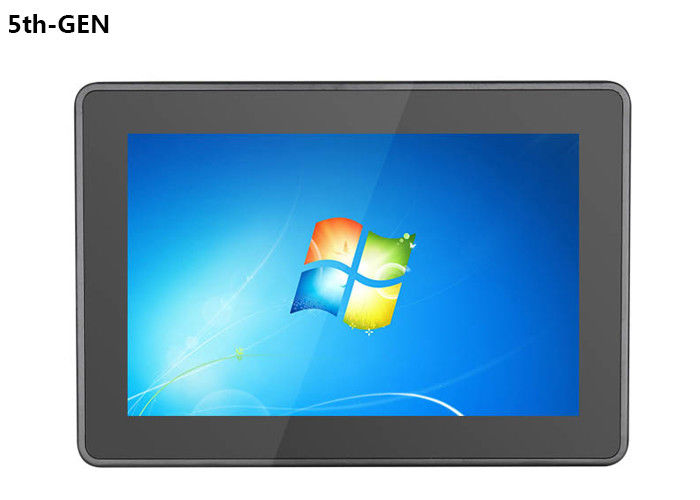

Industrial Touchscreen Computer Fanless Panel PC Windows 10
Product introduction :
Thefifth-generation new product series of our company has three categories of products:industrial Android all-in-one,
x86all-in-one,and industrialmonitor.7"-21.5" multiple sizes are available,Meet the needs of different product forms in
different environments and different installation methods.All aluminum alloy body,Fullyenclosed fanless design,Compact
appearance,Designed for a variety of complex environments,it can ensure long-term stable work in harsh environments;
The material used for the whole machine pays more attention to its reliability, multi-environment adaptability,real-time scalability,
and EMC compatibility,It is widely used in high-end automation fields such as industrial control, military industry, communication,
electric power,and network.
Product size of the Industrial Touchscreen Computer Fanless Panel PC Windows 10 :
Specification:
| Size | 10.1 inch to 21.5 inch | |||||||
| Display | ||||||||
| Panel Type | Industrial LCD panel A, A+grade | |||||||
| Luminance | 300nit-1500nit | |||||||
| Response time | 5ms | |||||||
| Active Area (mm) | 250*188.4 | |||||||
| Display colors | 16.7M(8-bit) | |||||||
| View angle | 75/75/75/75 | |||||||
| PC Configuration | ||||||||
| CPU | Intel Celeron J1900 fanless, Intel i3/i5/i7 can be customized | |||||||
| Graphics Card | Integrated Intel HD Graphics | |||||||
| Inner memory | 2G DDR3 RAM ( 4G/8G RAM can be customized) | |||||||
| Storage | 32G SSD (64G/128G/256G SSD, 500G HDD can be customized) | |||||||
| Expansion Card Slot | 2xMini-PCIe slot, support SSD, WIFI, 3G module | |||||||
| Audio | Realtek ALG662 6 soundtrack audio frequency | |||||||
| Internet | 1xRTL811E gigabit network card | |||||||
| Operating System | Pre-installed Win7, and offer Win8, 10 for optional | |||||||
| Support multi-language | English/Portuguese/French…etc | |||||||
| Touch Screen | 10-point capacitive touchscreen, 5 wire resistive touchscreen, and infrared touch optional | |||||||

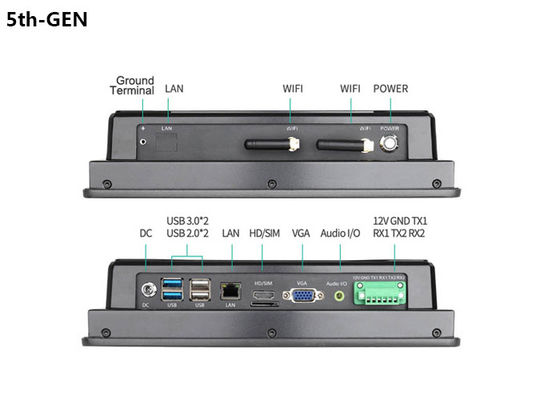

| I/O Ports | 1*12V DC_JACK input (ATX is optional) , 1*VGA,1*HDMI, 4*USB port | |||||||
| 1*RJ-45 network interface, 1*Audio I/O interface, 2*COM (can be customized, up to 4*COM) | ||||||||
| Power Input | AC 110-240V, 50/60Hz | |||||||
| Operation Temperature | -10°C-60°C | |||||||
| Storage Temperature | -30°C-60°C | |||||||
| Operation Humidity | 10%--80% | |||||||
| Storage Humidity | 10%-90% | |||||||
| Material | Aluminum alloy enclosure+High Strength Cold Rolled Steel | |||||||
| Front Bezel Thickness | 7mm (2nd-GEN 3mm bezel, 4th-GEN 10mm bezel optional) | |||||||
| IP Rating | IP65 standard seamless front | |||||||
| Color | Silver, Black | |||||||
| Installation Way | VESA, Embedded, Wall Mount, Desktop optional | |||||||
| Certification | CE,FCC,ROHS,ISO | |||||||
| Packaging | EPE+Carton (wooden crate for mass order) | |||||||
| Product name | Industrial Touchscreen Computer Fanless Panel PC Windows 10 | |||||||

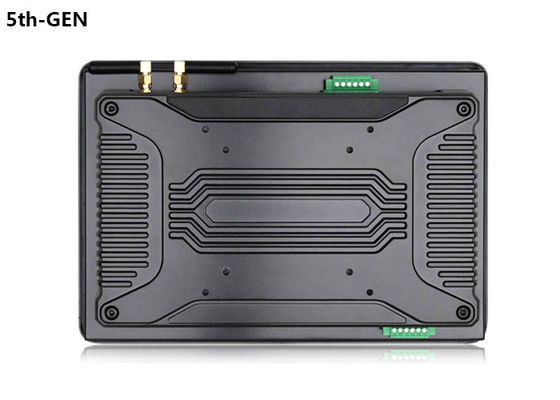

Installation method of the Industrial Touchscreen Computer Fanless Panel PC Windows 10 :
