Product Details:
|
| Memory: | 256M DDR-RAM,1G FLASH | CR-NET,CR-LINk And Ethernet(TCP/IP): | Yes |
|---|---|---|---|
| Infrared Independent Emission Port: | 8 | Digital I/O Port: | 8 |
| Weak Current Relay Interface: | 8 | Power Waste: | 5 W |
| Product Name: | High Performance Network Programmable Controller System | ||
| High Light: | USB2.0 Interface Programmable Control System,ARM11 CPU Programmable Control System,ARM11 CPU Programmable Control Unit |
||

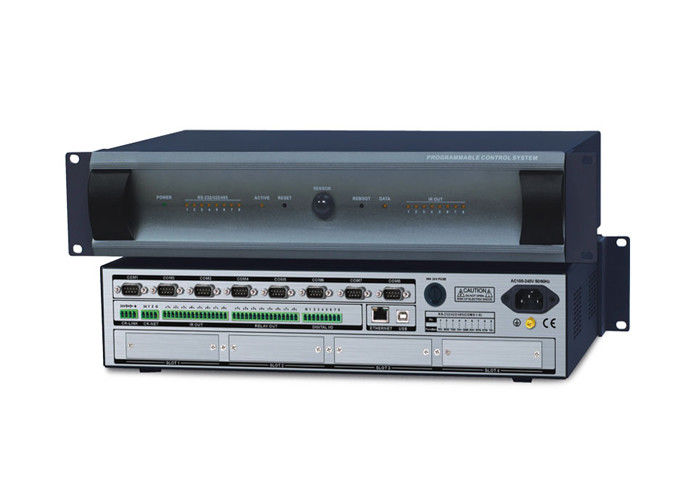

High Performance Network Programmable Controller System
Introduction :
WL-CRMIII High performance network programmable controller system is a network communication controller as a result of CREATOR’s independent research and development.
The frequency of 32 bit embedded processor is up to 667MHz, with ARM11CPU, 256M RAM, 1G Flash memory.
Features
1. ARM11 CPU, 256M ram, 1G Flash memory.
2. Using 32 bit embedded processor with 667M frequency.
3. 8 independent programmable infrared transmission interfaces, support controlling many sets of the same or different infrared equipments.
4. 8 independent programmable RS-232/422/485 control interfaces, user programmable Multiple control protocols and codes.
5. 8 weak relay interfaces.
6. 8 digital input / output IO interfaces.
7. Two kinds of network communication: CR-LINK, CR-NET, Ethernet.
8. USB2.0 programming interface.
9. Embedded infrared learning device, convenient debugging and maintenance.
10. Support local and remote control.
11. The international general wide voltage (AC100 - 240V), can be wildly applied in any countries and regions.
12. High performance network programmable controller system.
Specifications:
| The parameter name | WL-PGMIII High performance network programmable controller system |
| Memory | 256M DDR-RAM,1G FLASH |
| CR-NET,CR-LINk and Ethernet(TCP/IP) |
Yes |
| Infrared independent emission port | 8 |
| Digital I/O port | 8 |
| Weak current relay interface | 8 |
| RS-232/422/485 serial communication | 8 |
| The USB interface | 1 |
| Extension socket | Yes |
| Grounding hole | Yes |
| Weight | About 4.5kg |
| Power waste | 5 W |
| Power supply | Adaptive AC 110-240 V |
Diagram
Drawing
