Product Details:
|
| Maximum Length: | Up To 100m | Power Consumption:: | 250mW (max) |
|---|---|---|---|
| Plug And Play: | Support | Reduced EMI And RFI: | Compatible |
| EDID, CEC, HDCP (2.2), HDR (High Dynamic Range): | Support | Resolutions: | 4K@60Hz (color Space 4:4:4),and Deep Color |
| Connection Type: | HDMI D To HDMI D | ||
| High Light: | 200CU 4k HDMI Fiber Optic Cable,RoHs HDMI Fiber Optic Cable,100m HDMI 2.0 Cable |
||

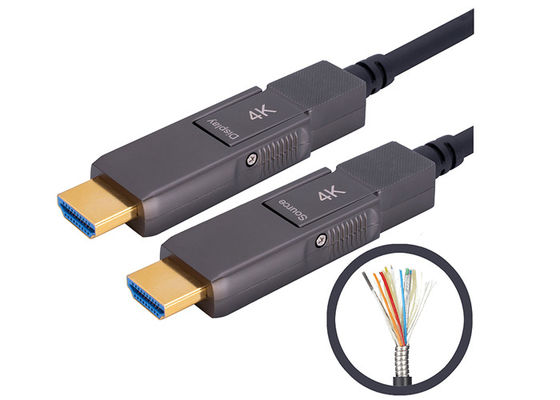

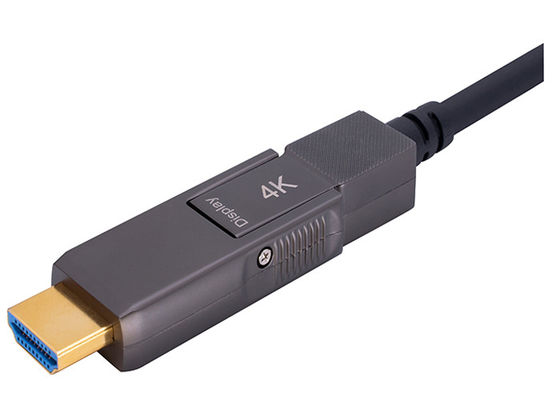

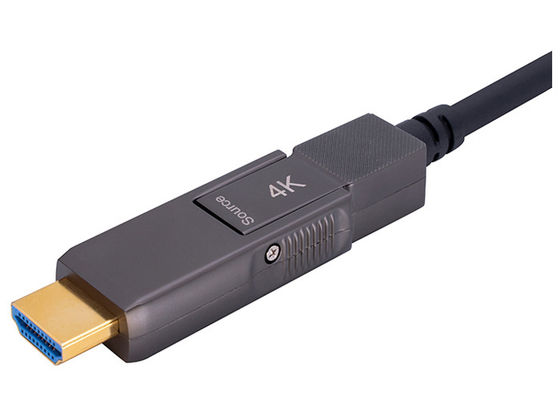

Armored Active 200CU 4k HDMI Fiber Optic Cable Type D To Type D
Armored HDMI 2.0 D-D Active Optical Cable
Features:
◆ 200CU stainless steel construction;
◆ Up to 100m Maximum Length. (Custom Length Available);
◆ Low Power Consumption: 250mW (max);
◆ Plug and Play;
◆ Compatible with HDMI 2.0 standard;
◆ Support HDCP1.4/2.2;
◆ Support ARC up to 100m;
◆ Self-detecting function for EDID information;
◆ No loss of signal – delivering crystal clear digital images instantly;
◆ Supports computer resolutions to 1080P and 4K 2K(60P);
◆ Hybrid optical cable with fiber and copper wire;
◆ Crush Resistance: Long term100kg ; Short term 200kg.
Instruction :
Patent Detachable armored HDMI Active Hybrid Cable is the most competitive long reach HDMI interconnection solution on the market. With 200CU stainless steel construction, strong enough . It supports HDMI Data Rate 6Gbps per channel , total 18Gbps with flexible and ultra-small long-term bending radius (45mm) hybrid cable. With our advanced optical engine embedded. This HDMI Hybrid Cable provides full HDMI signal integrity, support up to 100m maximum length, plug and play. No external power required.
Specification :
| These active, optical, HDMI 2.0 cables are intended for applications where longer cable-run lengths than those obtainable with standard copper HDMI cables are required. They are also useful where the cable needs to pass through environments with high electrical interference. They offer a considerably more elegant and cost-effective solution for long cable runs than Cat5E cable with converter box systems. |
| Designed for rental and stage use, applications can include professional AV systems interconnection, indoor and outdoor kiosks as well as home theatre systems in larger houses. |
| These cables are 5.8mm in diameter with a TPU (thermoplastic polyurethane) jacket. Under the jacket, a layer of kevlar surrounds a flexible, stainless-steel conduit that protects the core of the cable against rodents. Additional Kevlar is placed between wires within the conduit for added strength. Good flexibility is maintained with a bend radius of 45mm. All lengths are terminated with HDMI type A connectors. No external power is required. |
| Cables are available in a range of lengths from 10 to 100 metres; 70, 80, 90 and 100 metre lengths are also available on a drum, and fitted with IP68 rated glands, with cap, to protect each HDMI connector when not in use. They support 18Gbps and 4K at 60Hz, with 48-bit colour-depth and 3D capabilities. Audio can be transmitted at 8-channel PCM, Dolby Digital True HD, or DTS-HD Master Audio. |
