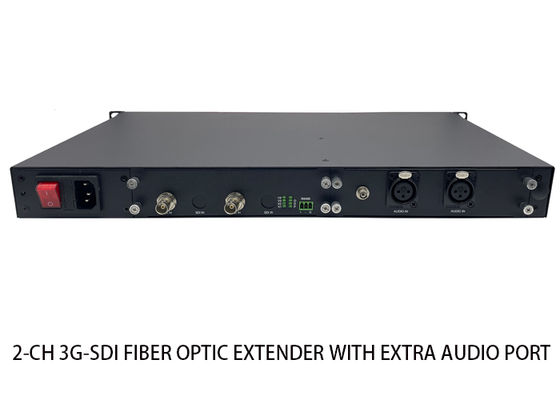

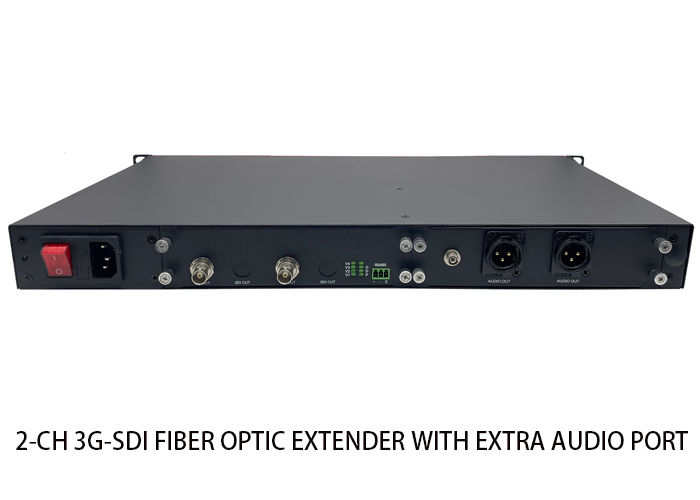

2-Ch 3G-SDI Fiber Optic Extender With Extra Audio Port

2-Ch 3G-SDI Fiber Optic Extender With Extra Audio Port
2-Ch 3G-SDI Fiber Optic Extender With Extra Audio Port 2-Ch 3G-SDI Fiber Optic Extender With Extra Audio Port

Large Image :  2-Ch 3G-SDI Fiber Optic Extender With Extra Audio Port

Product Details:
Place of Origin: Mainland China
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: WL-SD0202
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Carton box and standard export package for 2-Ch 3G-SDI Fiber Optic Extender With Extra Audio Port
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Contact Now

2-Ch 3G-SDI Fiber Optic Extender With Extra Audio Port

Description
Number Of Channels:: 2-Channel 3G-SDI Connector:: 75 Ohm BNC (Gold Center Pin)
Data Rate:: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps - Auto Select Standards: SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI)
Max Resolution:: 1080p @ 60Hz Product Name: 2-Ch 3G-SDI Fiber Optic Extender With Extra Audio Port
Highlight:

200CU 4k HDMI Fiber Optic Cable

,

RoHs HDMI Fiber Optic Cable

,

100m HDMI 2.0 Cable

Description for 2-Ch 3G-SDI Fiber Optic Extender With Extra Audio Port​:



19inch 1U Rack, Built with industrial-grade durability, it offers EMI protection and wide-temperature operation,

supporting single/multi-mode fiber for short/long-distance transmission. This versatile solution ensures reliable,

high-fidelity video distribution for broadcast, surveillance, and digital signage applications.



Features:



1.Supports digital SDI HD uncompressed optical fiber long-distance transmission

2.Support resolution up to 1080P60HZ, backward compatible

3.Removable SFP module LC optical port (Multiple FC optical ports)

4.Supports the design of a plug-in chassis

5.Supports the combination of rack and box

6.2-Ch 3G-SDI Fiber Optic Extender With Extra Audio Port;



Specifications for 2-Ch 3G-SDI Fiber Optic Extender With Extra Audio Port:



Video Signal standard SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Data rate 270Mbit/s - 1.48Gbit/s – 2.97Gbit/s
Cable equalization 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 2.97Gbit/s
Signal amplitude 800mV±10%
Quiver >0.2UI
Support resolution 1080P60HZ/50HZ;1080P30HZ/25HZ/24HZ;1080I60HZ/50HZ;720P60HZ/50HZ;576i;480i
Video interface 75-5Ω BNC connector
Impedance 75 ohm
RS485 Interface 3PIN Phoenix terminal
Signal direction Reverse 485
Baud rate Adaptive, up to 115200bps
Optical Fiber Optical fiber interface Single channel: LC port Rack: FC port (LC/ST/SC) Optional
Fiber type Single mode/multi-mode
Wave length Single mode 1310-155nm
Interface bandwidth 2.97 Gbps
Transmission distance 20KM standard,40/60/80KM optional
Other Power source Single-channel: DC12V/1A 1U/2U/4U rack AC220V
Maximum power consumption MAX 4W
Temperature Operating temperature: 0℃ ~ +70℃
Humidness Working humidity: 5% ~ 90%
Overall dimension Refer to the equipment size drawing



2-Ch 3G-SDI Fiber Optic Extender With Extra Audio Port 0
