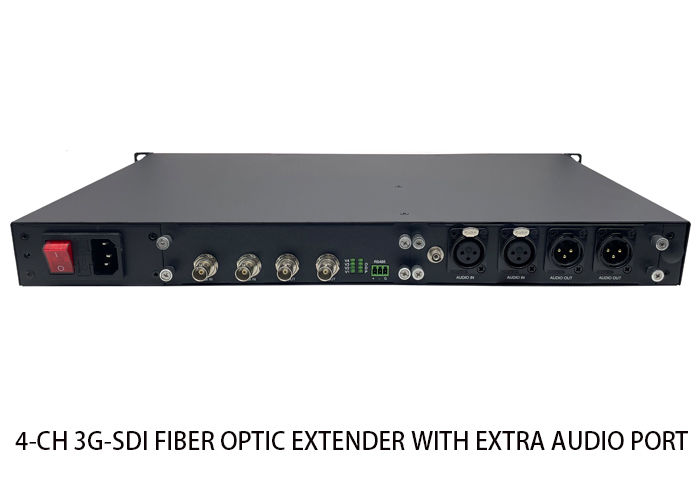

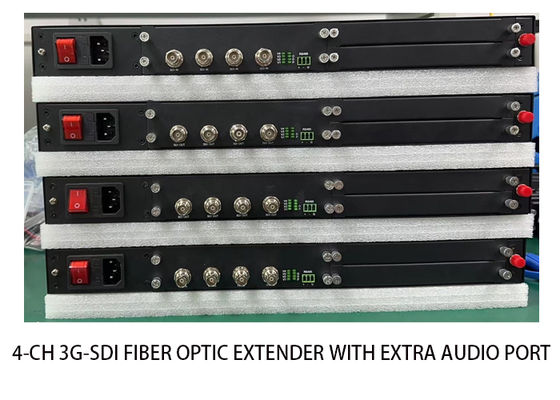

4-Ch 3G-SDI To Fiber Converter With Separate Audio Port

4-Ch 3G-SDI To Fiber Converter With Separate Audio Port
4-Ch 3G-SDI To Fiber Converter With Separate Audio Port 4-Ch 3G-SDI To Fiber Converter With Separate Audio Port

Large Image :  4-Ch 3G-SDI To Fiber Converter With Separate Audio Port

Product Details:
Place of Origin: Mainland, China
Brand Name: VINCAN
Certification: CE ,FCC , RoHs
Model Number: WL-SD0404
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 100-250.00USD/set
Packaging Details: Carton box and standard export package for 4-Ch 3G-SDI To Fiber Converter With Separate Audio Port
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets one week
Contact Now

4-Ch 3G-SDI To Fiber Converter With Separate Audio Port

Description
Power Source: Single-channel: DC12V/1A 1U/2U/4U Rack AC220V Maximum Power Consumption: MAX 4W
Temperature: Operating Temperature: 0℃ ~ +70℃ Overall Dimension: Refer To The Equipment Size Drawing
Interface Bandwidth: 2.97 Gbps Product Name: 4-Ch 3G-SDI To Fiber Converter With Separate Audio Port
Highlight:

Special-Shaped Custom Video Wall Controller

,

1x6 Custom Video Wall Controller

Description:



19inch 1U Rack, Built with industrial-grade durability, it offers EMI protection and wide-temperature operation,

supporting single/multi-mode fiber for short/long-distance transmission. This versatile solution ensures reliable,

high-fidelity video distribution for broadcast, surveillance, and digital signage applications.





Specifications for 4-Ch 3G-SDI To Fiber Converter With Separate Audio Port:



3G-SDI
Number of Channels: 4-Channel 3G-SDI
Connector: 75 Ohm BNC (Gold Center Pin)
Data Rate: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps - Auto Select
Standards: SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI)
Max Resolution: 1080p @ 60Hz
• Audio
Number of Channels: 2-Channel Duplex Balanced Audio
Connector: XLR Male/Female
Audio input/output Level: +4dBu nominal
Audio Type: Balanced, Line Level or Mic Level
Audio in/output impedance: 600Ω
Frequency Response: 20Hz ~ 20KHz
Signal-to-Noise Ratio(SNR): > 90 dB
Distortion: <0.05%
• Ethernet
Number of Channels: 2-Channel Gigabit Ethernet
Data Rate: 10/100/1000 Mbps
Connector: RJ-45, Auto MDI/MDI-X
• Optical
Optical Connector: ST, FC or LC Optical connector optional
Wavelengths: 1310 ~ 1610nm
Fiber Type: Single-Mode, Single-Fiber, 20km
Rate: 3Gbps
Tx Output Power: >-6dB
Receiver Sensitivity: >-14dB
• Electrical & Mechanical
Power Adapter: AC100V~240V (Built-in)
Power Consumption: <30W
19inch 1U Rack: 445mm x 220mm x 44.5mm
Shipping Weight: 6.0kg (include TX & RX)
• Environmental
Operating Temperature: -20°C ~+75°C
Storage Temperature: -40°C~+85°C
Relative Humidity: 0%~95% (non-condensing)
MTBF: >100,000 hours



4-Ch 3G-SDI To Fiber Converter With Separate Audio Port 0
