Custom Made Fiber Optic Audio Converter with 1 channel audio port

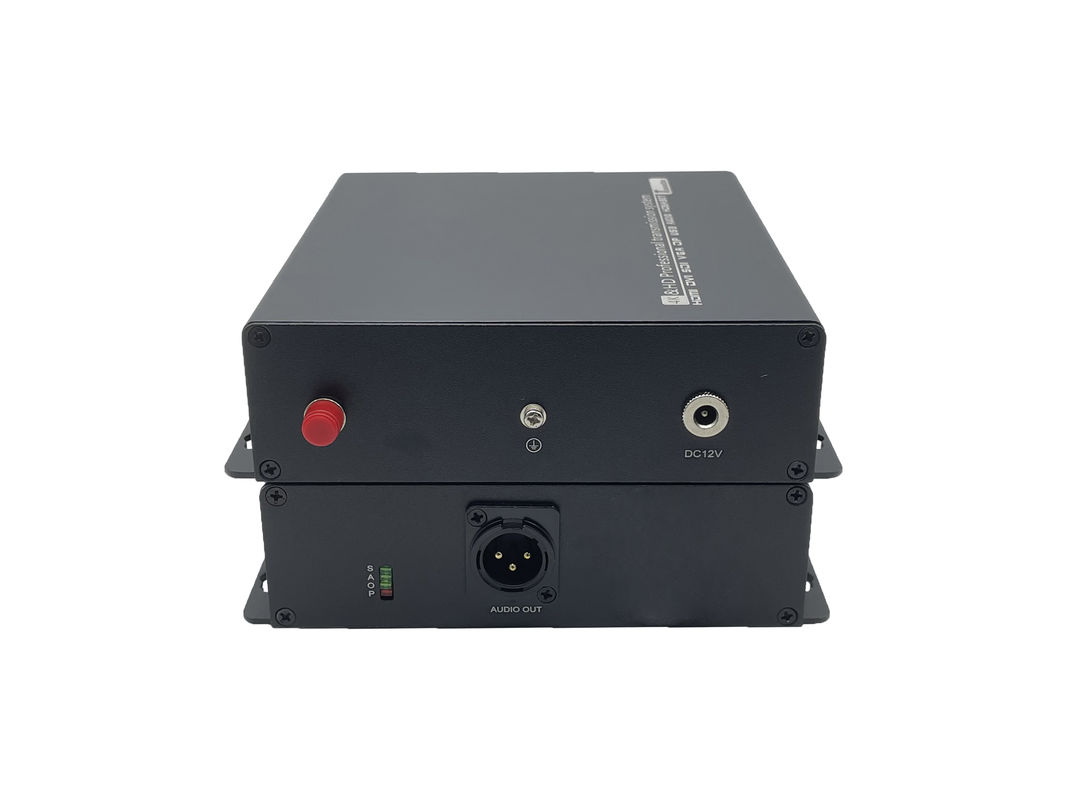

Large Image : Custom Made Fiber Optic Audio Converter with 1 channel audio port

Product Details:

Place of Origin:	Mainland China
Brand Name:	VINCAN
Certification:	CE,FCC and RoHs
Model Number:	WL-AU201

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	Carton box and standard export package for Custom Made Fiber Optic Audio Converter with 1 channel audio port
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 pcs per week

Contact Now

Custom Made Fiber Optic Audio Converter with 1 channel audio port

Description

Audio Connector::	XLR Male/Female, XLR-Combo	Optical Connector::	LC Connector (SFP)
Power Connector::	DC Power Connector	Input Power Requirements::	DC 12V@1A
Power Consumption::	<3W	Product Name:	Custom Made Fiber Optic Audio Converter With 1 Channel Audio Port
Highlight:	IP68 HDMI Fiber Optic Cable , 30M HDMI Fiber Optic Cable , IP68 HDMI Active Optical Cable

Description:

Audio over fiber extender sends 2/4/6/8 channel balanced mic or line level audio signals up
to 12.4 miles over a single mode fiber cable. The transmitter and the receiver each
feature two balanced XLR inputs and two XLR outputs, and a simplex ST connector.
The transmitter includes a switch for selecting mic or line level for each channel.
Designed for studio or field applications, the transmitter and the receiver can be
powered with AC power adapters or 9VDC batteries (both included).

Custom Made Fiber Optic Audio Converter with 1 channel audio port.

Features:

Simplex ST Connectors
Bit Rate: 24bit / Sample Rate: 48Khz
Signal to Noise Ratio > 85dB
Input Impedance: 10KΩ
FCC & RoHS Compliant
Mic Level: -30dB / Line Level: 0dB in/0dB out
Dimensions Each Unit: 4.33 x 3.62 x 1.65 in / Weight Each Unit: 7.9 oz
Custom Made Fiber Optic Audio Converter with 1 channel audio port.

Custom Made Fiber Optic Audio Converter with 1 channel audio port 0

Custom Made Fiber Optic Audio Converter with 1 channel audio port 1
