8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack

8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack
8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack

Large Image :  8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack

Product Details:
Place of Origin: Mainland China
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: WL-SD0808
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Carton box and standard export package for 8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Contact Now

8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack

Description
Number Of Channels:: 8-Channel 3G-SDI Connector:: 75 Ohm BNC (Gold Center Pin)
Data Rate:: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps - Auto Select Standards:: SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI)
Max Resolution:: 1080p @ 60Hz Product Name: 8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack
Highlight:

RFI HDMI Fiber Optic Cable

,

EMI Fiber HDMI Cable

,

250mW Optical HDMI Cable

Description for 8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack​:



19inch 1U Rack, Built with industrial-grade durability, it offers EMI protection and wide-temperature operation,

supporting single/multi-mode fiber for short/long-distance transmission. This versatile solution ensures reliable,

high-fidelity video distribution for broadcast, surveillance, and digital signage applications.



Specification for 8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack:



• 3G-SDI
Number of Channels: 8-Channel 3G-SDI
Connector: 75 Ohm BNC (Gold Center Pin)
Data Rate: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps - Auto Select
Standards: SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI)
Max Resolution: 1080p @ 60Hz
• Audio
Number of Channels: 2-Channel Duplex Balanced Audio
Connector: XLR Male/Female
Audio input/output Level: +4dBu nominal
Audio Type: Balanced, Line Level or Mic Level
Audio in/output impedance: 600Ω
Frequency Response: 20Hz ~ 20KHz
Signal-to-Noise Ratio(SNR): > 90 dB

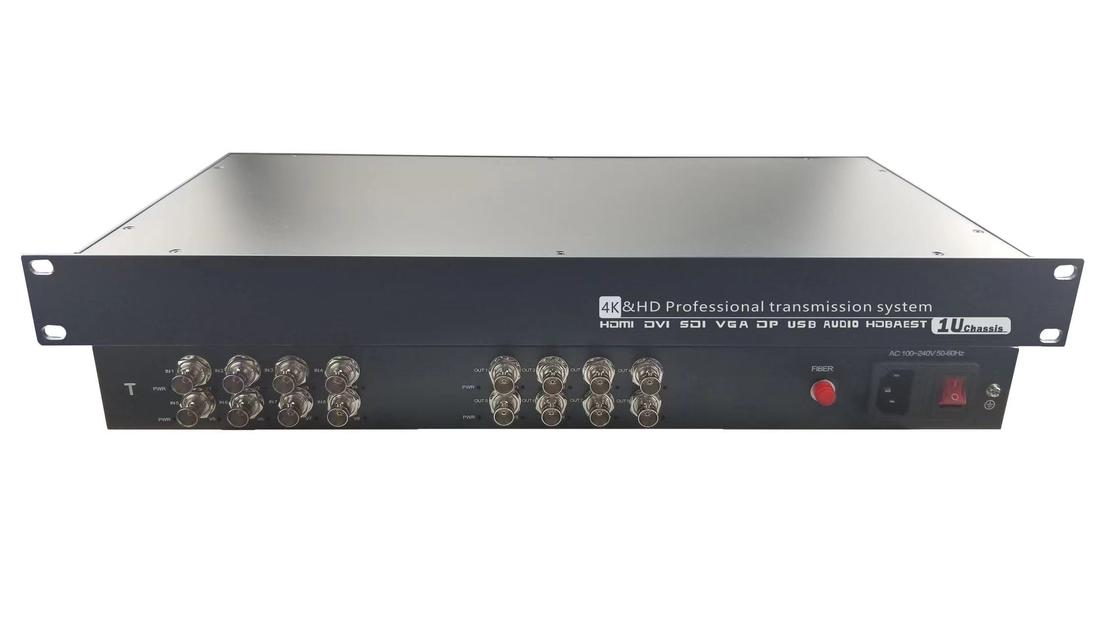

The picture for 8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack :





8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack 0
