16x16 Modular Hybrid HDMI Matrix Switcher with 4K60 Seamless Switching for Professional AV Routing

16x16 Modular Hybrid HDMI Matrix Switcher with 4K60 Seamless Switching for Professional AV Routing
16x16 Modular Hybrid HDMI Matrix Switcher with 4K60 Seamless Switching for Professional AV Routing

Large Image :  16x16 Modular Hybrid HDMI Matrix Switcher with 4K60 Seamless Switching for Professional AV Routing

Product Details:
Place of Origin: China Mainland
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: WLUMX16-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiate
Packaging Details: Carton box and standard export package
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 100 pcs per week
Contact Now

16x16 Modular Hybrid HDMI Matrix Switcher with 4K60 Seamless Switching for Professional AV Routing

Description
Maximum HDMI Inputs: 16 Maximum HDMI Outputs: 16
HDMI Input Resolution: Up To 4096 × 2160@60Hz 4:4:4 HDMI Standard: HDMI 2.0
Compatible Interfaces: HDMI, DVI, DP, SDI, HDBaseT, Fiber Optic Product Name: 16x16 Modular Hybrid HDMI Matrix Switcher – 4K60 Seamless Switching
Highlight:

16x16 HDMI Matrix Switcher

,

Modular Hybrid Matrix Switcher

,

4K60 Seamless Matrix Switcher

Product Overview

The VINCAN WLUMX16-S 16x16 Modular Hybrid HDMI Matrix Switcher is a professional 3U rack-mount AV switching system designed for flexible signal routing, multi-display management, and basic video wall applications.

Supporting up to 16 HDMI inputs and 16 HDMI outputs, the system allows professional AV integrators to manage multiple sources and displays through a centralized matrix switching platform.

Unlike a conventional fixed-interface HDMI matrix switcher, the WLUMX16-S features a modular plug-in card architecture supporting compatible HDMI, DVI, DisplayPort, SDI, HDBaseT, and fiber optic signal interfaces.

The WLUMX-S series is specified with 4K@60Hz 4:4:4 video capabilities, seamless switching, dual control card support, and basic N×N video wall functionality. It is suitable for control rooms, command centers, corporate conference facilities, training centers, and commercial AV installations.

Key Features
1. 16x16 Modular Matrix Switching

The WLUMX16-S features a 3U modular chassis supporting up to 16 HDMI inputs and 16 HDMI outputs.

  • Up to 16 input channels and 16 output channels
  • Modular plug-in input/output cards
  • Flexible signal routing across connected sources and displays
  • Dedicated bus-based signal transmission channels
  • Supports mixed 2K and 4K signal cards

The modular architecture allows compatible interface configurations to be selected according to project requirements.

2. 4K@60Hz 4:4:4 Video Capabilities

The WLUMX-S series supports high-resolution video signal processing for professional AV applications.

  • HDMI 2.0 input card support
  • Maximum specified HDMI input resolution: 4096 × 2160@60Hz 4:4:4
  • HDCP 2.2 compatibility with backward support
  • Image scaling and frequency conversion
  • Adjustable output resolution settings
  • EDID management
Technical note: The series feature list specifies 4K60 4:4:4 output support, while the output-card model table contains a conflicting 4K30 entry. The maximum output resolution must be verified for the installed output card.
3. Seamless HDMI Matrix Switching

The WLUMX16-S supports seamless switching between compatible video sources, designed to avoid black screens and visible flickering during source changes. Additional signal management features include:

  • Input signal preview
  • Input and output signal detection
  • Audio and video synchronization
  • Scene preset saving and recall
  • Power-off parameter memory
4. Flexible Hybrid Signal Card Options

The modular hybrid matrix architecture supports compatible input and output interfaces including:

  • HDMI
  • DVI
  • DisplayPort (DP)
  • SDI
  • HDBaseT
  • Fiber optic

This makes the system suitable for AV projects requiring different signal interface types within a single switching platform. Actual interface combinations depend on the selected signal cards.

5. Matrix Switching and Basic Video Wall Mode

The WLUMX16-S supports both conventional matrix signal routing and basic N×N tiled video wall layouts. The matrix mode allows multiple sources to be distributed across independent displays, while the basic video wall function supports compatible multi-screen tiled arrangements.

Advanced freely movable windows and picture-in-picture functions are not specified in the available documentation.

6. Dual Control Cards and Multiple Control Methods

The system supports dual control cards and various local and remote control options.

  • RS232 and RS485
  • IR control
  • TCP/IP network control
  • Web-based control interface
  • Front-panel buttons
  • Compatible client software
  • Scene preset management

Both browser-based and client/server control architectures are supported.

7. Professional Hardware Design

The WLUMX16-S uses dedicated hardware processing without an embedded operating system. Additional supported features include:

  • Redundant power supply support
  • Electrostatic discharge protection
  • Multi-user permission management
  • Power-off parameter retention
  • N+1 input port backup support
  • Audio embedding and de-embedding through compatible cards
  • Power delivery to compatible active optical cables

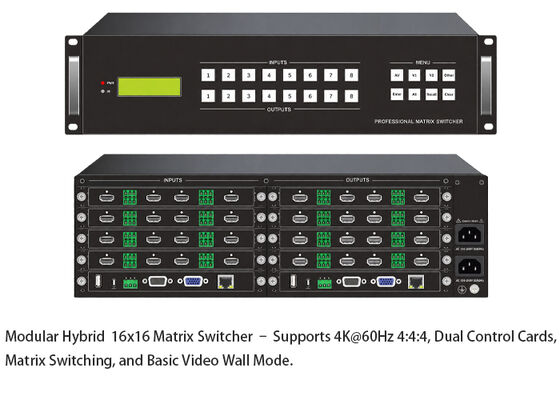

VINCAN WLUMX16-S modular hybrid matrix switcher chassis showing flexible AV signal routing and plug-in interface cards
Technical Specifications
Parameter Specification
BrandVINCAN
ModelWLUMX16-S
Product TypeModular Hybrid Matrix Switcher
Chassis Height3U
Maximum HDMI Inputs16
Maximum HDMI Outputs16
HDMI Input ResolutionUp to 4096 × 2160@60Hz 4:4:4
HDMI Output ResolutionPending output-card specification confirmation
HDMI StandardHDMI 2.0
HDCPHDCP 2.2, backward compatible
Compatible InterfacesHDMI, DVI, DP, SDI, HDBaseT, Fiber Optic
SwitchingSeamless Matrix Switching
Video Wall FunctionBasic N×N Tiled Display
Control CardDual Control Card Support
Control MethodsRS232, RS485, IR, TCP/IP, Web, Front Panel
EDID ManagementSupported
Input Signal PreviewSupported
Scene PresetsSave and Recall
Power SupplyRedundant Power Supply Support
InstallationRack-Mount
Modular Signal Cards
WLUMX-4I-UHS — 4-Channel HDMI Input Card
  • Four HDMI input channels
  • Maximum input resolution: 4096 × 2160@60Hz
  • HDCP compatibility
  • Embedded audio and audio embedding support
WLUMX-4O-UHS — 4-Channel HDMI Output Card
  • Four HDMI output channels
  • HDCP compatibility
  • Embedded audio and audio de-embedding support
  • Maximum output resolution pending confirmation
WLUMX-OC — Control Card
  • RS232 control
  • TCP/IP network control
  • USB power output
Applications
Control Rooms and Command Centers

Manage video source routing across multiple monitoring displays and supported tiled video wall configurations.

Corporate Conference Facilities

Route presentation sources and other AV equipment to different meeting room displays through a centralized matrix system.

Education and Training Centers

Distribute multiple computer and AV signals across training rooms, lecture facilities, and multi-display installations.

Commercial AV Systems

Combine compatible HDMI, DP, SDI, HDBaseT, and fiber optic interfaces in a modular switching platform.

Basic Video Wall Installations

Configure supported N×N tiled display layouts for centralized visual presentation systems.

Frequently Asked Questions
Q1. What is a 16x16 HDMI matrix switcher?

A 16x16 HDMI matrix switcher routes video signals from up to 16 input sources to up to 16 display outputs. The WLUMX16-S uses a modular architecture for flexible interface configurations.

Q2. What makes a modular hybrid matrix different from a fixed HDMI matrix?

A modular hybrid matrix supports compatible interchangeable input and output cards, allowing different signal interface types to be configured within the same chassis.

Q3. Can the WLUMX16-S support HDMI and HDBaseT interfaces?

Yes. The WLUMX-S series supports compatible HDMI and HDBaseT input/output cards. The final configuration depends on the selected modules.

Q4. Does the WLUMX16-S support 4K60 video?

The HDMI input card supports up to 4096 × 2160@60Hz 4:4:4. The maximum output resolution must be confirmed against the selected output card.

Q5. Does the WLUMX16-S support video wall applications?

Yes. It supports basic N×N tiled video wall layouts in addition to conventional matrix switching.

Q6. What control methods are supported?

RS232, RS485, IR, TCP/IP, web-based control, front-panel buttons, and compatible client software are supported.

Q7. Does the matrix support dual control cards?

Yes. Dual control card support is specified. Automatic failover and hot-swapping capabilities have not been confirmed.

16x16 Modular Matrix Switcher Manufacturer — OEM/ODM Solutions

VINCAN is a China-based professional AV equipment manufacturer supplying modular matrix switchers, video wall controllers, and signal management solutions. We work with AV system integrators, distributors, wholesalers, and engineering contractors requiring project-specific signal routing configurations.

Request a Quote

Contact VINCAN with your required input/output channel quantities, interface types, video resolutions, and control requirements to discuss a suitable WLUMX16-S configuration.
