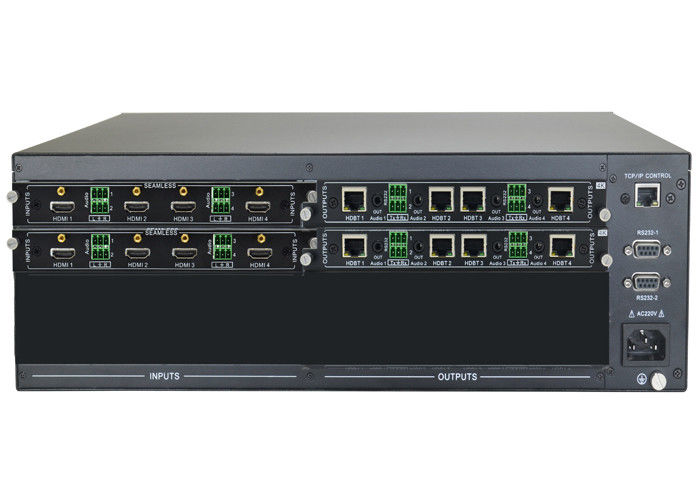

Seamless EDID 4K Video Matrix Switcher 8 HDMI Input 8 HDBaseT Output

Seamless EDID 4K Video Matrix Switcher 8 HDMI Input 8 HDBaseT Output
Seamless EDID 4K Video Matrix Switcher 8 HDMI Input 8 HDBaseT Output

Large Image :  Seamless EDID 4K Video Matrix Switcher 8 HDMI Input 8 HDBaseT Output

Product Details:
Place of Origin: Mainland China
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: WL-HDVM1616
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Carton box and standard export package
Delivery Time: 2-3 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Contact Now

Seamless EDID 4K Video Matrix Switcher 8 HDMI Input 8 HDBaseT Output

Description
Protocol: TCP/IP Power Supply: 23W
Dimension :: 437x318x88mm(without Ears);483x318x88mm(with Ears) Input Ports:: 8 X HDMI
Output Ports:: 8 X HDBaseT Control Methods: IR, Ethernet & RS-232 Control
HDCP 2.2,HDMI: 3D, Deep Color,scaler: Compatible Backup:: Dual Power , Dual Control
Highlight:

4K Video Matrix Switcher

,

EDID Video Matrix Switcher

,

EDID Seamless Video Switcher

Seamless EDID 4K Video Matrix Switcher 8 HDMI Input 8 HDBaseT Output



8 HDMI Input 8 HDBaseT Output Video Matrix Switcher Support Seamless EDID 4K Dual Power Dual Control Backup



Product Description :

  •  Matrix Switcher supports Super definition of 4K/30fps resolution. It’s a high-performance, high bandwidth, flexible and reliable solution for 4K Super definition digital video display system.
  • Matrix Switcher make it into fact that various forms of signal such as CVBS,YPbPr,VGA,HDMI,DVI,3GSDI+ AUDIO,3GSDI,HDBaseT and Fibel can switch arbitrarily. It applies self-researched K-OC image technology to make sure signal and signal can switch rapidly, without black field and jitter.
  • matrix ranges from 8*8,16*16,32*32 to 72*72 to meet different needs of different users.

Product Features :



  • Ø Supports arbitrary switch between multiple video signals ,Supports Seamless switch.
  • Ø Supports CVBS,YPbPr,VGA,HDMI,DVI, 3GSDI+AUDIO,HDBaseT,Fibel,RS232 and IR signal input
  • Ø Supports CVBS,YPbPr,VGA,HDMI,DVI, 3GSDI+AUDIO,HDBaseT and Fibel signal output.
  • Ø Every input channel supports Scaler adjustment.
  • Ø Every output channel supports 16 kinds of common resolution fixed outputing.
  • Ø Supports Deep Color 48/36/30/24-bit,YUV4:2:2/4:4:4
  • Ø HDBaseT cards can extend common audio video signals up to 100 meters with twisted pair.
  • Ø Fibel cards can extend common audio video signals up to 2 kilometers with single mode optical fiber.
  • Ø Supports RS-232,remote control, panel control and TCP&IP control.
  • Ø High-definition, true color touch screen on front panel can display real-time status.
  • Ø LCD display screen on front panel can display real-time status.

Product Specification:

Model WL-HDVM0808 WL-HDVM1616 WL-HDVM3232 WL-HDVM6464
Interface Input channels/Input cards 8 channels/ 2 cards 16 channels/4 cards 32 channels/8 cards 64 channels/16 cards
Output channels/ output cards 8 channels/ 2 cards 16 channels/4 cards 32 channels/8 cards 64 channels/16 cards
Input modes CVBS,YPbPr,VGA,HDMI,DVI,3GSDI+ AUDIO,3GSDI,HDBaseT and Fiber
Output mode CVBS,YPbPr,VGA,HDMI,DVI,3GSDI+ AUDIO,3GSDI,HDBaseT and Fiber
Bandwidth 10.2Gbps
Control RS232 control Control protocol RS232(Baud rate :115200, Data Bits:8, Stop Bits:1,no parity bit)
Connector 9 needles D-sub(DE9F) outlet 3=TX 2=RX 5=GND
TCP&IP control Control protocol TCP/IP
Connector RJ45 joint 10/100Base-T Ethernet
Electrostatic protection Human-body discharge pattern: ±8kV (Air-Gap Discharge) ±4kV (Contact Discharge)
Power 12 V/3 A DC (US/EU Standard, CE/FCC/UL Certified)
Input voltage Power100VAC~260VAC,50/60 Hz, International adaptive power 23W (Maximum)/ 0.5w(Standby)
Operating Temperature 0ºC~40ºC
Storage Temperature −20ºC~60ºC



Using Applications:

Seamless EDID 4K Video Matrix Switcher 8 HDMI Input 8 HDBaseT Output 0Seamless EDID 4K Video Matrix Switcher 8 HDMI Input 8 HDBaseT Output 1Seamless EDID 4K Video Matrix Switcher 8 HDMI Input 8 HDBaseT Output 2

Seamless EDID 4K Video Matrix Switcher 8 HDMI Input 8 HDBaseT Output 3Seamless EDID 4K Video Matrix Switcher 8 HDMI Input 8 HDBaseT Output 4Seamless EDID 4K Video Matrix Switcher 8 HDMI Input 8 HDBaseT Output 5

Seamless EDID 4K Video Matrix Switcher 8 HDMI Input 8 HDBaseT Output 6
