Product Details:
|
| Panel Chassis Structure:: | Pluggable Signal Card | Front Panel:: | Button |
|---|---|---|---|
| Protocol: | TCP/IP | Power Supply: | 23W |
| Dimension :: | 437x318x88mm(without Ears);483x318x88mm(with Ears) | Input Ports:: | 4 X HDMI |
| Output Ports:: | 8 X HDMI And 4 X 3G-SDI | Product Name: | 16x16 8k Hdmi Matrix 8x8 Hdmi 4k Hdmi Matrix Extender |
| High Light: | 16x16 Audio Video Switcher,TCP Audio Video Switcher,16x16 Audio Matrix Switch |
||

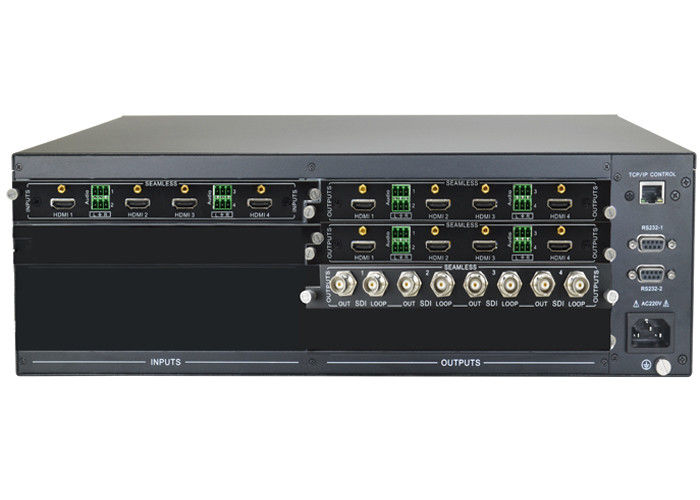

16x16 8k Hdmi Matrix 8x8 Hdmi 4k Hdmi Matrix Extender
1. Overview
16x16 8k Hdmi Matrix 8x8 Hdmi 4k Hdmi Matrix Extender
can route any or all inputs to any or all outputs simultaneously.
2. Features
3. Specification .
| Bandwidth | 18Gbps |
| Video Input Connectors | 4 x HDMI |
| Video Output Connectors | 8 x HDMI and 4 x 3G-SDI |
| TCP/IP Control | 1x RJ45 connector, female |
| RS232 series port | 1x DB9 connector, female 16x3-pin phoenix terminal connector |
| Control Options: | Buttons, IR remote & RS232 (9-pin female D connector) |
| Worldwide Power Supply: | 100VAC ~ 240VAC, 50/60Hz; 50W |
| Temperature: | -10 ~ 50 degrees C |
| Working Humidity: | 10 ~ 90 degrees |
| Regulation: | CE, FCC and CCC |
| Product name | 16x16 8k Hdmi Matrix 8x8 Hdmi 4k Hdmi Matrix Extender |
4. Connection diagram :
