Product Details:
|
| Dimension :: | 437x318x88mm(without Ears);483x318x88mm(with Ears) | Input Ports:: | Support Custom Made |
|---|---|---|---|
| Output Ports:: | Support Custom Made | Gain: | 0 DB |
| Warranty Time: | 1 Year | Color: | Black |
| Highlight: | 8X16 HDMI Switch Splitter,HDBaseT Output HDMI Switch Splitter,8X16 HDMI Switcher |
||

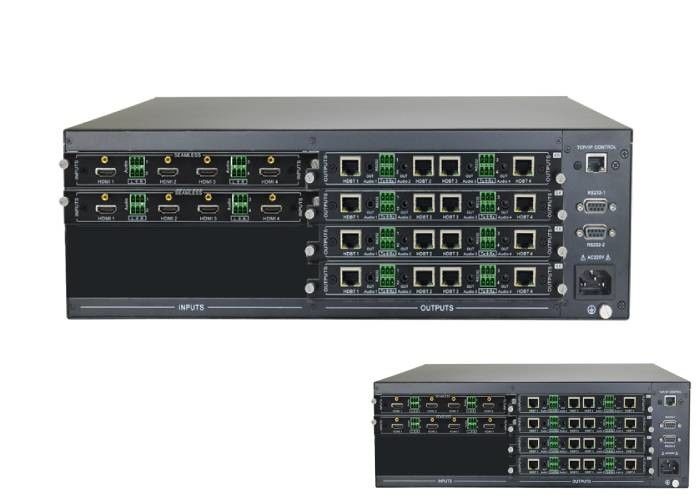

Custom Made 8X16 HDMI Switch Splitter HDMI Input And HDBaseT Output
8X16 ,Custom made supported HDMI Video Matrix Switcher with HDMI input and HDBaseT output
Description :
Modular Video Matrix Switcher With 4k HDMI offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis.
FEATURES:
1. Optional redundant power supply for continuous operation
2. Multiple Control Methods – system management via front-panel buttons, RS-232 control, and Ethernet connections.
SPECIFICATION:
| Video Input | |
| Interfaces | Depends on which I/O board is inserted |
| Impedance | 100 Ω |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps per lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) |
| HDCP Support depends on the boards selected | |
| Consumer Electronics Control (CEC) | |
| HDBaseT Compatible | |
| Audio | |
| Input | Depends on which Input board is inserted |
| Output | Depends on which Output board is inserted |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) |
| Serial Control Pin Configurations: | |
| Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd | |
| Baud Rate and Protocol: | |
| Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No | |
| RS-485/RS-422 | Connector: 1 x Captive Screw Connector, 5 Pole |
| Ethernet | Connector: 1 x RJ-45 Female |
| EDID Settings | EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support) |
| Power | |
| Maximum Input Power Rating | 100-240 VAC; 50-60Hz; 1.0A |
| Power Consumption | 378W (Max.) |
| *A power module can be purchased for power redundancy. | |
| Fan | Airflow: 60 cfm |
| Operating Voltage: 10.8 - 13.8 VDC | |
| Operating Temp: -10 - 70°C | |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Carton Lot | 1 pc |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
