VINCAN 4x4 HDBaseT HDMI Matrix Switcher with 4K60 4:4:4, PoC and 4 Receivers for Professional AV Distribution

VINCAN 4x4 HDBaseT HDMI Matrix Switcher with 4K60 4:4:4, PoC and 4 Receivers for Professional AV Distribution
VINCAN 4x4 HDBaseT HDMI Matrix Switcher with 4K60 4:4:4, PoC and 4 Receivers for Professional AV Distribution VINCAN 4x4 HDBaseT HDMI Matrix Switcher with 4K60 4:4:4, PoC and 4 Receivers for Professional AV Distribution

Large Image :  VINCAN 4x4 HDBaseT HDMI Matrix Switcher with 4K60 4:4:4, PoC and 4 Receivers for Professional AV Distribution

Product Details:
Place of Origin: China Mainland
Brand Name: VINCAN
Certification: FCC CE Rohs
Model Number: WLHDP-MXB44H150
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiate
Packaging Details: Carton package
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 100 pcs per week
Contact Now

VINCAN 4x4 HDBaseT HDMI Matrix Switcher with 4K60 4:4:4, PoC and 4 Receivers for Professional AV Distribution

Description
HDMI Inputs: 4 Output Zones: 4 Independently Selectable Zones
Maximum Video Resolution: 4K At 60Hz, 4:4:4 Video Bandwidth: 18Gbps
HDMI Compliance: HDMI 2.0b Included Receivers: 4 HDBaseT Receivers
Highlight:

4K60 4:4:4 HDMI Matrix Switcher

,

PoC HDBaseT Matrix Switcher

,

4 Receivers 4K60 HDMI Matrix

VINCAN 4x4 HDBaseT HDMI Matrix Switcher with 4K60 4:4:4, PoC and 4 Receivers
4×4 HDBaseT HDMI Matrix Switcher with 4K60 4:4:4

The VINCAN 4x4 HDBaseT HDMI Matrix Switcher provides flexible source routing and long-distance AV distribution for meeting rooms, classrooms, retail spaces and multi-room installations. It connects four HDMI sources to four independently selectable output zones, with each zone providing an HDMI output and a mirrored HDBaseT output.

Supporting resolutions up to 4K at 60Hz with 4:4:4 chroma sampling, this 4K60 HDMI matrix delivers detailed video and clear text for professional presentations and digital signage. Four HDBaseT receivers are included for remote display connections.

Key Features
  • Four Sources, Four Output Zones: Route any of four HDMI inputs to any output zone, supporting up to eight connected displays across four zones
  • Long-Distance HDBaseT Transmission: Extend HDMI signals up to 120m for 4K video and 150m for 1080p video over Cat5e/Cat6/Cat7 cable
  • 4K60 Video and HDR Support: HDMI 2.0b, 18Gbps bandwidth, HDCP 2.2 support with HDR10, HDR10+, Dolby Vision and HLG
  • Audio Extraction: Four coaxial digital audio outputs and four balanced analog audio outputs for external sound systems
  • Flexible Control: Multiple control methods including front panel, IR remote, RS-232, LAN and Web GUI
  • Power over Cable: 24V PoC on all HDBaseT outputs to power connected receivers
  • Independent Downscaling: 4K-to-1080p downscaling available for each HDMI output
Technical Specifications
Item Specification
HDMI inputs 4
Output zones 4 independently selectable zones
Video outputs 4 HDMI + 4 mirrored HDBaseT
Maximum video resolution 4K at 60Hz, 4:4:4
Video bandwidth 18Gbps
HDMI compliance HDMI 2.0b
HDCP compliance HDCP 2.2 and HDCP 1.x
HDR support HDR10, HDR10+, Dolby Vision, HLG
HDBaseT transmission distance Up to 120m at 4K; up to 150m at 1080p*
Downscaling Independent 4K-to-1080p downscaling on HDMI outputs
Matrix audio outputs 4 coaxial digital + 4 balanced analog
Receiver audio output Analog audio
Power over cable 24V PoC on all HDBaseT outputs
Control methods Front panel, IR remote, RS-232, LAN, Web GUI
Installation 1U rack-mount design
Matrix dimensions 440 × 200 × 44.5mm
Matrix weight 3.1kg
Power input AC 100-240V, 50/60Hz
Maximum power consumption 60W
Operating temperature 0-40°C
Included receivers 4 HDBaseT receivers

*Transmission distances are based on the feature section of the supplied user manual.

Typical Applications
  • Meeting rooms with local and remote displays
  • Classrooms and training facilities
  • Retail and hospitality AV distribution
  • Multi-room entertainment systems
  • Digital signage installations requiring independent source selection
Plan Your AV Distribution System

Contact VINCAN with your source count, display resolutions and cable distances. We can help you select a suitable 4x4 HDBaseT HDMI matrix configuration for your installation.

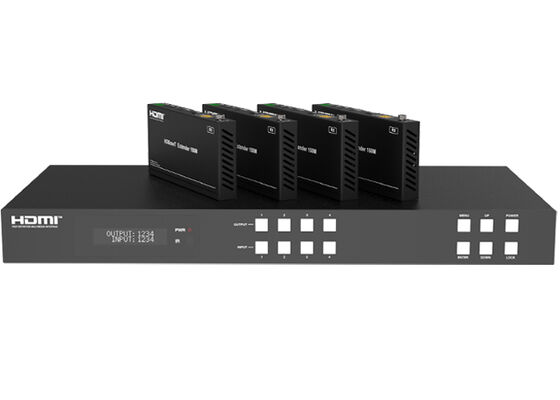

VINCAN 4x4 HDBaseT HDMI Matrix Switcher product image showing front panel and connectivity options
