Product Details:
|
| Certification: | FCC, Ce, RoHS | Input Interfaces: | 4 X HDMI Type A Female (Black) |
|---|---|---|---|
| Output Interfaces: | 4 X HDMI | Impedance: | 100 Ω |
| Max. Data Rate: | 6.75 Gbps (2.25 Gbps Per Lane) | Max. Pixel Clock: | 225 MHz |
| Compliance: | HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC) | Product Weight: | 2KG |
| Housing: | Metal | ||
| Highlight: | 4x4 Seamless HDMI Matrix,225 MHz HDMI Matrix 4x4,225 MHz 4x4 Seamless HDMI Matrix |
||

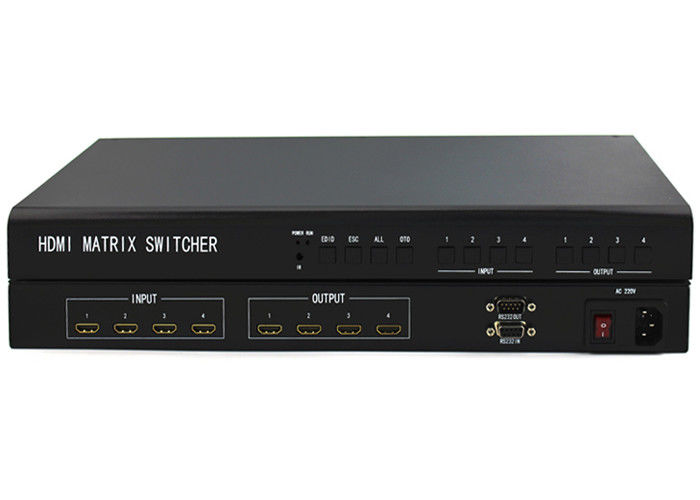

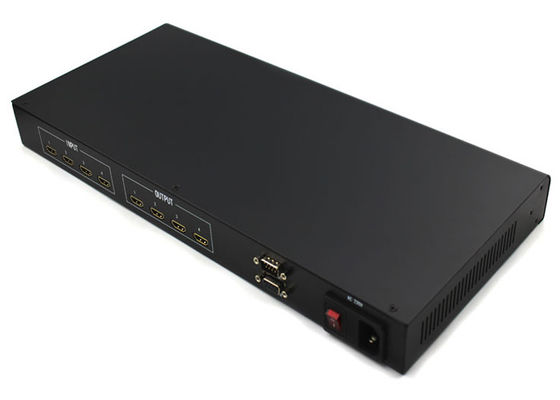

4x4 HDMI Matrix Switch
I. Introduction
This is a high performance HDMI Matrix with four HDMI inputs & four outputs. It allows any source (Blue-Ray player, HD DVD player,
satellite receiver, game system, etc.) to be shown on the any of the four displays simultaneously, and supports 4K×2K, 3D, Deep Color.
With its 2 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution.
II. Features
1. Supports display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz 2. 3D HDMI 1.4a video format
support. 3. 3D video support including Frame Packing for all 3D formats up to a 297MHz TMDS clock. 4. Supports deep
color up to 48-bit per pixel. 5. HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT). 6. Supports
reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR. 7. Full colorimetry including sYCC601, Adobe RGB, Adobe YCC601, xvYCC
extended gamut color. 3 8. Operates for TMDS clock frequencies up to 300MHz.
III. Package
HDMI Matrix --------------------------------------------------------- 1PC
Power Adapter -------------------------------------------------------- 1PC
Operation Manual ---------------------------------------------------- 1PC
Remote Control---------------------------------------------------------1PC
RS232 Serial Cable----------------------------------------------------1PC
IV. Specifications
1. Frequency Bandwidth : 297MHZ[10.2Gbps]
2. Input Ports : 4 x HDMI Female input ports
3. Output Ports : 4 x HDMI Female output ports
4. Power Supply : DC 12V, 2.5A
5. ESD Protection Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
6. Dimensions (mm) : 1 15(W) X 270 (D) X 45 (H)
7. Weight : (g) 900
8. Operating Temperature : 0°C ~ 40°C / 32°F ~ 104°F
9. Storage Temperature : -20°C ~ 60°C / -4°F ~ 140°F
10. Relative Humidity : 20 ~ 90% RH (Non-condensing)
11. Power Consumption : (Max) 20W
Ⅴ: Using Application Areas :
