Product Details:
|
| HDCP Compliance: | HDCP 2.2 And HDCP 1.x | DVI Compliance: | DVI 1.0 |
|---|---|---|---|
| Video Bandwidth: | 594MHz / 18Gbps | HDMI Video Resolution: | Up To 4K2K@50/60Hz YCbCr 4:4:4 |

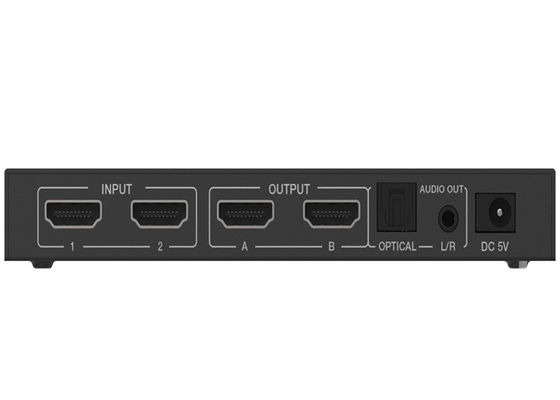

| Input Ports: | 2×HDMI Type A [19-pin Female] 1×IR Receiver Window | Output Ports: | 2×HDMI Type A [19-pin Female] 1×L/R [3.5mm Stereo Mini-jack] 1×OPTICAL OUT [Optical Jack] |
| High Light: | 2x2 HDMI Matrix Switcher,18Gbps HDMI Matrix Switcher,2x2 HDMI Switch Audio Extractor |
||
Type A 18Gbps 2x2 HDMI Matrix Switcher With Audio Extractor

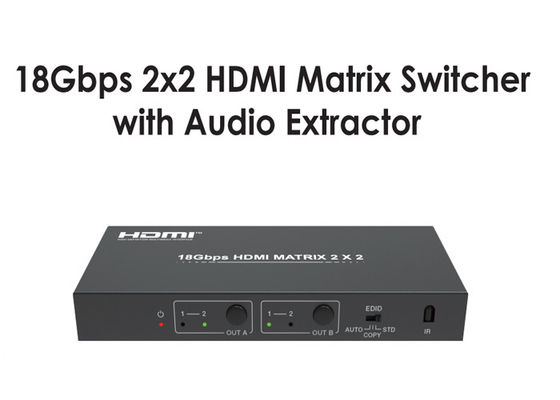

18Gbps 2x2 HDMI Matrix Switcher with Audio Extractor
1. Introduction
This product supports audio extract from output A to optical and analog output.
It supports three modes of EDID
setting (AUTO, COPY and STD). Flexible control via panel buttons and IR
remote, the corresponding LED indicator on front panel will be illuminated.
2. Features
1.HDCP2.2 / HDCP1.x, DVI 1.0 compliant.
2.Support 18Gbps video bandwidth
3.Video resolution is up to 4K2K@50/60Hz (4:4:4).
4. Support digital and analog audio extract output from output A
5. EDID can be selected with AUTO, COPY and STD mode via the selector on
the front panel.
3. Package Contents
① 1× 2×2 HDMI Matrix Switcher
② 1× 5V/1A Power Adapter
③ 1× Matrix IR Remote
④ 1× User Manual
4. Specification :
|
Technical |
|
|
HDCP Compliance |
HDCP 2.2 and HDCP 1.x |
|
DVI Compliance |
DVI 1.0 |
|
Video Bandwidth |
594MHz / 18Gbps |
|
HDMI Video Resolution |
Up to 4K2K@50/60Hz YCbCr 4:4:4 |
|
High Dynamic Range |
HDR,HDR 10+,HLD,DOLBY VISION |
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
|
Color Depth |
8-bit, 10-bit, 12-bit |
|
HDMI Audio Formats |
PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD |
|
L/R Audio Formats |
Analog stereo PCM 2.0 |
|
Optical Audio Formats |
LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 |
|
ESD Protection |
Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
|
Connection |
|
|
Input ports |
2×HDMI Type A [19-pin female] 1×IR Receiver Window |
|
Output ports |
2×HDMI Type A [19-pin female] 1×L/R [3.5mm Stereo Mini-jack] 1×OPTICAL OUT [Optical jack] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Black |
|
Dimensions |
144mm (W)×59.5mm (D)×18mm (H) |
|
Weight |
208g |
|
Power Supply |
Input: AC100~240V 50/60Hz Output: DC5V/1A (US/EU standard, CE/FCC/UL certified) |
|
Power Consumption |
2.7W |
|
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity |
20~90% RH (non-condensing) |
