Product Details:
|
| Resolution Support: | 4K | Support Protocol: | HDMI2.0 |
|---|---|---|---|
| HDCP: | HDCP 2.2 | Power Supply: | Single -circuit:DC 12V/1A |
| Product Category: | Fiber Optic Extender | Video Bandwidth: | 18Gbps |
| Storage Temperature: | -20°~60°C/-4°F~104°F | Product Name: | 4K@60Hz HDMI Fiber Optic Extender |
| Highlight: | Audio Embedding HDMI 4K Extender,4K 60Hz HDMI 2.0b Optical Extender |
||

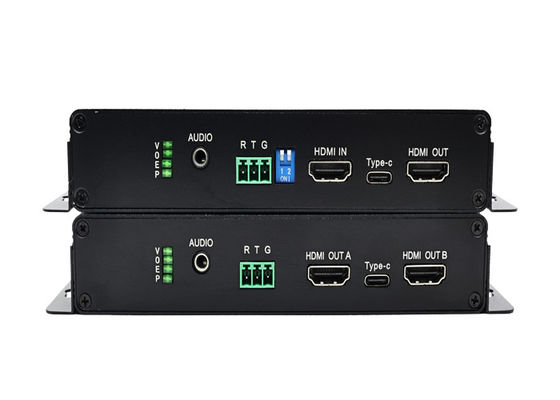

This 4K HDMI optical extender is designed to transmit HDMI 2.0 signals over long distances of up to 10 kilometers via single-mode fiber optic cable. In addition to high-resolution video, it also supports long-distance transmission of audio and RS232 control signals over fiber. With robust anti-interference performance, compact size, high security, and lightweight design, this HDMI extender over fiber optical solution is ideal for demanding professional environments. It is widely used in 4K video distribution applications such as exhibition displays, projection blending, transportation systems, broadcast television, video conferencing, medical imaging, educational recording, and live streaming. As a 4K HDMI optical extender, it ensures stable, uncompressed signal transmission, making it the perfect choice for AV professionals seeking a reliable HDMI 4K extender or HDMI extender 4K 60Hz for mission-critical systems.
| Video | Supported Protocol | HDMI 2.0b |
| Video Bandwidth | 18Gbps | |
| HDCP | HDCP 2.2 | |
| Interface Bandwidth | 18Gbps | |
| Color Depth | RGB4:4:4 8-bit downward compatible | |
| Video Color Space | RGB4:4:4, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 | |
| Interface | HDMI-A interface | |
| Impedance | 100Ω | |
| Suggested Maximum HDMI Cable Input/Output Distance | Less than 10M. When the resolution is above 1920×1080@60Hz,it can reach 30M when using a cable with equalization. | |
| Audio | Audio Mode | Stereo |
| Audio Interface | 3.5mm stereo audio socket | |
| Audio Signal Type | Audio embedding and de-embedding | |
| RS232 | Interface | Phoenix Terminal |
| Signal Direction | Bidirectional Transmission | |
| Baud Rate | Default 38400bps, can be manually selected from 600-115200bps | |
| IR | IR Frequency | 38KHz |
| Optical Fiber | Optical Fiber Interface | LC Interface |
| Optical Fiber Type | Single -Mode | |
| Wavelength | TX1330/RX1270nm；TX1270nm/RX1330nm | |
| Interface Bandwidth | 10G | |
| Suggested Maximum Transmission Distance | Single-Mode Optical Fiber:10km | |
| Other | Power Supply | Single -circuit:DC 12V/1A |
| Maximum Power Consumption | Without KVM:max 4W;With KVM:max 6W | |
| Operating Temperature | 0°~40°C/32°F~104°F | |
| Humidity | 20~90% RH(No Condensation) | |
| Storage Temperature | -20°~60°C/-4°F~104°F | |
| Operating Time | 7*24 hours |
This 4K HDMI video fiber extender is widely used in industries requiring high-quality video transmission, including broadcast television, video conferencing systems, medical imaging and teaching, education recording and live broadcasting, and security surveillance. It is the perfect solution for professionals seeking uncompressed 4K video transmission over optical fiber with exceptional reliability and real-time performance.
