USB 3.0 Fiber Optic Extender with 300m Distance, 5 Gbps Speed, and 4-Port USB Hub

Large Image : USB 3.0 Fiber Optic Extender with 300m Distance, 5 Gbps Speed, and 4-Port USB Hub

Product Details:

Place of Origin:	Chinese
Brand Name:	Vincan
Certification:	FCC CE Rohs
Model Number:	LUSB-301T LUSB-301R

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiate
Packaging Details:	carton package
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	100 pcs per week

Contact Now

USB 3.0 Fiber Optic Extender with 300m Distance, 5 Gbps Speed, and 4-Port USB Hub

Description

USB Interfaces::	4 × USB Type-A Female Connectors	Fiber Interface:	1 × LC Optical Connector
Dimensions::	135 Mm × 75 Mm × 26 Mm	Installation::	Secured Using Four Mounting Holes
Enclosure Material::	Metal	Product Name::	USB 3.0 Fiber Optic Extender Up To 300m With 4-Port USB Hub
Highlight:	300m Distance USB 3.0 Fiber Optic Extender , 4-Port USB Hub Fiber Optic USB Extender , 5 Gbps Speed USB Optical Extender

USB 3.0 Fiber Optic Extender Up to 300m with 4-Port USB Hub

Product Overview

The USB 3.0 Fiber Optic Extender Up to 300m with 4-Port USB Hub is designed to extend high-speed USB signals over long distances using optical fiber. It provides reliable USB extension for machine vision, security surveillance, industrial imaging, data storage, and professional USB device applications.

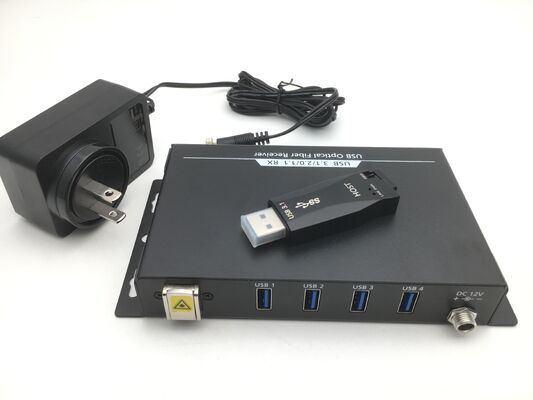

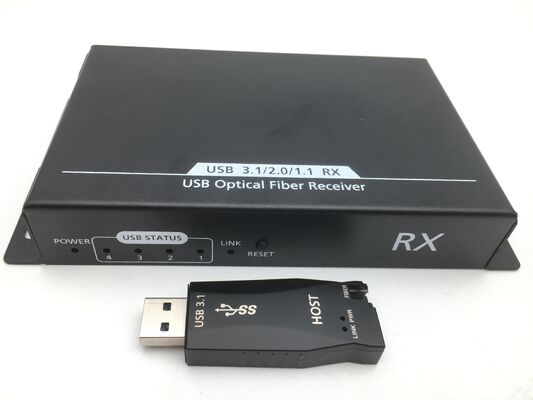

The system consists of an LUSB-301T host unit and an LUSB-301R device unit. The compact host unit connects directly to the USB port of a computer, while the remote device unit provides four USB Type-A ports for connecting cameras, storage devices, printers, and other USB peripherals.

With a maximum transmission rate of up to 5 Gbps, this USB 3.0 fiber optic extender supports storage-device data transmission over distances of up to 300 meters. For USB 3.0 image and camera signal transmission, the recommended maximum distance is up to 100 meters.

The extender uses one LC optical fiber connection and supports single-mode fiber or OM3-and-above multimode fiber. Fiber-optic transmission provides excellent resistance to electromagnetic interference, making the product suitable for installations where conventional copper USB cables cannot provide sufficient distance or stable signal performance.

The LUSB-301 system is plug-and-play and requires no driver installation. The host unit does not require an external power supply, while the device unit is powered by an external 12 V DC power adapter.

Key Features

Extends USB 3.0 signals over optical fiber
Maximum data transmission distance up to 300 meters
Maximum USB 3.0 image transmission distance up to 100 meters
Transmission rate up to 5 Gbps
One LC optical fiber connection
Supports single-mode fiber and OM3-or-higher multimode fiber
Four-port USB hub on the remote device unit
Plug-and-play operation
No driver installation required
Supports hot plugging
Strong resistance to electromagnetic interference
Compact host unit requiring no external power supply
Remote device unit powered by external 12 V DC

USB Compatibility

Host Unit - LUSB-301T	Device Unit - LUSB-301R
Supports USB 3.0 Supports USB 3.1 Gen 1 Does not support USB 2.0 or USB 1.1 host connections	Supports USB 3.1 Gen 1 peripherals Supports USB 3.0 peripherals Supports USB 2.0 peripherals Supports USB 1.1 peripherals Provides four USB Type-A female ports

Technical Specifications

Specification	Details
Model	LUSB-301
Host Unit	LUSB-301T
Device Unit	LUSB-301R
Maximum Data Rate	5 Gbps
Data Transmission Distance	Up to 300 m
Image Transmission Distance	Up to 100 m
Fiber Interface	1 × LC optical connector
Supported Fiber	Single-mode fiber or OM3-and-above multimode fiber

LUSB-301T Host Unit

USB Interface	1 × USB Type-A male connector
Dimensions	62 × 22.4 × 10.52 mm
Enclosure Material	Zinc alloy
Installation	Connects directly to the host USB port
Power Supply	No external power supply required

LUSB-301R Device Unit

USB Interfaces	4 × USB Type-A female connectors
Dimensions	135 × 75 × 26 mm
Enclosure Material	Metal
Installation	Four mounting holes
Power Supply	External 12 V DC

Operating Environment

Operating Temperature	-10°C to +60°C
Storage Temperature	-45°C to +85°C
Operating Humidity	20%-80% RH, non-condensing
Storage Humidity	10%-80% RH

Applications

Machine vision systems Industrial USB cameras Security surveillance systems Remote camera installations USB storage devices High-speed data transmission Industrial inspection systems Laboratories and testing environments Medical imaging equipment Factory automation systems

Why Use a USB 3.0 Fiber Optic Extender?

Standard USB cables are limited in transmission distance and may be affected by electromagnetic interference. This long-distance USB 3.0 fiber extender converts USB signals into optical signals, enabling stable transmission between a host computer and remote USB devices.

The integrated four-port USB hub allows multiple USB peripherals to be connected at the remote location, reducing cabling complexity and making the system suitable for professional and industrial installations.
