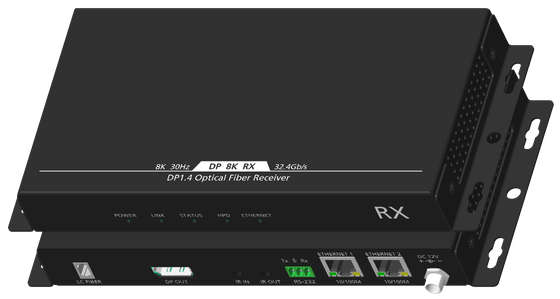

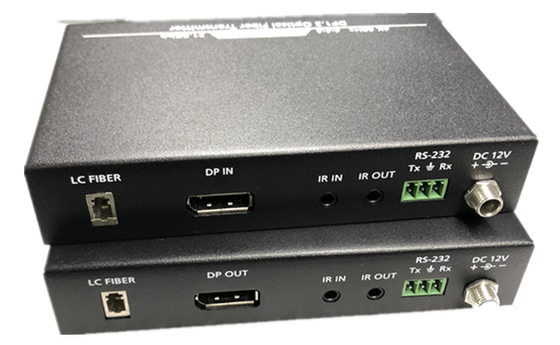

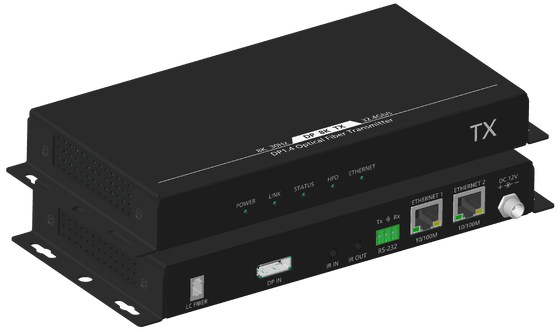

8K DP1.4 Fiber Optic Extender Over Single-Mode Fiber With Bidirectional IR And RS232, 1.5 km

8K DP1.4 Fiber Optic Extender Over Single-Mode Fiber With Bidirectional IR And RS232

Product Overview:

The VINCAN WL-DP1.4-RJ45-TX-RX  is an 8K DP1.4 fiber optic extender designed to transmit uncompressed DisplayPort video,

AUX, bidirectional IR and bidirectional RS232 signals over a single strand of single-mode fiber.

Supporting resolutions up to 8K at 30Hz and 4K at 120Hz, this DisplayPort over fiber solution provides reliable long-distance

 signal transmission up to 1.5 km. It is suitable for professional AV installations where high-resolution video, stable signal quality and remote device control are required.

The transmitter and receiver use CWDM optical technology to combine multiple optical wavelengths onto one fiber. This single-fiber

DP extender reduces fiber usage while maintaining the full 32.4 Gb/s bandwidth required for DP1.4 signal transmission.

Key Features:

• DP1.4 fiber optic extender for professional AV applications

• Supports resolutions up to 8K at 30Hz

• Supports 4K at 120Hz for high-frame-rate video applications

• Transmits uncompressed DisplayPort video over fiber

• Supports a total video bandwidth of up to 32.4 Gb/s

• Uses only one strand of single-mode fiber

• Long-distance DisplayPort transmission up to 1.5 km

• Transparent DisplayPort AUX signal transmission

• One bidirectional IR channel

• One bidirectional RS232 channel

• Single LC optical interface

• Stable point-to-point fiber optic transmission

• DC 12V power supply

Specification:

Applications

The 8K DP1.4 fiber optic extender can be used in:

• Professional AV system integration

• Control rooms and command centers

• Broadcast and production studios

• Medical imaging systems

• Digital signage installations

• Exhibition and experience centers

• Education and training facilities

• Smart-home AV systems

• High-resolution public display systems

• Point-to-point DisplayPort video transmission

Package Contents

• 1 × LDP14-601S01-T DP1.4 optical transmitter

• 1 × LDP14-601S01-R DP1.4 optical receiver

• 2 × Power adapters with 110–230V AC input and 12V DC/2A output

Why Choose The VINCAN DP1.4 Fiber Optic Extender?

The VINCAN WL-DP1.4-RJ45-TX-RX combines 8K video support, 4K 120Hz compatibility, single-fiber transmission, bidirectional IR and

 bidirectional RS232 control in one compact optical extender system.

It provides a practical DP over fiber solution for professional AV integrators, distributors and project solution providers requiring long-distance,

uncompressed DisplayPort signal transmission.

OEM and ODM customization support is available for professional AV projects. Please contact us for product specifications, project configuration,

sample orders or customized requirements.
