Product Details:
|
| Size(mm): | 430(L)X300(W)X44 (H) | Product Name: | 8x4 8x8 Audio Hdmi Seamless Video Matrix Switcher 4k Matrix Switcher |
|---|---|---|---|
| Weight: | 5Kg | Operating Temperature: | 0 To 40°C |
| Storage Temperature: | -20 To 70°C | Permissible Humidity: | 10%-50% |
| Highlight: | 4k HDMI Seamless Video Matrix Switcher,8x8 HDMI Seamless Video Matrix Switcher,8x4 HDMI Seamless Video Matrix Switcher |
||

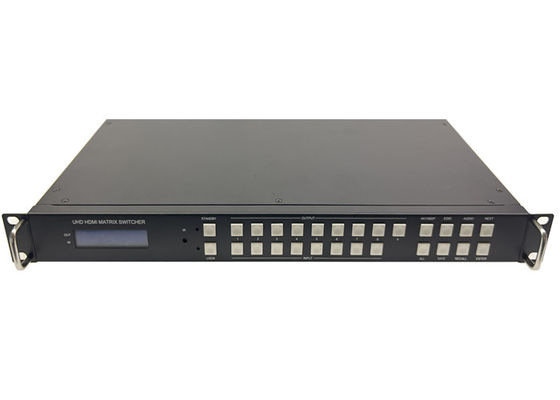

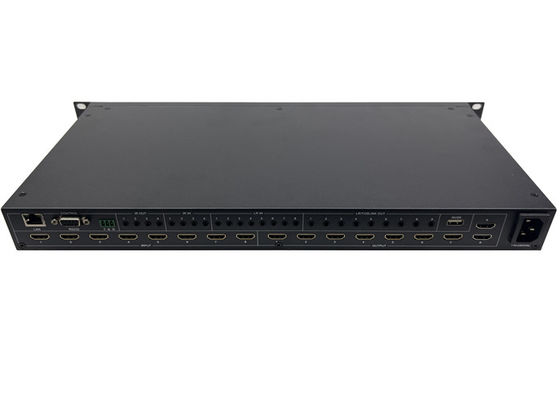

This device is a high-performance UHD HDMI matrix switcher with 8x HDMI inputs and 9x HDMI outputs. It support audio extract,
and external 3.5mm LR input audio can be inserted on corresponding HDMI input stream. The switcher support IR matrix routing
for IN1-4 and OUT1-4
2.Key Features:
| Electrical parameter | |
| Interface | HDMI-A |
| HDMI Version | HDMI2.0,HDCP2.2 |
| Bandwidth | 18Gbps |
| HDMI Amplitude | T.M.D.S +/- 0.4Vpp |
| Differential impedance | 100±15ohm |
| RS232/Ethernet control | |
|
Baud rate and protocol |
Baud rate:9600, data bit:8, |
| stop bit:1,no parity checking | |
| Ethernet | IE10.0+,HTML5 |
| Power | |
| Max Consumption | 60W, 110-240VAC |
| Matrix Mechanical dimensions | |
| Size(mm) | 430(L)X300(W)X44 (H) |
| Weight | 5Kg |
| Operating temperature | 0 to 40°C |
| Storage temperature | -20 to 70°C |
| Permissible humidity | 10%-50% |
