1.Introduction

This device is a high-performance UHD HDMI matrix switcher with 8x HDMI inputs and 9x HDMI outputs. It support audio extract,

and external 3.5mm LR input audio can be inserted on corresponding HDMI input stream. The switcher support IR matrix routing

for IN1-4 and OUT1-4

2.Key Features:

• Support HDMI 2.0/HDCP 2.2
• Support HDMI audio extract
• Support external LR audio insert on HDMI stream
• Support IR matrix (Only IN1-4 and OUT1-4)
• Support EDID management
• Support Test Pattern
• Support 4K-HANDLE ( 4K/1080P ) to match different displayer
• Front panel,Remoter,RS232,Ethernet/Web control.
• 6x6 8k 8 X 8 Hdmi Matrix Switcher Hdmi Matrix 18gbps.

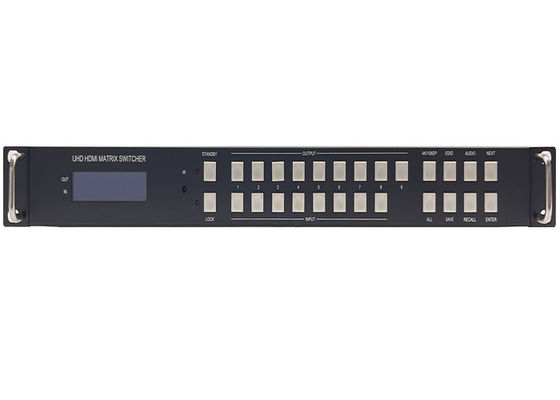

2 Front Panel

• Press STANDBY and hold for 3 seconds, to make the switcher enter or release standby state.
• Press LOCK and hold for 3 seconds to lock or unlock front buttons.
• Press OUTPUT n + INPUT m+ ENTER

• Switch matrix input m to output n

• Press ALL + INPUT m + ENTER

• Switch input m to all the outputs

• Press button SAVE + OUTPUT n

• Save current routing scene as scene n.

  The maximum available scene number is 8.

• Press AUDIO + INPUT m + NEXT + ENTER

• Configure audio selection for INPUT m

  Audio selection option for each input port as following:

  L/R, EMBEDDED

  Please refer rear panel description for detail audio selection;

•

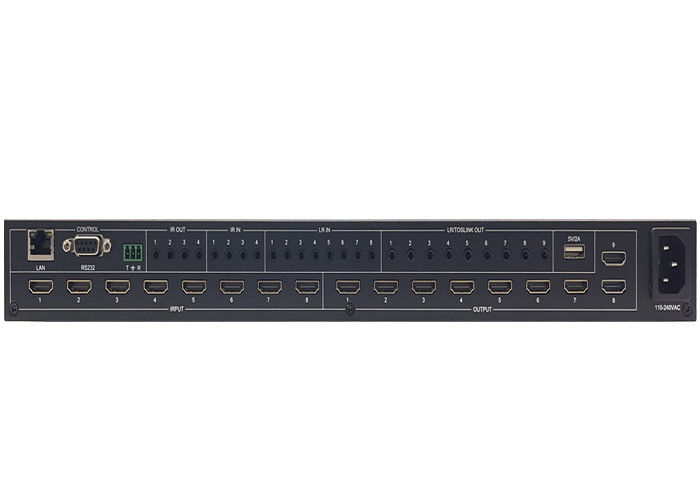

3 Rear Panel

• LAN(10M/100M), RS232 (DB9 and Phoenix connector) are used for PC control
• The 3.5mm analog audio input port are bond to corresponding HDMI input port.

If HDMI 1 audio source is selected with L/R, then analog AUDIO IN LR1 (with ф3.5mm jacket)

will be selected to replace the embedded audio of the HDMI input 1 data stream. If HDMI 1

audio source is selected with EMBEDDED, then will use the original embedded audio of input

HDMI 1 as its audio data stream. If the input is DVI signal, no matter how it is set up,

system will get external analog audio input.

4.CONNECTION DIAGRAM FOR 6x6 8k 8 X 8

Hdmi Matrix Switcher Hdmi Matrix 18gbps :
