Product Details:
|
| Product Name: | 2 In 4 Out 2x4 Hdmi Splitter With Video Wall Adapter 2x2 Video Wall Controller - 4k | HDMI Compliance: | HDMI 2.0 |
|---|---|---|---|
| HDCP Compliance: | HDCP 2.2/1.4 | RS-232: | Baud Rate: 57600, Data Bit: 8, Stop Bit: 1, No Parity |
| Audio Format: | 2.0 Channel, 5.1 Channel, LPCM, Dolby, AC3, DTS | ESD Protection: | Human-body Model: ±8kV (Air-gap Discharge) , ±4kV (Contact Discharge) |
| Highlight: | 2x4 Hdmi Splitter,2x2 Video Wall Controller,2 In 4 Out Hdmi Splitter |
||
2 In 4 Out 2x4 Hdmi Splitter With Video Wall Adapter 2x2 Video Wall Controller - 4k
☆ HDMI 2.0 and HDCP 2.2 compliant;
☆ Support multi-resolution up to 3840x2160@60Hz video output for video wall;
☆ Support 2 channels HDMl loop out;
☆ Support Bezel Compensation with two modes;
☆ Support 180° rotation;
☆ Support PlP on video wall;
☆ Support RS-232 and TCP/lP control;
☆ Support CEC control with displayer by PC Tool or commands;
| Technical FOR 2 In 4 Out 2x4 Hdmi Splitter With Video Wall Adapter 2x2 Video Wall Controller - 4k | |
| HDMI Compliance | HDMI2.0 |
| HDCP Compliance | HDCP 2.2/1.4 |
| RS-232 | Baud rate: 57600, data bit: 8, Stop bit: 1, no parity |
| Input Video Formats | 3840x2160p 24/25/30/50/60Hz 1366x768 60Hz 1080p 24/25/30/50/60Hz 1360x768 60Hz 1080i 50/60Hz 1280x1024 60Hz 1920x1200 60Hz 1280x960 60Hz 1680x1050 60Hz 1280x800 60Hz 1600x1200 60Hz 1024x768 60Hz 4096x2160p 24/25/30/50/60Hz 1440x900 60Hz 1280x720p50/60Hz 1400x1050 60Hz |
| Audio Format | 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 218mm (W)×146mm (D)×43mm (H) |
| Weight | 2Kg |
| Supply Voltage | "+12V/3A |
| Power Consumption | 25W (Max) |
| HDMI Compliance | HDMI 2.0M |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | "-20°C ~ 70°C / -4°F ~ 158°F |
| Relative Humidity | 10%~50% RH (non-condensing) |

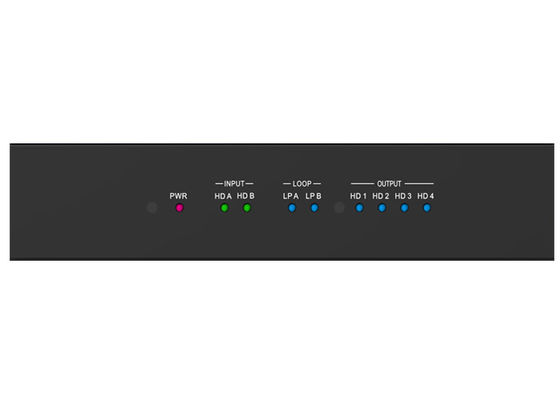

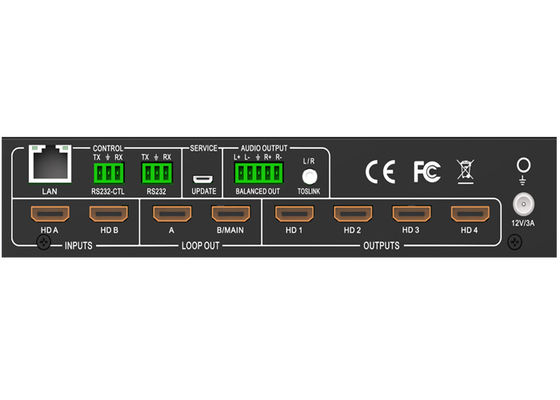

2 In 4 Out 2x4 Hdmi Splitter With Video Wall Adapter 2x2 Video Wall Controller - 4k pictures as below:
