Product Details:
|
| Band Width: | 594MHz (18Gbps), HDMI 2.0, HDCP2,2 | Audio Format: | LPCM 2.0 |
|---|---|---|---|
| Input Ports: | 4 HDMI | Output Ports: | 8 HDMI, 1 Mini Toslink Port |
| Power Supply: | 110-240VAC | Power Consumption: | 75W Max |
| Highlight: | 4k 60hz LCD Video Wall Controller,8 Output LCD Video Wall Controller |
||
4 Input 8 Output HDMI LCD Video Wall 4k 60hz display wall Controller
The Video Processor is a high-performance HDMI 2.0 video signal processor.
It can be used as a video wall splicing processor or as a seamless switching matrix switcher with4 inputs and 16 outputs.
All standalone output display or video wall display can work in multiview mode with a maximum of 4 windows.
1) Support seamless switching between different input source;
2) Comprehensive splicing display function, free multiview up to 4 window;
3) Support two synchronization mode for all output ports: General synchronization mode and Sync delay mode;
4) Supports 180° rotation function;
5) 4 Inputs and 16 Outputs:HDMI 2.0, up to 3840x2160/4096x2160@60Hz resolution;;
6) Support Auto and User Define output resolution, can be flexibly applied to the display of LED wall;
7) Support one break away audio extractor and switcher;
8) Provide multiple control ports: front panel buttons, remote control, RS232, network and WebGui control;
9)4 Input 8 Output HDMI LCD Video Wall 4k 60hz display wall Controller;
Specification:
| Band Width | 594MHz (18Gbps), HDMI 2.0, HDCP2,2 |
| Audio Format | LPCM 2.0 |
| Input ports | 4 HDMI |
| Output ports | 16 HDMI, 1 Mini Toslink port |
| Power Supply | 110-240VAC |
| Power Consumption | 75W Max |
| Operating Temperature | 0 to +40°C (+32 to +104 °F) |
| Operating Humidity | 10 to 70 % RH (non-condensing) |
| ESD | Air: ± 8KV, Contact: ± 4KV, |
| Dimensions | L430 x W220 x H44 mm |
| Mass | 5kg |

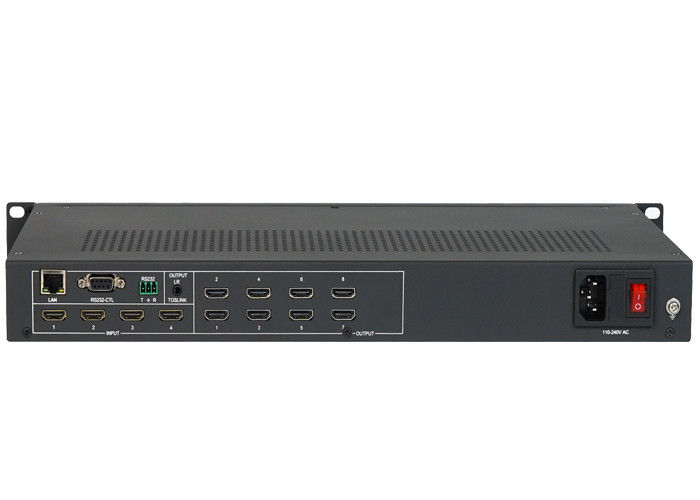

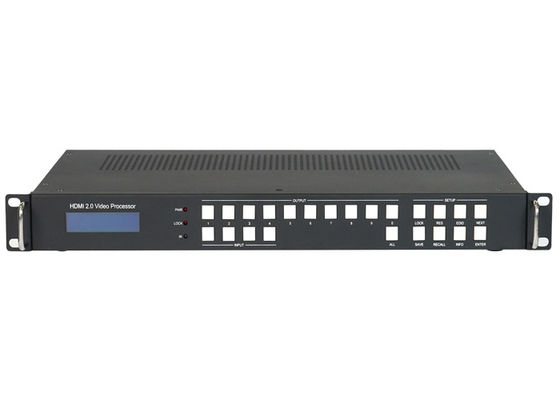

4 Input 8 Output HDMI LCD Video Wall 4k 60hz display wall Controller's pictures as below:
