Product Description:

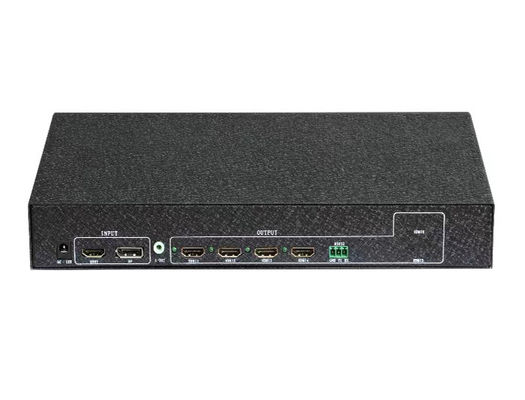

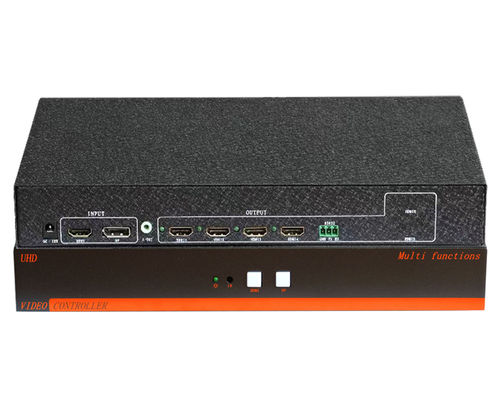

Our 1 in 4 out Video Wall Controller is a professional-grade solution designed for creating immersive multi-display video walls. With support for 4K@30Hz input and full HD 1080p output, this 1x4 video wall controller distributes a single HDMI source to 4 HDMI displays with advanced bezel compensation and multiple display modes (2x2, 1x4, etc.).
Perfect for control rooms, digital signage, and commercial display setups, this video wall controller 1 x 4 offers plug-and-play simplicity, high stability, and crystal-clear picture quality. It’s your reliable choice for a seamless video wall controller 4K experience.
Key Features:
✅ 1x HDMI Input, 4x HDMI Output – Easily distribute one HDMI source to four screens
✅ Supports 4K Input, 1080p Output – Stunning image clarity with no signal loss
✅ Multiple Video Wall Modes – Flexible layouts including 1×4 horizontal, 2×2 grid, etc.
✅ Bezel Compensation – Adjust for screen borders to create a seamless viewing experience
✅ EDID Management & Auto Scaling – Ensures optimal compatibility with various displays
✅ Plug & Play – No software or drivers needed, fast installation
✅ Metal Housing & Cooling Design – Industrial-grade build for 24/7 operation
Technical Parameters:
| Parameter |
Specification |
| Input Ports |
1× HDMI |
| Output Ports |
4× HDMI |
| Input Resolution |
Up to 4K@30Hz |
| Output Resolution |
1920×1080@60Hz (each screen) |
| Video Wall Modes |
1x4, 2x2, 4x1, clone |
| Bezel Compensation |
Supported |
| EDID Management |
Automatic / Manual |
| HDCP Compliance |
Yes (HDCP 1.4) |
| Power Supply |
DC 12V / 2A |
| Housing Material |
Full metal casing |
| Operating Temperature |
-10°C to +50°C |
Applications:
