Product Details:
|
| Interface: | HDMI,DVI,VGA,AV,USB | Resolution: | Up To 1920*1080@60Hz |
|---|---|---|---|
| Picture: | JPG、BMP、PNG | HDMI Output: | 1024*768@60hz,720P@60Hz,1080P@60Hz |
| Input Power: | DC 12V3A | Dimension (package): | 4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H) |
| Weight: | 4 Port: 1.6 Kg 5~10 Port: 2.5 KG | Product Name: | Multi Format Best Hdmi 3x3 2x3 LCD Video TV Wall Controller HDMI Video Wall Processor |
| Highlight: | 3x3 LCD Video Wall Controller,DC12V LCD Video Wall Controller,3x3 Video Wall Controller |
||

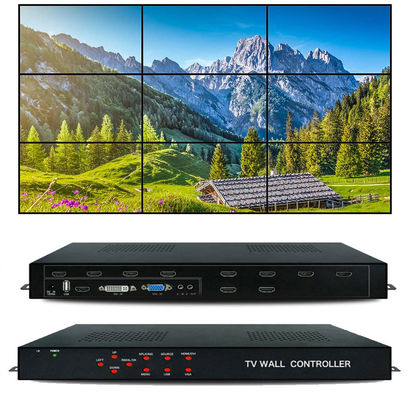

Multi Format best hdmi 3x3 2x3 LCD Video TV Wall Controller HDMI video wall processor
Features of the Multi Format best hdmi 3x3 2x3 LCD Video TV Wall Controller HDMI video wall processor:
Control Methods:
*** IR remote control
*** One female 3.5mm port for IR receiver.
*** IR remote control and 38 KHz IR receiver cable included.
Power:
*** Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapter
included.)
*** Output: 12 VDC, 2A
Dimensions of the Multi Format best hdmi 3x3 2x3 LCD Video TV Wall Controller HDMI video wall processor :
*** 4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H)

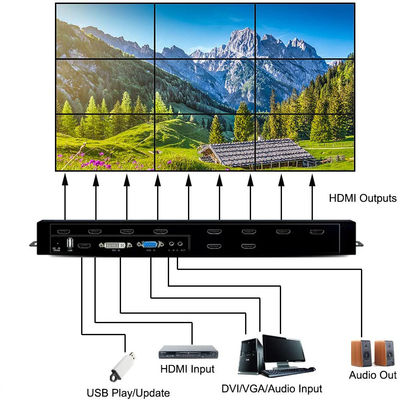

Cables:
*** Interface cables between the video source/displays and the video wall
controller are required for proper operation.
*** Supports HDMI cables connected to the input up to 25 feet.
*** Supports HDMI cables connected to the outputs up to 100 feet.
*** Use HD-xx-MM cable to connect an HDMI source or displays.
*** Use DVI-HD-xx-MM cable to connect a DVI source or displays.
*** Use VGA-xx-MM cable to connect a VGA source.
*** Use AUDIO-xx-MM cable to connect a stereo audio source or speakers.
*** Cables not included.
Specification of the Multi Format best hdmi 3x3 2x3 LCD Video TV Wall Controller HDMI video wall processor:
| Name | Specification |
| Input signal | |
| VGA |
HD15 interface and link with 1 audio interface of 3.5 Support 640*480/85HZ to 1920*1200/60HZ |
| HDMI | HDMI 1.4(HDCP 1.3) DVI 1.0 ,HDMI embed audio |
| Video | Automatic identification the syetem of NTSC,PAL and SECAM,link with 1 audio interface of 3.5 |
| USB |
Standard interface of 2.0,can insert U disk,embed audio; Support video,image,MP3,TXT |
| Output signal | |
| HDMI interface |
4 HDMI output,support joint pattern of 2*2,1*4,4*1; Support customizing output signal of 2 to 25; 1920*1080P/60HZ,1280*720,60HZ; |
| Audio | 3.5 Audio interface,support left and right channels and stereo,AV signal switch synchronously |
| others | |
| Control mode | RS232,Remote ,case key |
| Power supply | AC: 100 to 240 V |

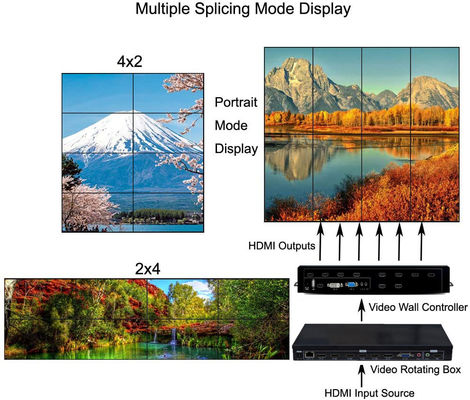

| Joint pattern | Quad standard joint,single machine customize joint of 2 to 25 |
| Power | 20W |
| Case size | |
| Dimensions(1U) | 1U 19 inch standard crate,420mm(L)x243mm(W)x60mm(H). |
| Weight(1U) | 2.5KG |
| Product name | Multi Format best hdmi 3x3 2x3 LCD Video TV Wall Controller HDMI video wall processor |
