Product Details:
|
| Protocol: | Support Hdcp1.3 Protocol, Support Hdmi1.3 Protocol, Compatible With Dvi1.0 Protocol | Interface Bandwidth: | 2.25Gbps (6.75Gbps Total, 2.25Gbps Per Color) |
|---|---|---|---|
| Maximum Support Resolution: | HDPC:1920x1200P@ 60_24bit, HDTV:1920x1080P@60_36bit | Input Ports: | 4 Channels HDMI |
| Output Ports: | 4 Channels HDMI | Color: | Black |
| Highlight: | HDMI1.3 LCD Video Wall Controller,HDPC1.3 LCD Video Wall Controller,FCC HDMI Matrix Controller |
||

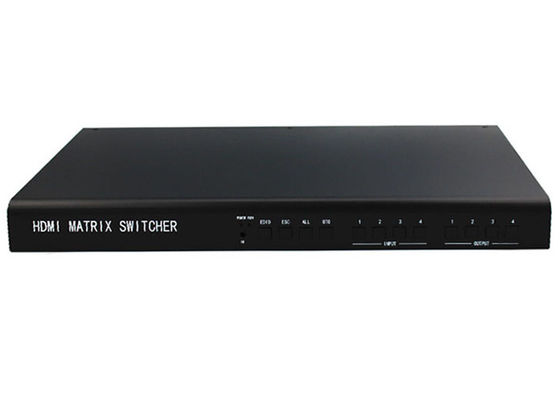

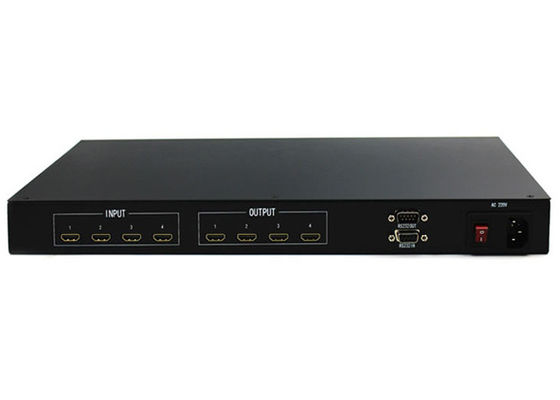

4 In 4 Out Matrix LCD Video Wall Controller HDMI1.3 HDPC1.3 Protocol
4 In 4 Out HDMI Matrix And LCD Video Wall Controller
Product overview :
Matrix Switcher is a high-performance professional switching device with embedded intelligent control.
Adopt a unique processing method that greatly improves the switching speed of the device.
Features:
1. With power-down memory function, with power-off field protection;
2. Flexible control mode, crystal button panel operation, and 2 standard rs-232 communication interfaces, compatible with various environments, convenient for users to use with various remote control devices;
3. Built-in international universal power supply;
4, Full metal chassis compatible with standard 19-inch cabinets.
5. Support matrix front panel LCD standby logo and control software.
6. Support hdcp to solve corresponding devices such as Blu-ray dvd and so on.
Technical parameters :
|
video |
|
|
protocol |
Support hdcp1.3 protocol, support hdmi1.3 protocol, compatible with dvi1.0 protocol |
|
Gain |
0 dB |
|
Interface bandwidth |
2.25Gbps (6.75Gbps total, 2.25Gbps per color) |
|
Maximum support resolution |
HDPC:1920x1200P@ 60_24bit, HDTV:1920x1080P@60_36bit |
|
Bit clock jitter |
<0.15 Tbit |
|
Bit rise time |
<0.3Tbit (20%--80%) |
|
Bit fall time |
<0.3Tbit (20%--80%) |
|
Maximum transmission delay |
5nS(±1nS) |
|
Switching speed |
200 ns (maximum time) |
|
Video input |
|
|
interface |
Vga/dvi-d/hdmi-a female interface |
|
Signal strength |
T.M.D.S +/- 0.4Vpp |
|
impedance |
50 Ω |
|
Enter edid |
Edid live rewritable |
|
Recommended maximum input distance |
Less than 40 meters at 1920x1080@60 (recommended use of certified HDMI Special wire, such as Molex TM wire) |
|
Video output |
|
|
interface |
Vga/dvi-d/hdmi-a female interface |
|
impedance |
50Ω |
|
Recommended maximum output distance |
Less than 10 meters at 1920x1200@60 (recommended use of certified HDMI-specific wires such as Molex TM wires) |
|
Control type |
|
|
Serial control interface |
Rs-232, 9-pin male and female d-type interface |
|
Baud rate and protocol |
Baud rate: 9600, data bits: 8 bits, stop bits: 1, no parity |
|
Serial control port structure |
2 = TX, 3 = RX, 5 = GND |
|
specification |
|
|
power supply |
100VAC ~ 240VAC, 50/60 Hz, international adaptive power supply |
|
temperature |
Storage and use temperature: -20° ~ +70° |
|
humidity |
Storage and use humidity: 10% ~ 90% |
|
Chassis size |
Subject to actual model |
|
product weight |
Subject to actual model |
|
Mean time between failures |
30,000 hours |
|
Warranty |
1 year free warranty, lifetime maintenance |
