Product Details:
|
| HDMI Compatible: | HDMI 1.3/fiber Optic Extender | DVI Compatible: | DVI 1.0/fiber Optic Extender |
|---|---|---|---|
| Video Bandwidth: | 10.2Gbps | Transmission Distance: | 2KM |
| Transmitter: | Input Port: 1 X DVI-D [19-pin Female] 1 X Micro USB Output Port: 1 X FIBER | Receiver: | Input Port: 1 X FIBER1 X Micro USB Output Port: 1×DVI-D [19-pin Female] |
| HDMI Audio Format: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD | Video Resolution: | 480i ~1080p50/60Hz, HDMI Resolution Up To 4K30HZ Backward Compatible |
| Highlight: | Pro-Grade DVI Fiber Extender,2KM DVI Fiber Extender,HDMI 4K30HZ DVI Fiber Extender |
||

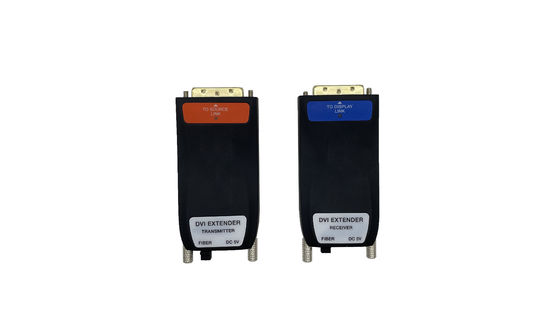

MINI DVI Fiber Cable Extender is a miniaturized device used to solve the problem of long-distance high-speed transmission of
DVI/HDMI video images. MINI DVI fiber optic extender can support EDID learning, compatible with different display devices
with different resolutions. DVI fiber optic extender includes a signal transmitter and a receiver, using USB power supply, can be
powered through the projector, display, video processing equipment USB interface, to solve the problem of on-site installation
power supply. The device is transmitted through a single mode optical fiber, which can travel up to 2KM. The biggest feature
of the product is small, easy to install, low heat.
Product Features:
Technical Parameters:
| Video | HDMI compatible | HDMI 1.3/fiber optic extender |
| DVI compatible | DVI 1.0 | |
| Video bandwidth | 10.2Gbps | |
| Video resolution | 480i ~1080p50/60Hz, 1920x1200@60Hz; HDMI resolution up to 4K30HZ backward compatible | |
| Color space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 | |
| Color depth | 8/10/12-bit (1080P60Hz) | |
| HDMI audio format |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
|
| Transmission distance | 2KM (single-mode optical fiber), does not support multi-mode optical fiber transmission | |
| Electrostatic protection | Human body model: ±8kV (air discharge), ±4kV (contact discharge) | |
| Port | transmitter |
Input port: 1 x DVI-D [19-pin female] 1 x Micro USB Output port: 1 x FIBER |
| receiver |

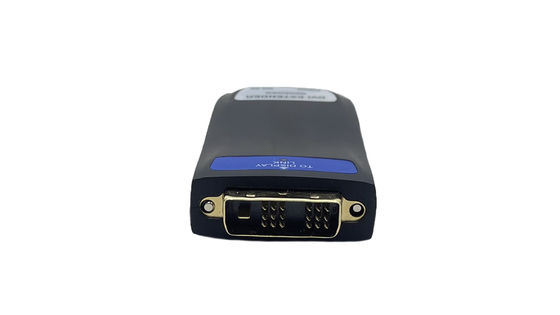

Input port: 1 x FIBER1 x Micro USB Output port: 1×DVI-D [19-pin female] |
|
| Fuselage | shell | Zinc alloy shell |
| colour | Black | |
| dimension | Transmitter/receiver: 75.5mm(L)× 41mm(W)×16.5mm(H) | |
| weight | Transmitter: 113g, receiver: 111g | |
| Power source | DC 5V/1A | |
| Maximum power consumption | Transmitter: 2.74W (Max), receiver: 3.03W (Max) | |
| Operating temperature | 0-40℃ | |
| Relative humidity | -20-90%RH (non-condensing) | |
| Storage temperature | - 20-60℃ |
Application and Scene:
The fiber optic extenders are widely used in stage rental, exhibition, foreign language travel, video conferencing, rail transit, radio and television
and other different industries
The fiber optic extender ideal for connecting Mini DVI sources, such as laptops and graphic workstations, to high-resolution displays and projectors in conference rooms, auditoriums, and event venues, ensuring top-notch video quality over long distances.
DVI fiber optic extender is perfect for retail environments, airports, and public spaces where clear and vibrant visuals are essential. The extender enables the connection of media players to large displays, facilitating effective advertising and information dissemination.
DVI fiber optic extender used in classrooms and lecture halls to connect computers and interactive displays, allowing educators to present multimedia content clearly to students, enhancing the learning experience.
