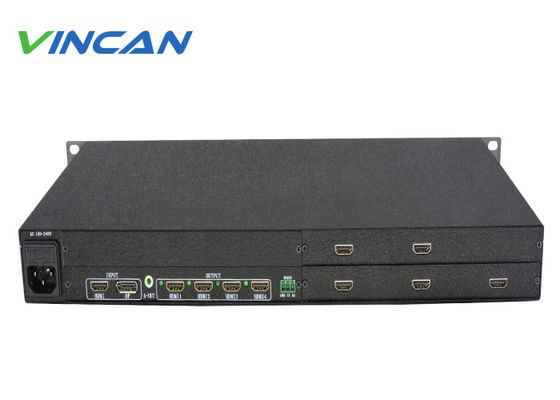

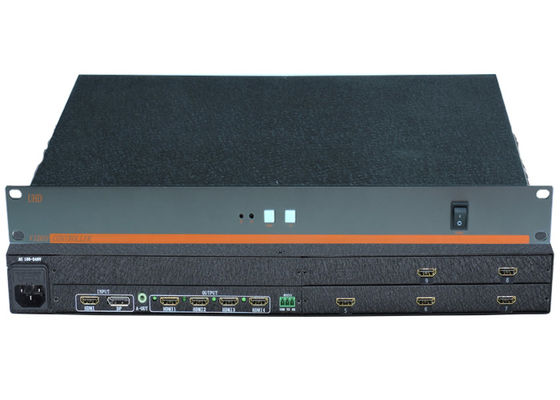

4K 1 in 9 Out Video Wall Controller HDMI Splitter for 3x3 LCD Display Setup

Product Description:

The 1in 9 Out Video Wall Controller (also known as 3x3 Video Wall Controller or 9-Screen Display Processor) is a professional-grade multi-display control device. It splits a single HDMI input into 9 independent outputs for seamless video wall stitching, individual screen display, or hybrid layout configurations. Designed for high-definition video walls, this 4K video wall controller (supports 1080P@60Hz input; outputs achieve 4K-equivalent tiled resolution) delivers flexible control for command centers, digital signage, and broadcast environments.

Multi-Mode Display Processing

13 layout modes (1×1, 1×2, 2×1, 3x3 video wall, etc.) with one-click switching between full-wall stitching, single-screen display, or custom zones.

Cascading support for larger video walls (e.g., 18/27 screens).

4K Video Wall Capability

Processes 1080P@60Hz inputs with 24-bit color depth (16.7M colors). Outputs combine to display 4K content (5760×3240 total resolution) via pixel-perfect mapping technology.

Seamless Stitching Technology

Edge-blending algorithms eliminate physical bezel gaps.

HDMI embedded audio synchronization + Genlock support for zero-latency refresh.

Industrial Reliability

Power-fail memory for instant configuration recovery.

Technical Parameters:

Applications:

Command & Control Centers

Create 3x3 video wall systems for traffic monitoring and emergency dispatch.

Digital Signage & Advertising

Drive 9-screen video walls in malls/exhibitions for dynamic ads with split-screen promotions.

Public Information Displays

Deploy in airports/stations for synchronized flight schedules + emergency alerts.

Entertainment & Live Events

Power immersive stage backdrop walls for concerts.

Corporate AV Systems

Enable 4K video + PPT + live data multi-window presentations in boardrooms.
