8 In 4 Out HDMI Matrix Switcher Efficiently Manage Multiple Devices

Product description :

IT' series matrix switcher is a high-performance video signal professional switching device for cross-switching of multiple

video signal input and output. It adopts advanced high-performance image processing chip to minimize signal transmission

attenuation, image and The sound signal can be high fidelity output.

The IT' series matrix is mainly used in broadcasting and television engineering, multimedia conference halls, large-screen

display engineering, television teaching, command and control centers and other occasions. This product supports chassis

keys, infrared remote control, RS-232 serial port, TCP/IP (non-standard) and open control code for central control.

The IT' series matrix switcher is divided into 2U chassis and 3U chassis ,6U chassis according to the input and output scale.

This user manual uses 16x16 matrix switcher as an example to describe the operation instructions. Other IT'Sseries matrix

switchers operate in the same way.

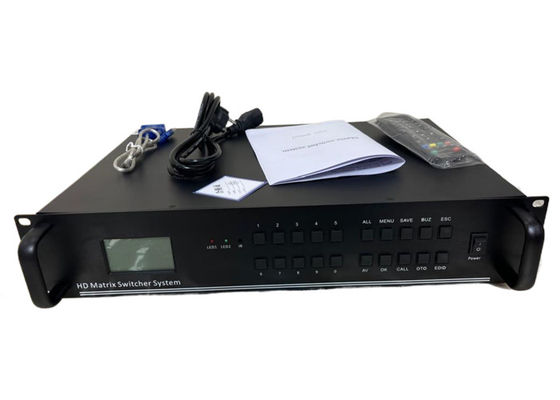

The front panel:

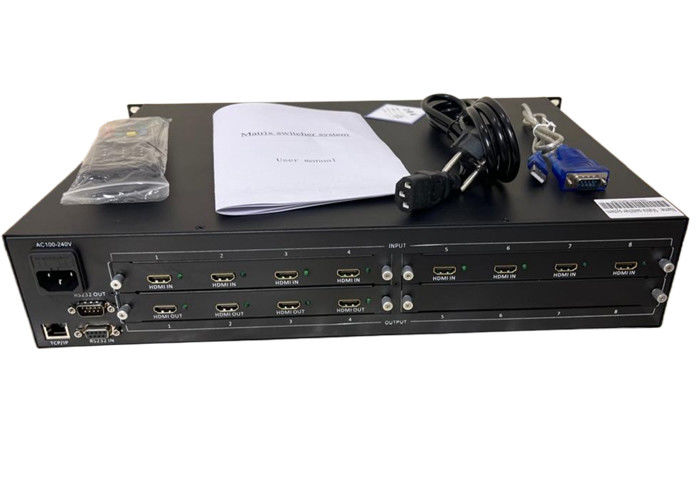

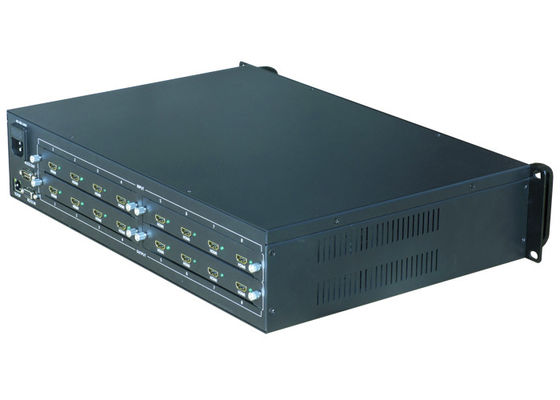

The rear panel:

Features:

1. Input and Output Interface Description;

The product adopts the plug-in design method, and the input and output can be freely configured according to the demand.

The input and output modules of IT'Sseries matrix switcher are single card 4 channels. Currently, HDMI input board,

DVI input board, HDMI output board, DVI output board can be configured..

2. Communication port and connection method;

The IT'Smatrix provides a standard RS-232 serial communication port and a LAN network control port.

In addition to the front panel buttons for switching operations, the IT'Smatrix allows users to control using

various control systems or remotely via Ethernet. Ethernet control can be expanded with optional Ethernet interface accessories.

3. IT'Smatrix connection to control system;

The IT'SSeries matrix can be controlled using a variety of control systems to control the matrix via an RS-232 serial

interface or an optional Ethernet control port.

4. IT'Smatrix and control computer connection;

IT'Sseries matrix switcher can be equipped with DVI and HDMI input/output modules.

Users can connect various computer signals, audio and video signal devices, such as DVD players,

desktop computers, graphics workstations, digital display consoles, etc. according to different occasions.

The terminals can be connected to projectors, video recorders, computer monitors, amplifiers, etc.

System topology:
