Product Details:
|
| EDID Support: | Yes | Operating Temperature: | 32°F To 104°F |
|---|---|---|---|
| Input Resolution: | Up To 1080p | Differential Impedance: | 100+5ohm |

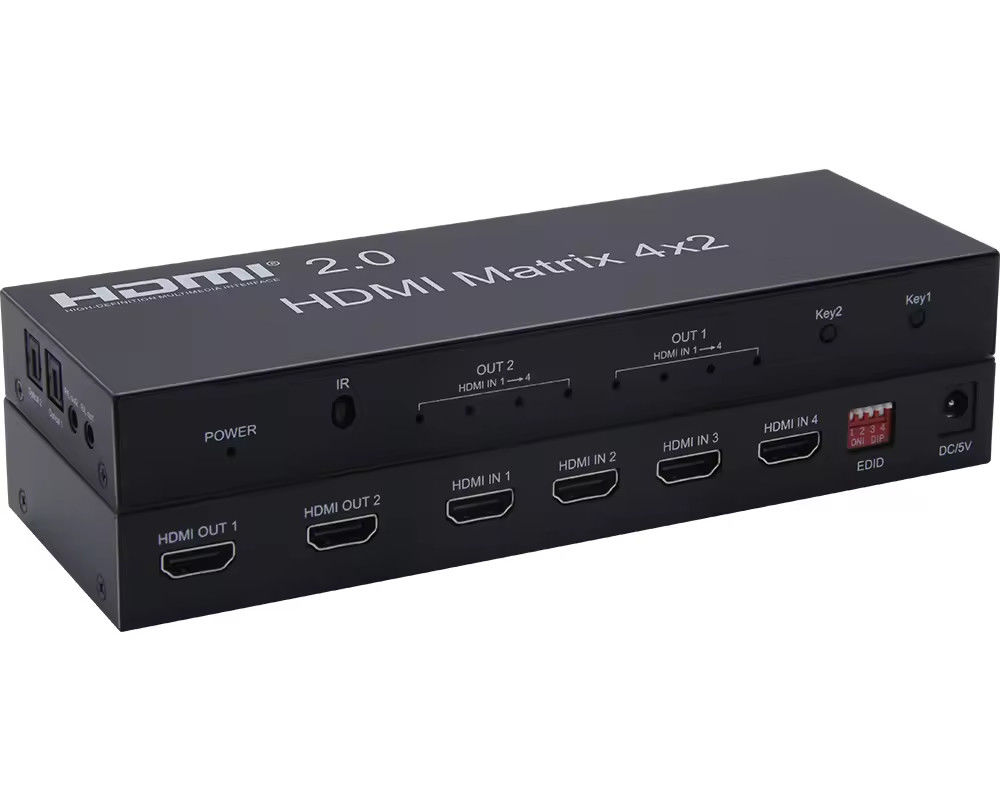

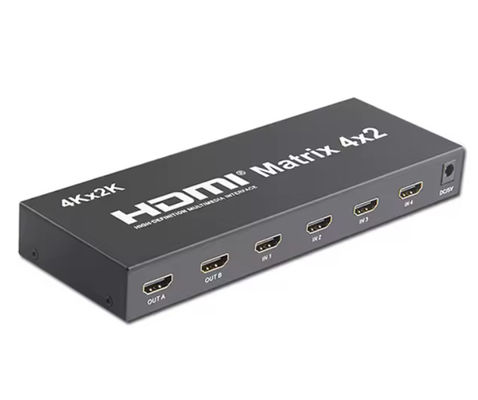

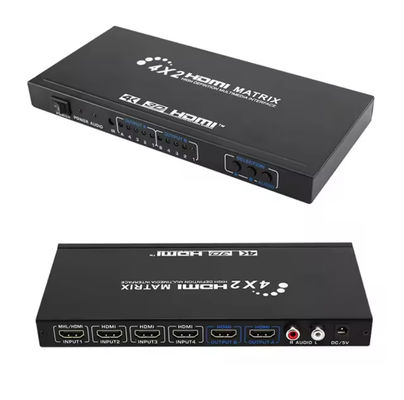

| Video Bandwidth: | 225MHz | Name: | 6x4 4k Hdmi Matrix Switcher Extender 4x2 Hdmi Matrix Switch Box |
| Controls: | Front Panel, IR Remote, RS-232, Ethernet | Inputs: | HDMI, VGA, DVI, Component, Composite |
| Highlight: | Metal Alloy hdmi Matrix Switche,2 Output hdmi Matrix Switche,Optical Fiber hdmi Matrix Switche |
||
The 8 input 8 output 1080P HDMI matrix switcher is a powerful video switching device that supports four HDMI inputs and two HDMI outputs. It allows you to switch any input signal to any output port, providing great flexibility and convenience. Additionally, it supports a high-definition resolution of 1080P, ensuring clarity and stability of the video signal. Whether it's for home entertainment, commercial displays, or conference presentations, this HDMI matrix switcher offers an exceptional video switching experience."
Input/Output Ports:
HDMI Inputs: The HDMI Matrix Switcher typically comes with multiple HDMI input ports (e.g., 4x4, 8x8, 16x16), allowing multiple sources like Blu-ray players, gaming consoles, and computers to be connected simultaneously.
HDMI Outputs: The same number of HDMI output ports enables the connection of multiple displays, such as TVs, projectors, or monitors.
Supported Resolutions:
The HDMI Matrix Switcher supports a range of resolutions, including 720p, 1080p (Full HD), and 4K (3840x2160 or 4096x2160), ensuring compatibility with high-definition content.
Some models also support 3D video formats.
Audio Formats:
Compatible with various audio formats, including PCM, Dolby Digital, Dolby TrueHD, and DTS-HD Master Audio, providing high-quality audio output alongside video.
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance: | HDCP 2.2 and HDCP 1.4 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution: | Up to 4K2K@50/60Hz (4:4:4) | ||
| HDMI Audio Formats (Pass-through): | LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | ||
| Input: | AC 100 - 240V 50/60Hz | ||
| Output: | DC 12V/5A (US/EU standard, CE/FCC/UL certified) | ||
| Power Supply |
Input: AC 100 - 240V 50/60Hz Output: DC 12V/5A (US/EU standard, CE/FCC/UL certified) |
||
| Control Ports |
1×TCP/IP [RJ45] 1×RS-232 [D-Sub 9] |
||
| Resolution /Cable /Length |
4K60 - Feet / Meters |
4K30 - Feet / Meters |
1080P60 - Feet / Meters |
The applications of HDMI matrix switchers are quite extensive. Primarily, they are used in the following scenarios:
Home Entertainment Systems: In home entertainment systems, HDMI matrix switchers enable the switching of multiple HDMI sources (such as TVs, DVDs, game consoles, cameras, etc.) to a single television or projector. This allows users to easily switch between different entertainment devices and enjoy the visual and audio experience brought by high-definition content.
Business Presentations and Educational Training: HDMI matrix switchers play a crucial role in business presentations and educational training sessions. They facilitate the switching of multiple HDMI sources (like computers, projectors, cameras, etc.) to one or multiple display devices, enabling more flexible presentation options.
Conference Rooms and Control Centers: In conference rooms and control centers, HDMI matrix switchers enable the seamless switching of various HDMI sources (such as computers, video conferencing equipment, surveillance cameras, etc.) to one or multiple display devices. This enhances the efficiency of meetings and control operations.
Moreover, HDMI matrix switchers boast advantages like high-definition picture quality, high-speed transmission, multi-path switching, strong compatibility, and ease of operation. These features make them suitable for various scenarios, enhancing overall usage efficiency and flexibility.
