Product Details:
|
| Inputs/Outputs: | 8/8 | HDCP2.2 Support: | Yes |
|---|---|---|---|
| Max. Power Consumption: | 20W | Output Resolution: | Up To 4Kx2k@60Hz |
| Output: | 3840x2160@30Hz | Controls: | Front Panel, IR Remote, RS-232, Ethernet |
| Outputs: | HDMI, VGA, DVI, Component, Composite | Inputs: | HDMI, VGA, DVI, Component, Composite |
| Highlight: | Rs232 HDMI Matrix Switcher,8x8 HDMI Matrix Switcher,4K30HZ HDMI Matrix Switcher |
||
The Video Matrix Switcher is a professional-grade product designed for seamless video switching and distribution. With its advanced features and capabilities, it is the perfect solution for various applications such as conference rooms, classrooms, and home theaters.
The Video Matrix Switcher supports Extended Display Identification Data (EDID) which allows for automatic recognition of connected devices and optimal resolution and refresh rate settings. This ensures a hassle-free and high-quality video experience.
The Video Matrix Switcher offers multiple output options to cater to various display devices. These outputs include HDMI, VGA, DVI, Component, and Composite, giving you the flexibility to connect to different types of displays.
With a maximum power consumption of only 20W, the Video Matrix Switcher is an energy-efficient device that helps you save on electricity costs. Its low power consumption also reduces heat and extends the product's lifespan.
Experience crystal-clear and high-definition video with the Video Matrix Switcher's impressive output resolution of up to 4Kx2k@60Hz. This allows for stunning visuals and smooth video playback, making it ideal for presentations, gaming, and more.
The Video Matrix Switcher boasts a video bandwidth of 225MHz, ensuring smooth and uninterrupted video transmission. This makes it suitable for high-resolution and high-speed video applications, such as 4K gaming and live streaming.

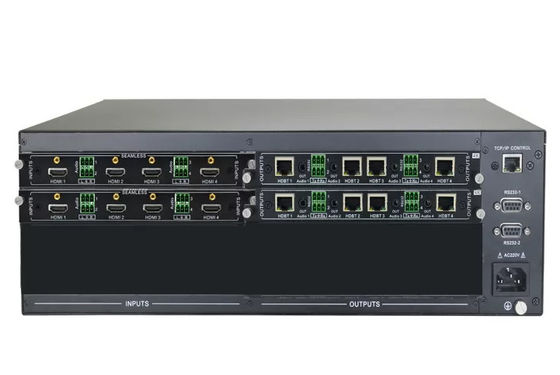

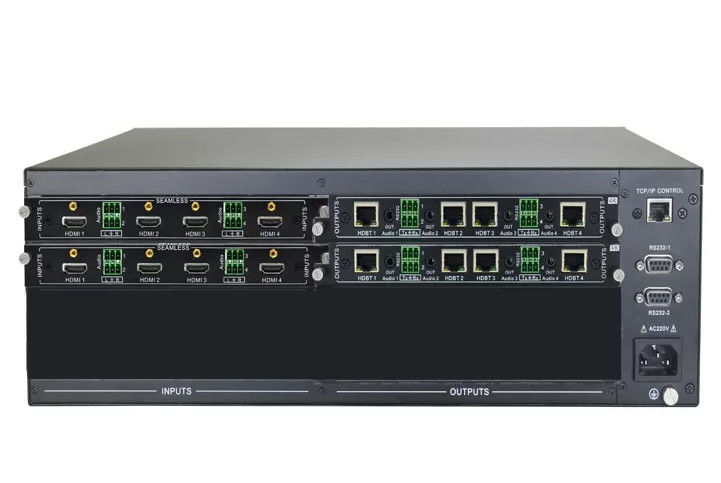

The Video Matrix Switcher comes with 8 x 8 HDMI HDBaseT Matrix and 4 pcs of 70 meters receivers, providing a complete solution for long-distance video transmission. This allows you to connect up to four sources to four displays over a distance of 70 meters, making it ideal for large venues and installations.
Overall, the Video Matrix Switcher is a reliable and versatile product that offers advanced features and capabilities for a seamless and high-quality video experience. Its compact and sleek design, along with its ease of use, makes it a must-have for any professional setting.
| Model | WL-HDVM0808 | WL-HDVM1616 | WL-HDVM3232 | WL-HDVM6464 | ||
| Interface | Input channels/Input cards | 8 channels/ 2 cards | 16 channels/4 cards | 32 channels/8 cards | 64 channels/16 cards | |
| Output channels/ output cards | 8 channels/ 2 cards | 16 channels/4 cards | 32 channels/8 cards | 64 channels/16 cards | ||
| Input modes | CVBS,YPbPr,VGA,HDMI,DVI,3GSDI+ AUDIO,3GSDI,HDBaseT and Fiber | |||||
| Output mode | CVBS,YPbPr,VGA,HDMI,DVI,3GSDI+ AUDIO,3GSDI,HDBaseT and Fiber | |||||
| Bandwidth | 10.2Gbps | |||||
| Control | RS232 control | Control protocol | RS232(Baud rate :115200, Data Bits:8, Stop Bits:1,no parity bit) | |||
| Connector | 9 needles D-sub(DE9F) outlet 3=TX 2=RX 5=GND | |||||
| TCP&IP control | Control protocol | TCP/IP | ||||
| Connector | RJ45 joint 10/100Base-T Ethernet | |||||
| Electrostatic protection | Human-body discharge pattern: ±8kV (Air-Gap Discharge) ±4kV (Contact Discharge) | |||||
| Power | 12 V/3 A DC (US/EU Standard, CE/FCC/UL Certified) | |||||
| Input voltage | Power100VAC~260VAC,50/60 Hz, International adaptive power 23W (Maximum)/ 0.5w(Standby) | |||||
| Operating Temperature | 0ºC~40ºC | |||||
| Storage Temperature | −20ºC~60ºC | |||||
The Winlink WLP-HDVM is a high-performance video matrix switcher that is perfect for a variety of applications and settings. With its versatile features and reliable performance, this product is a must-have for any professional audio-visual setup.
As a leading brand in the audio-visual industry, Winlink is proud to present the WLP-HDVM, a 18Gbps 8 x 8 HDMI matrix switcher that is designed to deliver exceptional video quality and seamless switching capabilities. This product is manufactured in China Mainland and has obtained CE, FCC, and Rohs certifications, ensuring its quality and safety.
The WLP-HDVM is suitable for a wide range of applications, such as conference rooms, classrooms, control centers, and home entertainment systems. It is also ideal for events and presentations where multiple sources need to be displayed on different screens simultaneously.
One of the key features of the WLP-HDVM is its 18Gbps bandwidth, which allows for high-resolution video up to 4Kx2k@60Hz. This means that users can enjoy crystal-clear images and smooth video playback without any lag or distortion. The 8 x 8 HDMI matrix design also enables users to connect up to four input sources and four output displays, providing ultimate flexibility and convenience.

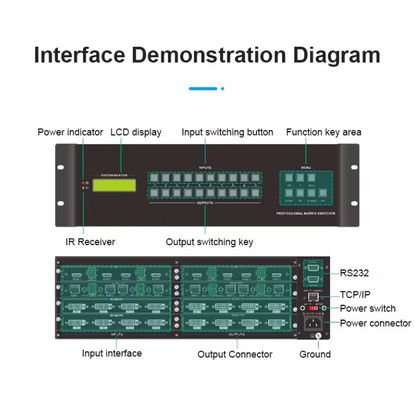

The WLP-HDVM is equipped with various controls, including a front panel, IR remote, RS-232, and Ethernet, allowing users to switch between sources and control the matrix from multiple locations. It also supports EDID, which ensures that the connected displays receive the correct video resolution and audio format for optimal performance.
With a minimum order quantity of only 1 unit, the WLP-HDVM is suitable for both small and large-scale installations. And with a supply ability of 1000 sets per week, it is readily available for any urgent needs. The price of this product is only available upon request, so please contact us for more information.
The WLP-HDVM is also designed with convenience in mind. It comes in a standard export package, making it easy to transport and install. The delivery time is only 2-3 days, ensuring that customers receive their products in a timely manner.
In conclusion, the Winlink WLP-HDVM 18Gbps 8 x 8 HDMI Matrix Switcher is a reliable and high-quality product that is suitable for a variety of applications. With its advanced features, convenient controls, and quick delivery, it is the perfect choice for any professional audio-visual setup. Order yours today and experience the ultimate in video switching technology!
