Product Details:
|
| Display Resolution: | 1920x1080 | Viewing Angle: | 178° |
|---|---|---|---|
| Control Method: | Remote Control/RS232 | Switching Speed: | 200 Ns (maximum Time) |
| Output Signal: | HDMI/VGA/AV/YPbPr/USB | Name: | LCD Video Wall Controller |
| Input Signal: | HDMI/VGA/AV/YPbPr/USB | Wall Modes: | 2x2 ,2x3,3x2,4x1,4x2,3x3,etc, |
| Highlight: | 178° LCD Video Wall Controller,YPbPr Output LCD Video Wall Controller |
||

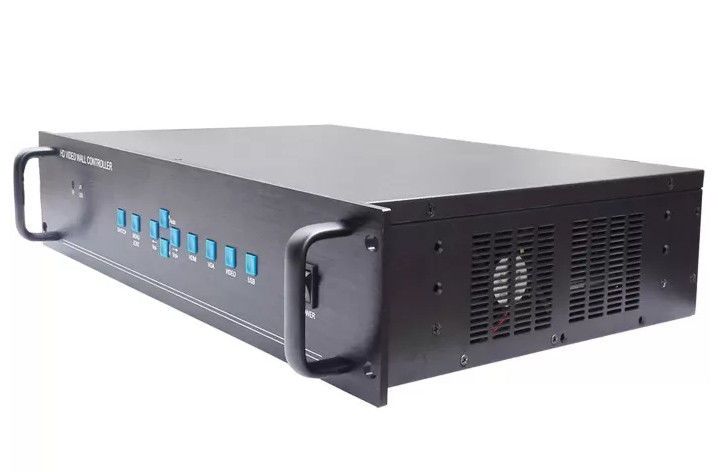

The LCD Video Wall Controller is a core device designed to manage multiple LCD screens, transforming them into a large, seamless video wall. It is widely used in surveillance centers, command rooms, corporate meeting spaces, and advertising displays. The LCD Video Wall controller can distribute input video signals to multiple LCD displays, supporting various display modes such as full screen, split screen, zoom, and overlay. With its high-performance image processing capabilities, it ensures crisp and smooth visuals even at high resolutions.
This LCD Video Wall controller enables users to control and manage multiple signal sources via intuitive software, allowing for real-time switching and flexible video wall configuration. It meets the demands of various applications requiring large-scale screen displays.

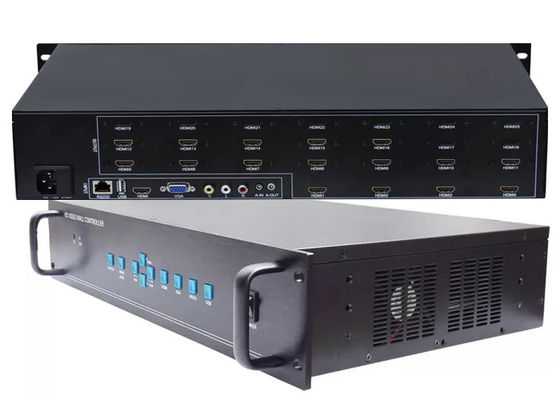

| Input signal | |
| VGA |
HD15 interface and link with 1 audio interface of 3.5 Support 640*480/85HZ to 1920*1200/60HZ |
| HDMI | HDMI 1.4(HDCP 1.3) DVI 1.0 ,HDMI embed audio |
| Video | Automatic identification the syetem of NTSC,PAL and SECAM,link with 1 audio interface of 3.5 |
| USB |
Standard interface of 2.0,can insert U disk,embed audio; Support video,image,MP3,TXT |
| Output signal | |
| HDMI interface |
4 HDMI output,support joint pattern of 2*2,1*4,4*1; Support customizing output signal of 2 to 25; 1920*1080P/60HZ,1280*720,60HZ; |
| Audio | 3.5 Audio interface,support left and right channels and stereo,AV signal switch synchronously |
| others | |
| Control mode | RS232,Remote ,case key |
| Power supply | AC: 100 to 240 V |
| Joint pattern | Quad standard joint,single machine customize joint of 2 to 25 |
| Power | 20W |
| Case size | |
| Dimensions(1U) | 1U 19 inch standard crate,442mm(L)*45mm(H)*242mm(W) |
| Weight(1U) | 2.5KG |
The LCD Video Wall Controller is suitable for a variety of applications and scenarios, such as:
