Product Details:
|
| Storage Temperature: | -30~70℃ | Display Resolution: | 1920x1080 |
|---|---|---|---|
| Power Consumption: | 150W | Power Supply: | AC100-240V |
| Display Ratio: | 16:9 | Control Method: | Remote Control/RS232 |
| Input Signal: | HDMI/VGA/AV/YPbPr/USB | Hdmi Output: | 1024*768@60hz,720P@60Hz,1080P@60Hz |
| Highlight: | 150W LCD Video Wall Controller,ODM LCD Video Wall Controller |
||

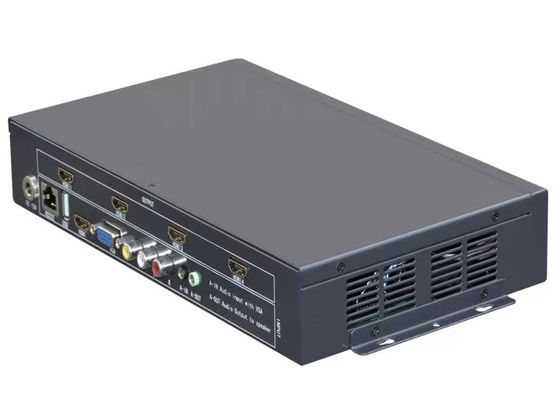

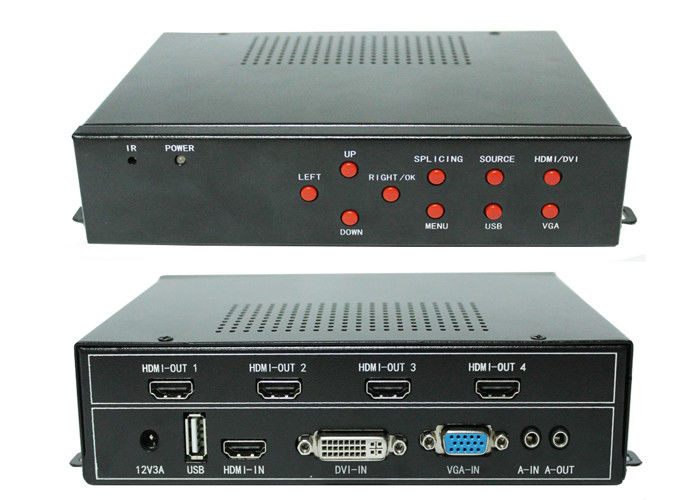

The LCD Video Wall Controller is a high-performance device designed to manage and display content across multiple LCD screens seamlessly. It allows users to create large-scale, immersive video walls with ultra-high resolution and excellent synchronization. This controller is ideal for a variety of industries, providing precise control over content distribution to ensure a clear, vibrant, and consistent display across multiple panels.
Featuring advanced signal processing, the LCD Video Wall Controller supports multiple video inputs and outputs, allowing flexibility in configuration. With capabilities like 4K support, dynamic scaling, and real-time switching, it ensures smooth operation even in demanding environments.
| Item | Specification |
| HDMI input | |
| Interface | HDMI(support HDCP1.3 and DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| DVI input | |
| Interface | DVI(support DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| VGA input | |
| Interface | DB15 |
| Resolution | 800*600 to 1920*1080@60Hz |
| AV input | |
| Interface | RCA |
| Identification | Auto |
| Standard | PAL,NTSC |
| USB | |
| Video | RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution up to 1080P |
| Audio | MP3,WMA,FLAC and so on |
| Picture | JPG,BMP,PNG |
| Text | TXT |
| Audio in | Fit for VGA video |
| Audio output | Fit for output video |
| HDMI output | 1024*768@60hz,720P@60Hz,1080P@60Hz |
| Controller | Remote, button key, RS232 serial port |
| Power | Input:DC 12V3A |
| Dimension (package) |
4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H) |
| Weight |
4 port: 1.6 Kg 5~10 port: 2.5 KG |
