Introduction
This device is a seamless multi-format presentation switcher with 7 HDMI 2.0 inputs, 1 Display Port input
and 1 USB-C (Video and Audio only) input. It provides three mirrored outputs – HDMI A, HDMI B for local
display and HDBaseT output for a remote HDBaseT receiver and display.
It provide 4 balanced LR audio inputs and 2 microphone inputs
This device support display multiple sources on a single screen up to 4 display window
User can easily manage it via the front buttons,Remoter,RS232, TCP/IP commands.
Provide up to 20 display scene to save or load

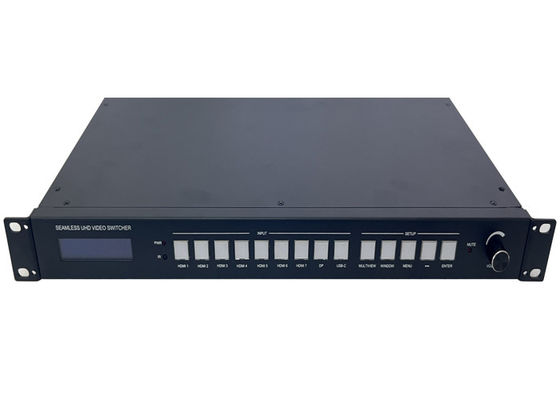

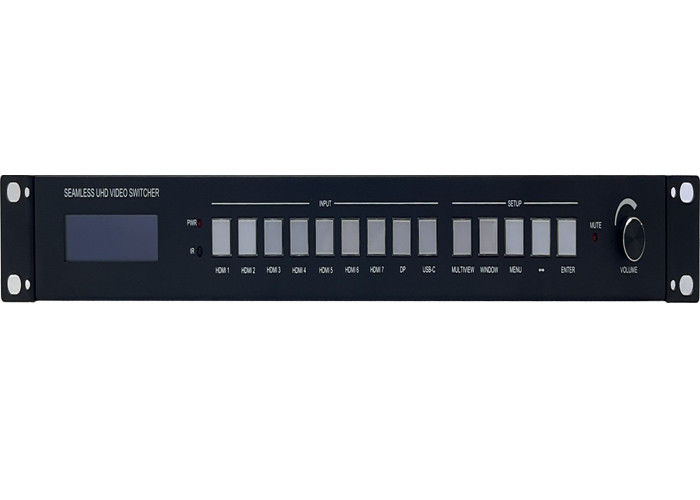

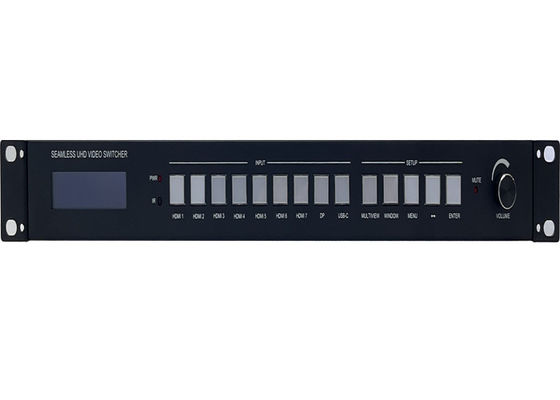

Front
| Name | Description |
| Power LED | Lit when the switcher is powered |
| IR sensor | Remoter receiver |
|
HDMI 1, 2…,7, |
Total 9 inputs to be selected |
| MULTIVIEW |
Press this button to loop select PIP, PBP, 3xWIN, 4xWIN display mode. When switcher work on single mode, then press Multiview button to select the last Multiview mode (PIP,PBP, 3xWIN or 4xWIN). |
| WINDOW | Press this button, then the screen will show up one yellow border on window 1. Continue press this button the border will be shown on window 2 or 3… then press one button such as HDMI 1, and then HDMI 1 will displayed on the current selected window |
|
MENU, ↔ , |
Three buttons to setup the system with front panel OSD navigation:
|
| MUTE LED | Lit when audio muted |
| Audio Knob |
Left or right rotation to control overall audio volume (main audio and two microphones audio) |

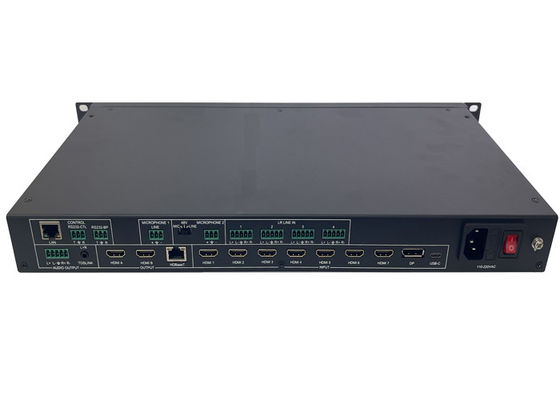

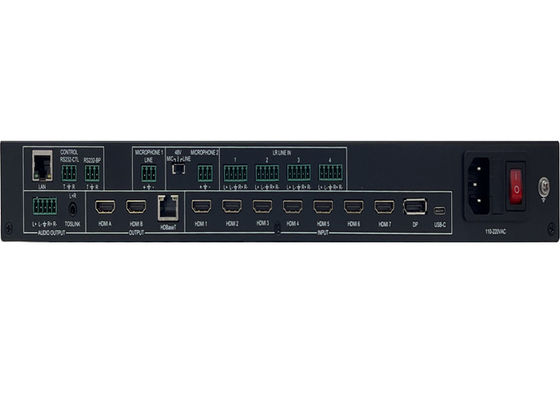

Rear
| Name | Description |
| Audio outputs |
Balanced L+R output, |
| Outputs | HDMI A, HDMI B, HDBaseT |
| INPUTs | HDMI 1, …, HDMI 7, DP, USB-C |
| LAN |
TCP/IP control. Default parameters as following |
| RS232 control |
Default baud rate 9600, 8 data bits, 1 stop bit, no parity |
| RS232-BP | Pass through RS232-CTL commands |
| Microphone 1 | Microphone-Line input |
| Microphone 2 | Microphone input, there are three options with slide switch to select: 48V Phantom, MIC, LINE |
User can select following EDID modes by RS232 command or front panel
| Number | EDID mode | Number | EDID mode |
| 1 | 4K60-2.0CH | 11 | 1440x900 |
| 2 | 4K60-5.1CH | 12 | 1360x768 |
| 3 | 4K30-2.0CH | 13 | 1280x1024 |
| 4 | 4K30-5.1CH | 14 | 1024x768 |
| 5 | 1080P-2.0CH | 15 | AUTO |
| 6 | 1080P-5.1CH | 16 | 4K60-7.1CH |
| 7 | 720P | 17 | 4K30-7.1CH |
| 8 | 1920x1200 | 18 | 1080P-7.1CH |
| 9 | 1680x1050 | 19 | USER |
| 10 | 1600x1200 |
The HDMI output support 3 HDCP options: FORCE-1.4, FORCE-2.2, FORCE-OFF
User can select it by RS232 command
