Product Details:
|
| Highlight: | UHD Video Switcher,Seamless multiview switcher,UHD Video Switcher With Multiview |
||
|---|---|---|---|
Introduction
The 5x Inputs and 2x Outputs seamless multiview video switcher was developed for the purpose of multiple sources displayed on a single screen, supporting high input and output resolutions.
HDBaseT mirrored output port can be used for long distance video transmission
User can easily manage it via the front buttons, IR remoter or RS232 commands.
Application Field:
Home Theatre; Video Conference; Security Monitoring; Presentation and Broadcasting; Teaching System; Financial Stock Analysis; Game E-Sports; Medical Display.
Outputs: 1x HDMI, 1x HDBaseT,1x 3.5mm L/R output
Fast switching on non-single window display modes
Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
| Name | Description |

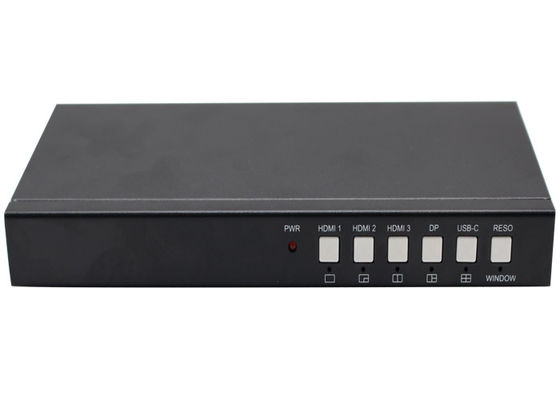

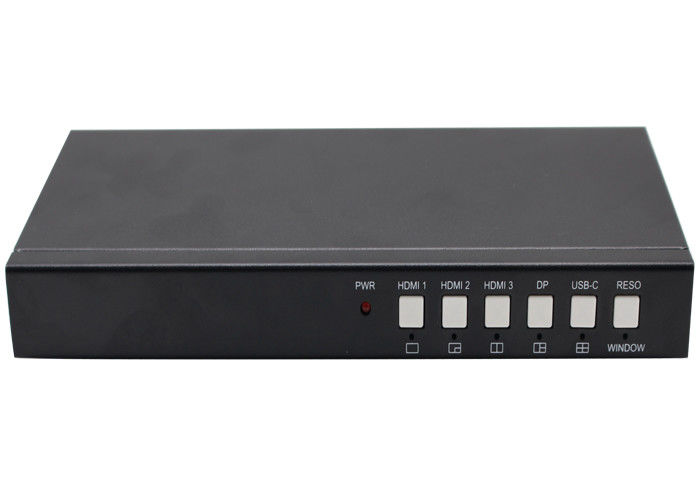

| HDMI 1 | Press HDMI 1 button to select HDMI 1 as the input source. |
| HDMI 2 | Press HDMI 2 button to select HDMI 2 as the input source. |
| HDMI 3 | Press HDMI 3 button to select HDMI 3 as the input source. |
| DP | Press DP button to select DP as the input source. |
| USB-C | Press USB-C button to select USB-C (video only) as the input |
| WINDOW | Press this button, the screen will show up one yellow border on window 1. Continue press this button the border will be shown on window 2 or 3… then press one input button such as HDMI 1, and then HDMI 1 will displayed on the current selected window. |
Please note: Press HDMI 3 and DP at the same time can enable/disable AUTO SWITCH function when SINGLE window display mode
Rear

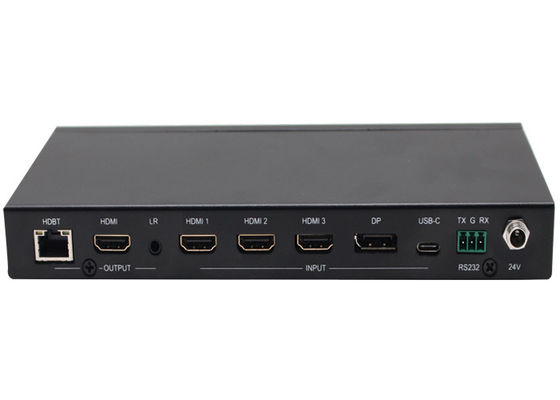

| Name | Description |
| HDBT out | HDBaseT Scaling output up to 3840x2160@60 |
| HDMI out | HDMI scaling output up to 3840x2160@60 |
| LR out | 3.5mm LR stereo audio output, 20Hz ~ 20kHz, 1.5Vrms max |
| INPUTs | HDMI 1, HDMI 2, HDMI 3, DP, USB-C |
| RS232 | External RS232 control |
| 24V | 24V power adapter to plug in |
USB-A port is here is only for firmware upgrade
| Number | Description |
| 1 | Return/Exit |
| 2 | Video input selection |
| OSD menu navigation |
| 4 | Multiview mode selection |
| 5 | Audio input selection |
| 6 | Reserved |
User can select following EDID modes by RS232 command or OSD menu navigation
| Number | EDID mode | Number | EDID mode |
| 1 | 4K60-2.0CH | 10 | 1600x1200 |
| 2 | 4K60-5.1CH | 11 | 1440x900 |
| 3 | 4K30-2.0CH | 12 | 1360x768 |
| 4 | 4K30-5.1CH | 13 | 1280x1024 |
| 5 | 1080P-2.0CH | 14 | 1024x768 |
| 6 | 1080P-5.1CH | 15 | AUTO |
| 7 | 720P | 16 | 4K60-7.1CH |
| 8 | 1920x1200 | 17 | 4K30-7.1CH |
| 9 | 1680x1050 | 18 | 1080P-7.1CH |
| 19 | USER |
The HDMI output support 3 HDCP options: FORCE-1.4, FORCE-2.2, FORCE-OFF
User can select it by RS232 command
