| Highlight: | Seamless Switching Media Hub,2x HDMI2.0 Switching Media Hub |
||
|---|---|---|---|
Introduction
The seamless switching media hub has 2x HDMI2.0 Input ports,1x USB-C(video and audio only) Input port,
1x HDMI output port and 1x HDBaseT mirror output port.
It integrated with AC port, LAN port,5V/2A charging port. User can easily manage it via the front buttons,
RS232 commands.

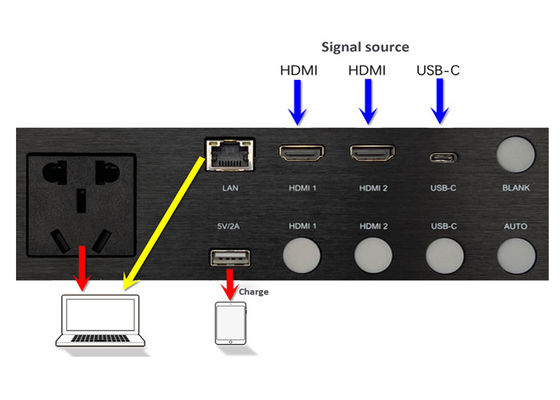

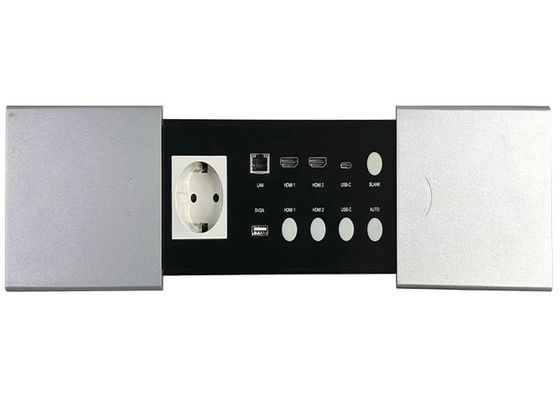

Front Panel
| NO. | Name | Description |
| 1 | AC Port | AC Port |
| 2 | 5V/2A | USB-A Port,Support 5V/2A Charging |
| 3 | HDMI 1 |
HDMI 1 Input signal selection button(with Led inside) Press and hold this button twice in a row for at least 3 seconds each time will change the output resolution to 3840*2160@60 |
| 4 | HDMI 2 |
HDMI2 Input signal selection button(with Led inside) Press and hold this button twice in a row for at least 3 seconds each time will change the output resolution to 3840*2160@50 Hz |
| 5 | USB-C |
USB-C Input signal selection button(with Led inside) Press and hold this button twice in a row for at least 3 seconds each time will change the output resolution to 3840*2160@30 Hz |
| 6 | AUTO |
Press AUTO button to enable or disable auto switching function (with Led inside) Press and hold this button twice in a row for at least 3 seconds each time will change the output resolution to 1080P@60 Hz |
| 7 | LAN | LAN port,directly connect to the LAN port on the Rear Panel |
| 8 | HDMI 1 | HDMI 1 Input port |
| 9 | HDMI 2 | HDMI 2 Input port |
| 10 | USB-C | USB-C ( video and audio only)input port |
| 11 | BLANK |
Press BLANK button to mute the video and audio output. The inside Led will be lit when BLANK function is activated. Press and hold this button twice in a row for at least 3 seconds each time will change the output resolution to 1080P@50Hz |

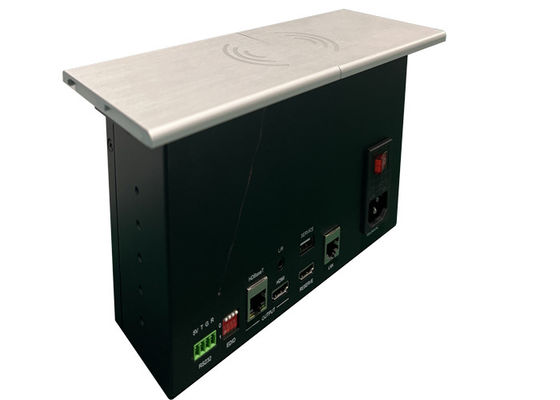

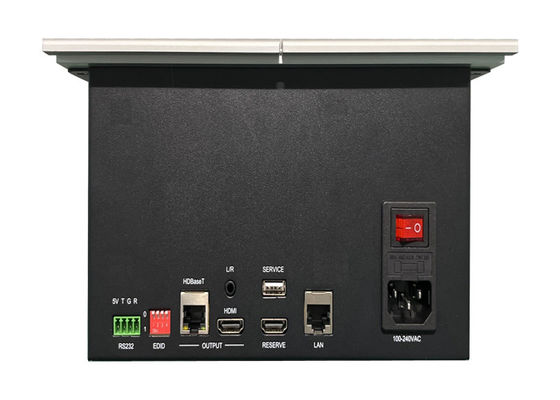

Rear Panel
| NO. | Name | Description |
| 1 | RS232 control |
Baud rate 9600, 8 data bits, 1 stop bit, no parity PIN 2 TX ( Hub → PC)
|
| 2 | EDID Switcher |
Select EDID mode See the definition of EDID SWITCH for details |
| 3 | HDBaseT out | HDBaseT output port |
| 4 | HDMI out | HDMI output port |
| 5 | RESERVE | |
| 6 | LAN | LAN port,directly connect to the LAN port on the Front Panel |
| 7 | 100-240VAC | AC Port,Input Voltage Range is 100-240V |
| 8 | L/R | 3.5mm LR audio output port |
| 9 | SERVICE | USB-A port,Used for firmware update |
