Product Details:
|
| Inputs: | 4x HDMI Type A [19-pin Female] | Outputs: | 4x HDMI Type A [19-pin Female] |
|---|---|---|---|
| HDMI Compliance: | HDMI 1.4 | HDCP Compliance: | HDCP 2.2 |
| Color Space: | RGB, YCbCr 4:4:4, YCbCr 4:2:2 | Color Depth: | 10-bit, 12-bit, 16-bit |
| Highlight: | 70m HDMI Matrix Switcher,100M HDMI Matrix Switcher,HDBaseT Output Port 4x4 Matrix Switcher |
||
Description:
• Allows 4 HDMI audio/video sources to be simultaneously distributed to up to 8 display devices;
• Simple plug-and-play for easy connection - no set up/drivers/software required;
• Supports High Definition resolutions up to 4K2K@60Hz(4:2:0),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz;
• Supports up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio);
• Supports up to 16 different EDID configurations;
• Supports unidirectional wideband IR control from display to source;
• HDBaseT output with POC supported;
• Flexible control through on-panel buttons, IR remote control, RS-232 or Ethernet protocol;
•70 Meters And 100 Meters 4x4 HDMI Matrix Switcher With HDBaseT Output Port
Specification:
| Technical | |
| HDMI Compliance | HDMI 2.0a |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 10.2 Gbps |
| Video Resolutions | up to 4K2K@60Hz(4:2:0),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit, 16-bit |
| Audio Formats | PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |

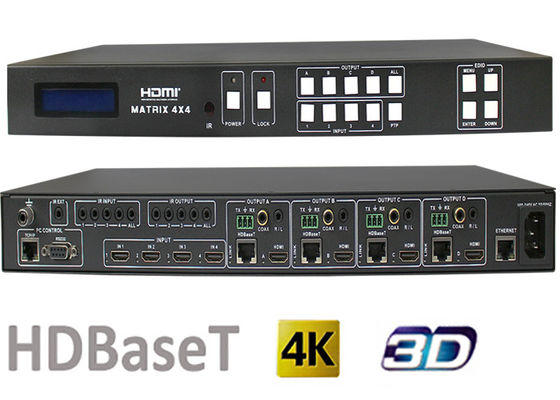

| Connections | |
| Inputs | 4x HDMI Type A [19-pin female] |
| 1x 9-pin D-sub [RS-232] | |
| 1x RJ45 [IP Control / LAN Serving] | |
| 6x 3.5mm Stereo Mini-jack [Infrared Receiver] | |
| Outputs | 4x HDMI Type A [19-pin female] |
| 4x Stereo Audio Out [3.5mm Stereo Mini-jack] | |
| 4x SPDIF Out [coaxial] | |
| 4x 3-pin Phoenix connector [RS-232] | |
| 4x RJ45 [HDMI & Propriety Data] | |
| 5x 3.5mm Stereo Mini-jack [Infrared Emitter] | |
| Mechanical | |
| Housing | Metal Enclosure |
| Dimensions | 440mm [W] x 200mm [D] x 45mm [H] |
| Net Weight | 1820g |
| Power Supply | AC100 - 240V 50/60Hz (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | 50W |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Product name | 70 Meters And 100 Meters 4x4 HDMI Matrix Switcher With HDBaseT Output Port |
Connection diagram :
70 Meters And 100 Meters 4x4 HDMI Matrix Switcher With HDBaseT Output Port
