Product Details:
|
| Interface: | HDM-A | HDMI Version: | HDMI1.4 |
|---|---|---|---|
| Bandwidth: | 300MHz | Resolution: | Upto4Kx2K@30Hz |
| Differential Impedance: | 100+5ohm | Size(mm): | 430(L)X220W)X44(H) |

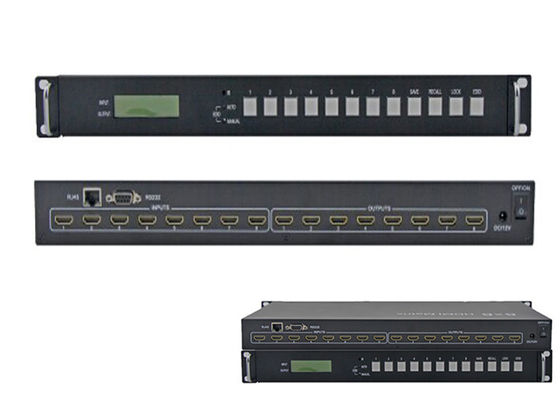

| Weight: | 3Kg | Product Name: | HDMI1.4 8x8 4Kx2k @ 30Hz 3D IR 1080P HDMI 8 IN 8 OUT Matrix Switcher |
| Highlight: | 4Kx2k HDMI 1.4 Matrix Switcher,8x8 HDMI 1.4 Matrix Switcher,IR HDMI Matrix Switcher |
||
Description:
Distributes any all or some of the 8 input sources to the Sink Follower. 1,2,3 …, or 8 source scan be displayed
simultaneously Compatible with full HD 480p, 576p, 720p, 1080i and 1080p/ 1080P@24Hz 3D, 4Kx2Ksource
LCM Panel to display the Input/Output routing information Support Button,Remoter,RS232,Ethernet Support
HDMI 1.4 4Kx2K Support EDID learning and parse.
Features:
1. Support HDMI 1.4 4Kx2K.
2. Support 3D video.
3. Support LCM display,Support RS232, ethernet, buttons,remoter control.
4. HDMI output with strong compatibility and reliability performance.
5.HDMI1.4 8x8 4Kx2k @ 30Hz 3D IR 1080P HDMI 8 IN 8 OUT Matrix Switcher.
Specification:
| Electrical parameters | |
| Interface | HDM-A |
| HDMI version | HDMI1.4 |
| Bandwidth | 300MHz |
| Resolution | Upto4Kx2K@30Hz |
| Clock Jitter | <0.15Tbit(1080p@60) |
| RiseTime | <0.3Tbit(20%--80% ) |
| RiseTime | <0.3Tbit(20%--80%) |
| Transmission Delay | 5ns |
| Amplitude | T.M.D.S+/-0.4Vpp |
| Differential impedance | 100+5ohm |
| RS232 control | |
| Baud rate and protocol | Baud rate:9600.data bit:8 stop bit: 1No parity checking |
| Power | |
| Max Consumption | 20W |
| Adapter | 12V/3A |
| Matrix Mechanical dim ensions | |
| Size(mm) | 430(L)X220W)X44(H) |
| Weight | 3Kg |
| Product name | HDMI1.4 8x8 4Kx2k @ 30Hz 3D IR 1080P HDMI 8 IN 8 OUT Matrix Switcher |
Using application picture :
