Product Details:
|
| HDMI Compliance: | HDMI 2.0 | HDCP Compliance: | HDCP 2.2 |
|---|---|---|---|
| Video Bandwidth: | 18Gbps | Input: | 4096x2160@60Hz |
| Output: | 3840x2160@30Hz | HDMI Amplitude: | T.M.D.S +/- 0.4Vpp |
| Highlight: | 8x8 HDMI 2.0 Matrix Switcher,Seamless HDMI 2.0 Matrix Switcher,4K 60Hz Video Matrix Switcher |
||
2.Specification:
| Technical | |
| HDMI Compliance | HDMI2.0 |
| HDCP Compliance | HDCP2.2 |
| Bandwidth | 18Gbps |
| Video Resolution | |
| Input | 800x600@60Hz,1024x768@60Hz, 1280x768@60Hz,1280x800@60Hz, 1280x1024@60Hz,1360x768@60Hz, 1366x768@60Hz,1400x1050@60Hz, 1440x900@60Hz,1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz. 480p,576p,720p,1920x1080i,1920x1080p, 3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz. |
| Output | 1920x1080@60Hz, 3840x2160@30Hz, 3840x2160@60Hz, 1280x720@60Hz, 1024x768@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1200@60Hz |
| HDMI Amplitude | T.M.D.S +/- 0.4Vpp |
| Differential impedance | 100±15ohm |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| RS232/Ethernet Control | |
| Baud rate and protocol | Baud rate: 9600, data bit: 8, stop bit: 1, no parity checking |
| Ethernet | IE10.0+, HTML5 |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 430mm (L) X 300mm (W) X 44mm (H) |
| Weight | 5kg |
| Power Supply | AC 110 - 240V |
| Power Consumption | 100W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | "-20°C ~ 70°C / -4°F ~ 158°F |
| Relative Humidity | 10%~50% RH (non-condensing) |

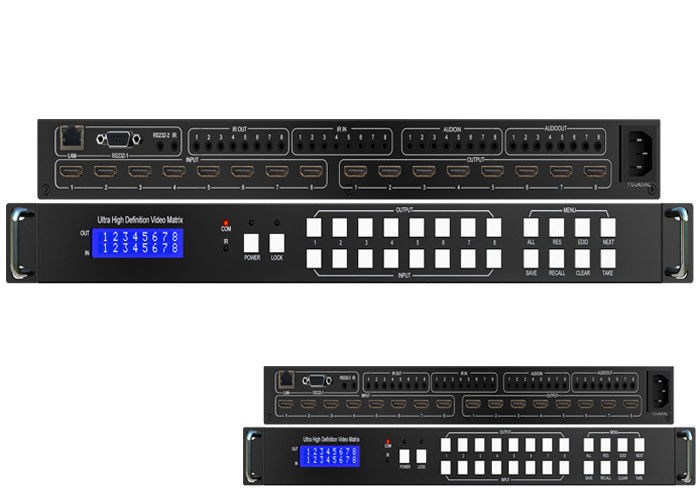

| Product name | 18Gbps 8x8 Seamless IR Audio UHD HDMI2.0 Matrix With 4K@60Hz 4:4:4 |
3.Using application diagram:
