Product Details:
|
| HDMI Compliance: | HDMI 2.0 | HDCP Compliance: | HDCP 2.2 |
|---|---|---|---|
| Video Bandwidth: | 18Gbps | Housing: | Metal Enclosure |
| Color: | Black | Weight: | 5 Kg |
| Highlight: | IR Audio HDMI 2.0 Matrix Switcher,UHD HDMI 2.0 Matrix Switcher,4x4 Video Matrix Switcher |
||
18Gbps 4x4 Seamless IR Audio UHD HDMI2.0 Matrix With 4K@60Hz 4:4:4
1.Package Contents
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K60 4:4:4 |
| Color Space | RGB, YCbCr 4:4:4/4:2:2 |
| HDMI Amplitude | T.M.D.S +/- 0.4Vpp |
| Differential Impedance | 100±15ohm |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| RS232/Ethernet Control | |
| Baud rate and Protocol | Baud rate: 9600, data bit: 8 Stop bit: 1, no parity checking |
| Ethernet | IE10.0+,HTML5 |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 430mm (W)×220mm (D)×44mm (H) |
| Weight | 5 kg |
| Power Supply | AC 110 - 240V |
| Power Consumption | 60W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | "-20°C ~ 70°C / -4°F ~ 158°F |
| Relative Humidity | 10%~50% RH (non-condensing) |

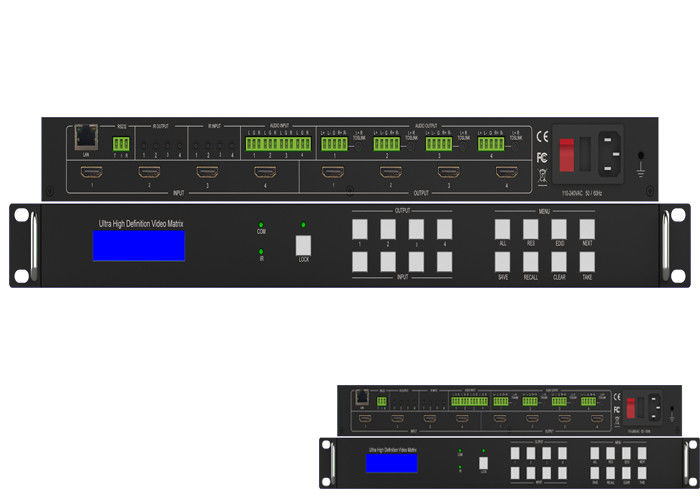

| Product name | 18Gbps 4x4 Seamless IR Audio UHD HDMI2.0 Matrix With 4K@60Hz 4:4:4 |
Operation controls and functions:
