Product Details:
|
| Wall Modes: | 2x2 ,2x3,3x2,4x1,4x2,3x3,etc, | Controller: | Remote, Button Key, RS232 Serial Port |
|---|---|---|---|
| HDMI Output: | 1024*768@60hz,720P@60Hz,1080P@60Hz | Input Ports: | 1xHDMI Input,1xDVI Input,1xVGA Input,1xAV Input,1xUSB |
| Output Ports: | 9xHDMI Outputs | AV Input Standard: | PAL,NTSC |
| Product Name:: | 1 In 9 Out HDMI LCD Video Wall Controller With 2x2 2x3 3x2 4x1 4x2 3x3 And RoHS CE FCC | ||
| Highlight: | 3x3 LCD Video Wall Controller,3x2 LCD Video Wall Controller,2x3 HDMI Video Controller |
||

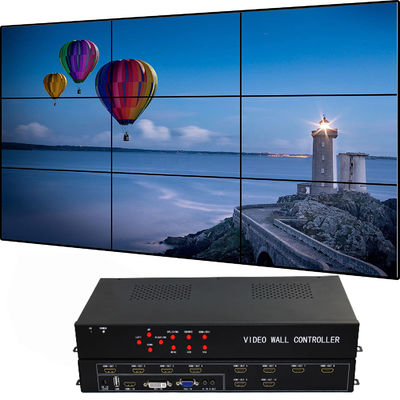

1 In 9 Out HDMI LCD Video Wall Controller With 2x2 2x3 3x2 4x1 4x2 3x3 And RoHS CE FCC
1. Overview:
2.Specification of the 1 In 9 Out HDMI LCD Video Wall Controller:
|
Item |
Specification |
|
HDMI input |
|
|
Interface |
HDMI(support HDCP1.3 and DVI1.0) |
|
Resolution |
Up to 1920*1080@60Hz |
|
Color |
24bit,16.77M |
|
DVI input |
|
|
Interface |
DVI(support DVI1.0) |
|
Resolution |
Up to 1920*1080@60Hz |
|
Color |
24bit,16.77M |
|
VGA input |
|
|
Interface |
DB15 |
|
Resolution |
800*600 to 1920*1080@60Hz |
|
AV input |
|
|
Interface |
RCA |
|
Identification |
Auto |
|
Standard |
PAL,NTSC |
|
USB |
|
|
Video |
RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution up to 1080P |
|
Audio |
MP3,WMA,FLAC and so on |
|
Picture |
JPG,BMP,PNG |
|
Text |
TXT |
|
Audio in |
Fit for VGA video |
|
Audio output |
Fit for output video |
|
HDMI output |
1024*768@60hz,720P@60Hz,1080P@60Hz |
|
Controller |
Remote, button key, RS232 serial port |
3, System Topology of the 1 In 9 Out HDMI LCD Video Wall Controller With 2x2 2x3 3x2 4x1 4x2 3x3
And RoHS CE FCC:
