Product Details:
|
| Input Ports: | HDMI,DVI,VGA,AV,USB | Picture: | JPG、BMP、PNG |
|---|---|---|---|
| HDMI Output: | 1024*768@60hz,720P@60Hz,1080P@60Hz | Control Mode: | RS232,Remote ,case Key |
| Power: | 20W | Product Name: | 1 In 8 Out / 1 In 9 Out HDMI 3x3 LCD Video TV Wall Controller With 9 Screens |
| Highlight: | 3x3 TV Video Wall Controller,20W TV Video Wall Controller,20W 3x3 Video Wall Controller |
||
1 In 8 Out / 1 In 9 Out HDMI 3x3 LCD Video TV Wall Controller With 9 Screens
Description:
This premium 1 In 8 Out / 1 In 9 Out HDMI 3x3 LCD Video TV Wall Controller With 9 Screens
offers a variety of input, control, and setting options that will allow you to easily create and control
almost any type of Video wall and/or Digital signage display you can think of. With all its features
such as 180 degree rotation and bezel adjustment you can create unique and eye catching
Video Walls that are sure to catch the attention of anyone who see them.
FEATURES OF LCD Video TV Wall Controller:
1.Support USB/VGA /DVI / HDMI input.
2.Support 3x3 video wall, cascading to create 3x4,4x5, 5X6, and max 10x10 video wall.
3.Support output image 180° rotation.
4.Supports Edge Adjustment
5.Support EDID management:Two default EDID: 4K30HZ, 1080P.
6.Support HDCP1.4.
Specification:
| Name | Specification |
| Input signal | |
| VGA |
HD15 interface and link with 1 audio interface of 3.5 Support 640*480/85HZ to 1920*1200/60HZ |
| HDMI | HDMI 1.4(HDCP 1.3) DVI 1.0 ,HDMI embed audio |
| Video | Automatic identification the syetem of NTSC,PAL and SECAM,link with 1 audio interface of 3.5 |
| USB |
Standard interface of 2.0,can insert U disk,embed audio; Support video,image,MP3,TXT |
| Output signal | |
| HDMI interface |
4 HDMI output,support joint pattern of 2*2,1*4,4*1; Support customizing output signal of 2 to 25; 1920*1080P/60HZ,1280*720,60HZ; |
| Audio | 3.5 Audio interface,support left and right channels and stereo,AV signal switch synchronously |
| others | |
| Control mode | RS232,Remote ,case key |
| Power supply | AC: 100 to 240 V |
| Joint pattern | Quad standard joint,single machine customize joint of 2 to 25 |
| Power | 20W |
| Case size | |
| Dimensions(1U) | 1U 19 inch standard crate,420mm(L)x243mm(W)x60mm(H). |
| Weight(1U) | 2.5KG |
| Product name | 1 In 8 Out / 1 In 9 Out HDMI 3x3 LCD Video TV Wall Controller With 9 Screens |

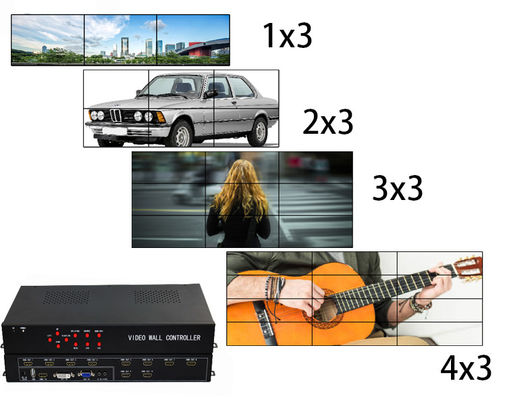

USING DIAGRAMS OF THE 1 In 8 Out / 1 In 9 Out HDMI 3x3 LCD Video TV Wall Controller With 9 Screens:
