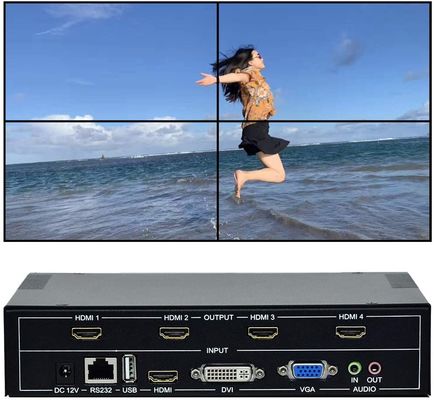

1x2 1x3 2x1 3x1 video wall controller 2x2 3X3 seamless lcd video wall controller
Features:
1.Edge mask
Past the edge mask processing, the image without deformation, stretching, more natural and realistic.
2. U disk Play
It can play and control the video, pictures, MP3, TXT documents via USB input.
3.Control method of the 1x2 1x3 2x1 3x1 video wall controller 2x2 3X3 seamless lcd video wall controller
Support buttons, remote controller, RS232 control software
4.Subtitle overlay
Support overlay subtitle words on the video via RS232 control software, you can setup the subtitle position,
speed, size, color.
Specifications of the 1x2 1x3 2x1 3x1 video wall controller 2x2 3X3 seamless lcd video wall controller :
| Item |
Specification |
| HDMI input |
|
| Interface |
HDMI(support HDCP1.3 and DVI1.0) |
| Resolution |
Up to 1920*1080@60Hz |
| Color |
24bit,16.77M |
| DVI input |
|
| Interface |
DVI(support DVI1.0) |
| Resolution |
Up to 1920*1080@60Hz |
| Color |
24bit,16.77M |
| VGA input |
|
| Interface |
DB15 |
| Resolution |
800*600 to 1920*1080@60Hz |
| AV input |
|
| Interface |
RCA |
| Identification |
Auto |
| Standard |
PAL,NTSC |
| USB |
|
| Video |
RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution up to 1080P |
| Audio |
MP3,WMA,FLAC and so on |
| Picture |
JPG,BMP,PNG |
| Text |
TXT |
| Audio in |
Fit for VGA video |
| Audio output |
Fit for output video |
| HDMI output |
1024*768@60hz,720P@60Hz,1080P@60Hz |
| Controller |
Remote, button key, RS232 serial port |
| Power |
Input:DC 12V3A |
| Dimension (package) |
4 Port: 340mm(L)x200mm(W)x60mm(H)
5~10 Port: 420mm(L)x243mm(W)x60mm(H)
|
| Weight |
4 port: 1.6 Kg
5~10 port: 2.5 KG
|
FAQ for 1x2 1x3 2x1 3x1 video wall controller 2x2 3X3 seamless lcd video wall controller :
Q: I have 4 displays (2x2). To maximize a window, do I have to manually click and drag it to cover
all 4 displays?
A: This Device built in OSD to do all kind of settings.
When you set 2x2,It will auto display the video source to cover the 4 displays.
Q: Hola, quisiera saber que software puedo usar con este equipo para trabajarlo por el protocolo RS232 .
A: We have a software to install on PC to connect RS232.
This RS232 function same like Remote controller or Buttons on products pannel.
So nomorlly don't use RS232 function.
The other useful function for RS232 function is that can add TXT scrolling tile for display.
Q: Does this come with a power cord and a remote control?
A: Yes, it come with power supply and remote control.
